Fuel Pressure Regulator: Components: Illustration

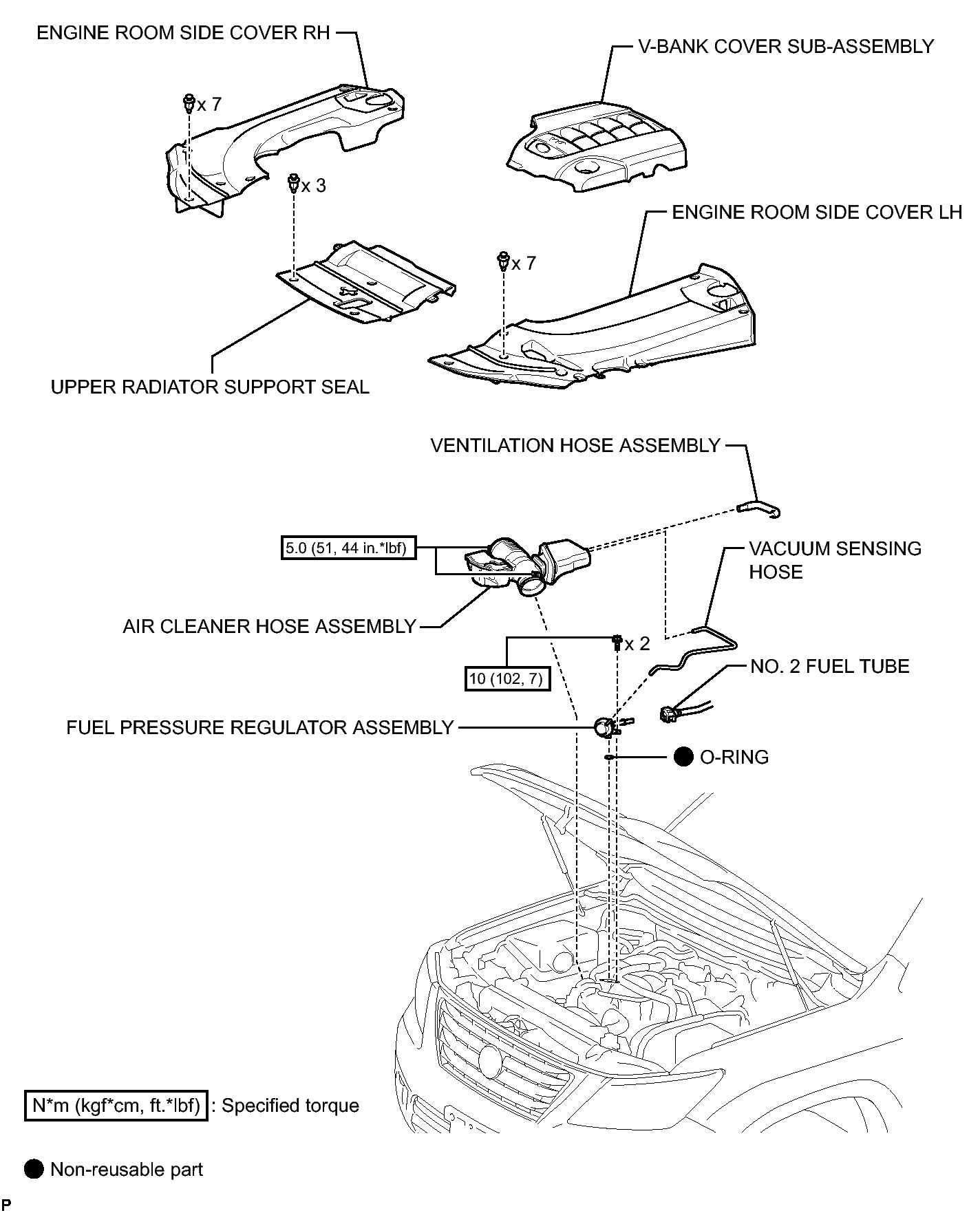

Fig 1: Identifying Fuel Pressure Regulator Replacement Components With Torque Specifications

GTY129190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
