System Diagram

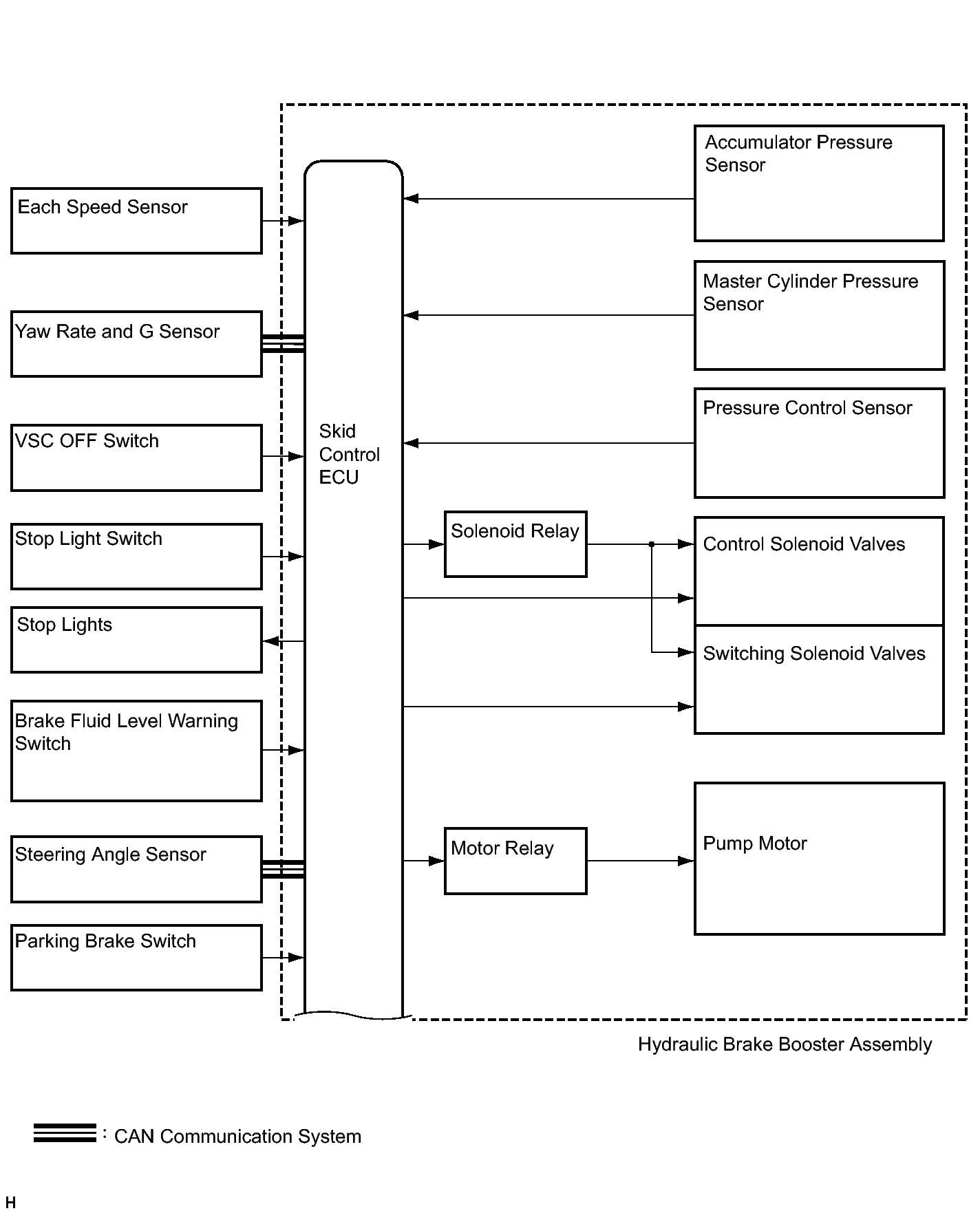

Fig 1: vehicle Stability Control System Diagram (1 Of 4)
GTY359833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: vehicle Stability Control System Diagram (2 Of 4)
GTY284338Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

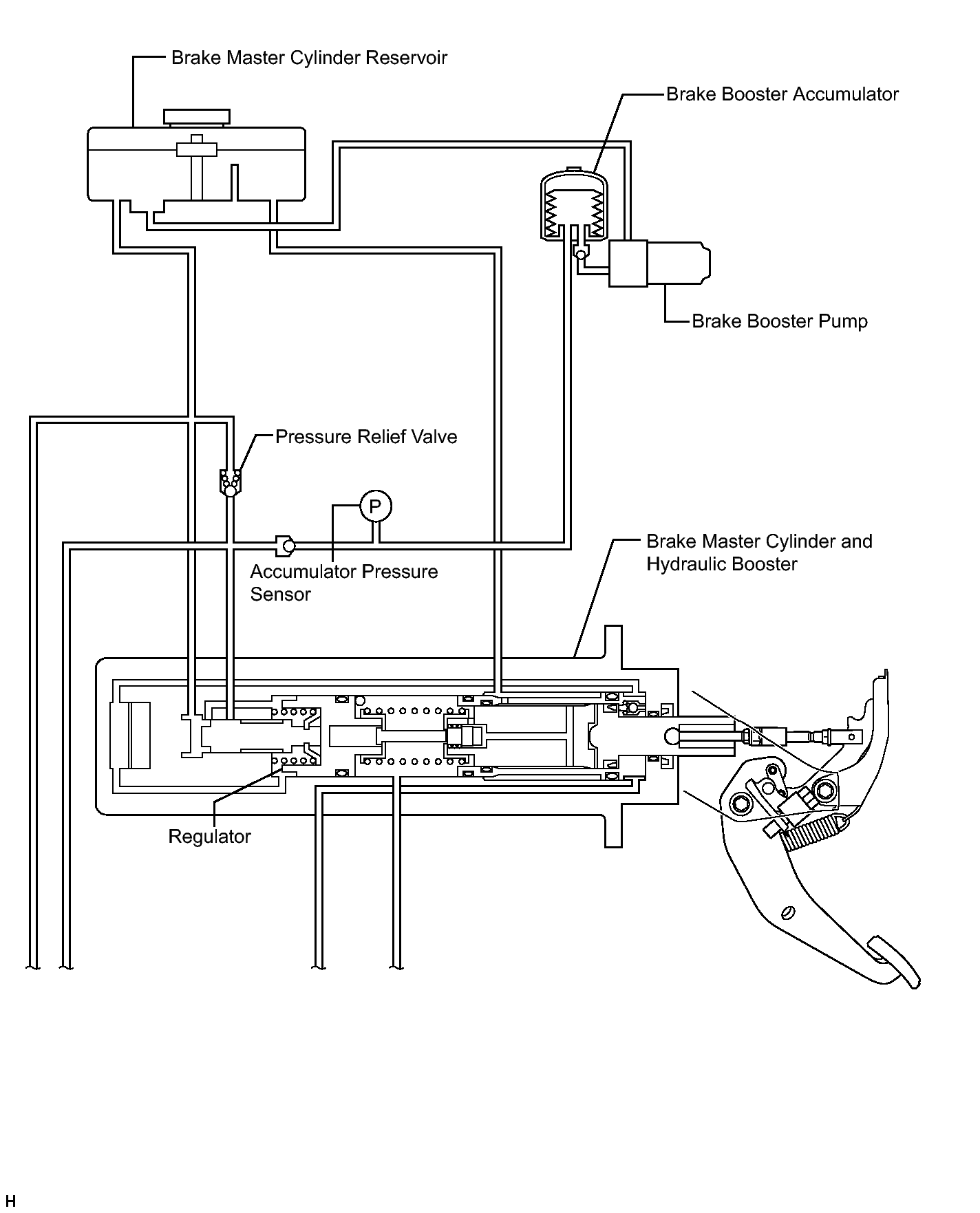

Fig 3: Vehicle Stability Control System Diagram (3 Of 4)
GTY360790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

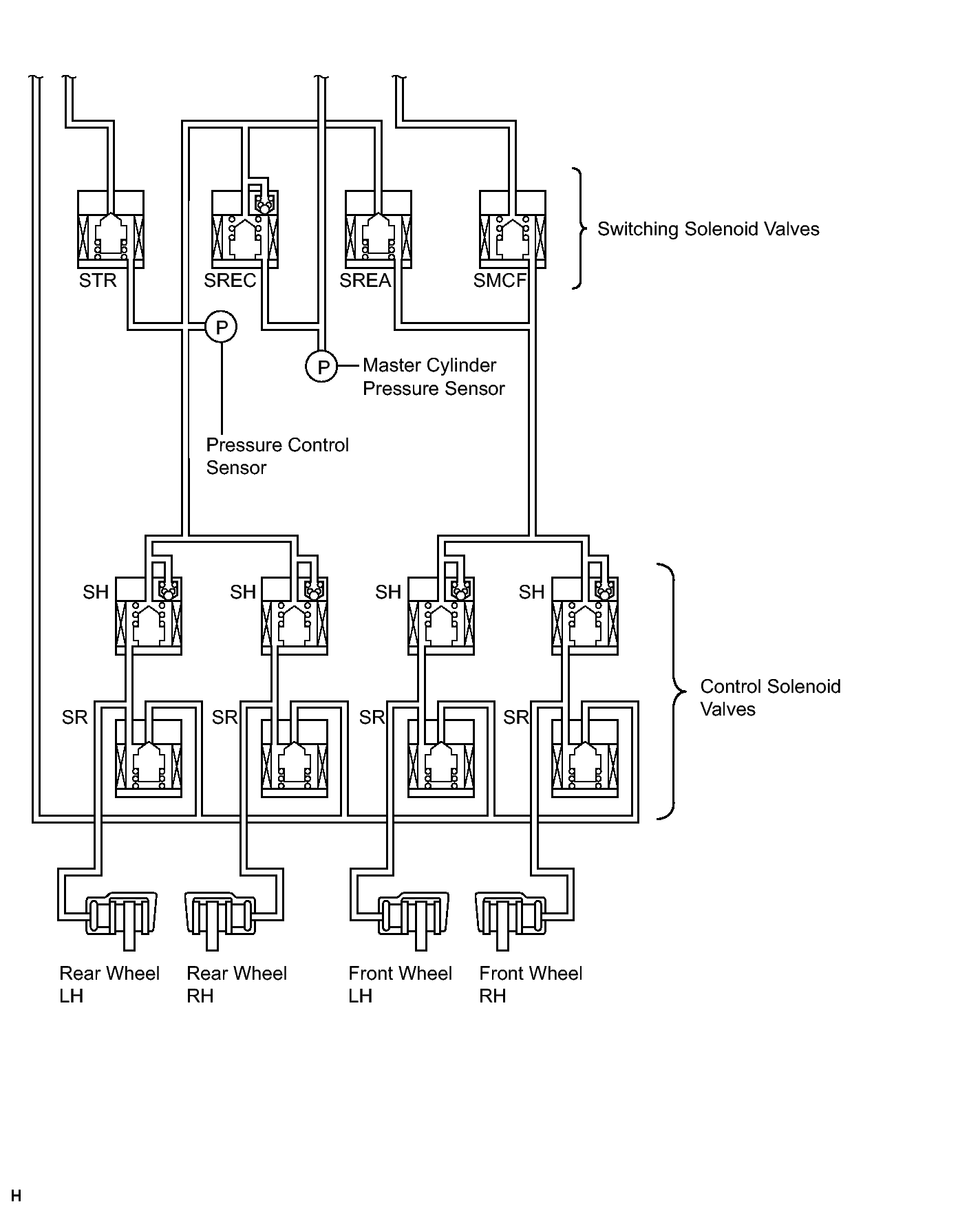

Fig 4: Vehicle Stability Control System Diagram (4 Of 4)
GTY360357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method
ECM Skid control ECU Shift position signal CAN communication system
ECM Skid control ECU A/T rotation signal CAN communication system
ECM Skid control ECU Throttle position signal CAN communication system
ECM Skid control ECU Engine speed signal CAN communication system
ECM Skid control ECU Accelerator pedal position signal CAN communication system
ECM Skid control ECU Engine torque signal CAN communication system
Skid control ECU ECM Yaw rate and G signal CAN communication system
Skid control ECU ECM Steering angle signal CAN communication system
Skid control ECU ECM Engine torque request signal CAN communication system
Skid control ECU Suspension control ECU Yaw rate and G signal CAN communication system
Skid control ECU Suspension control ECU Steering angle signal CAN communication system
Skid control ECU Seat belt control ECU Yaw rate and G signal CAN communication system
Skid control ECU Seat belt control ECU Steering angle signal CAN communication system
Four wheel drive control ECU Skid control ECU L4 signal CAN communication system
Four wheel drive control ECU Skid control ECU Center differential lock signal CAN communication system
Skid control ECU Four wheel drive control ECU Yaw rate and G signal CAN communication system
Skid control ECU Four wheel drive control ECU Steering angle signal CAN communication system
Steering control ECU Skid control ECU Steering actuator angle signal CAN communication system


Fig 1: Vehicle Stability Control System Diagram (1 Of 4)
GTY359833Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

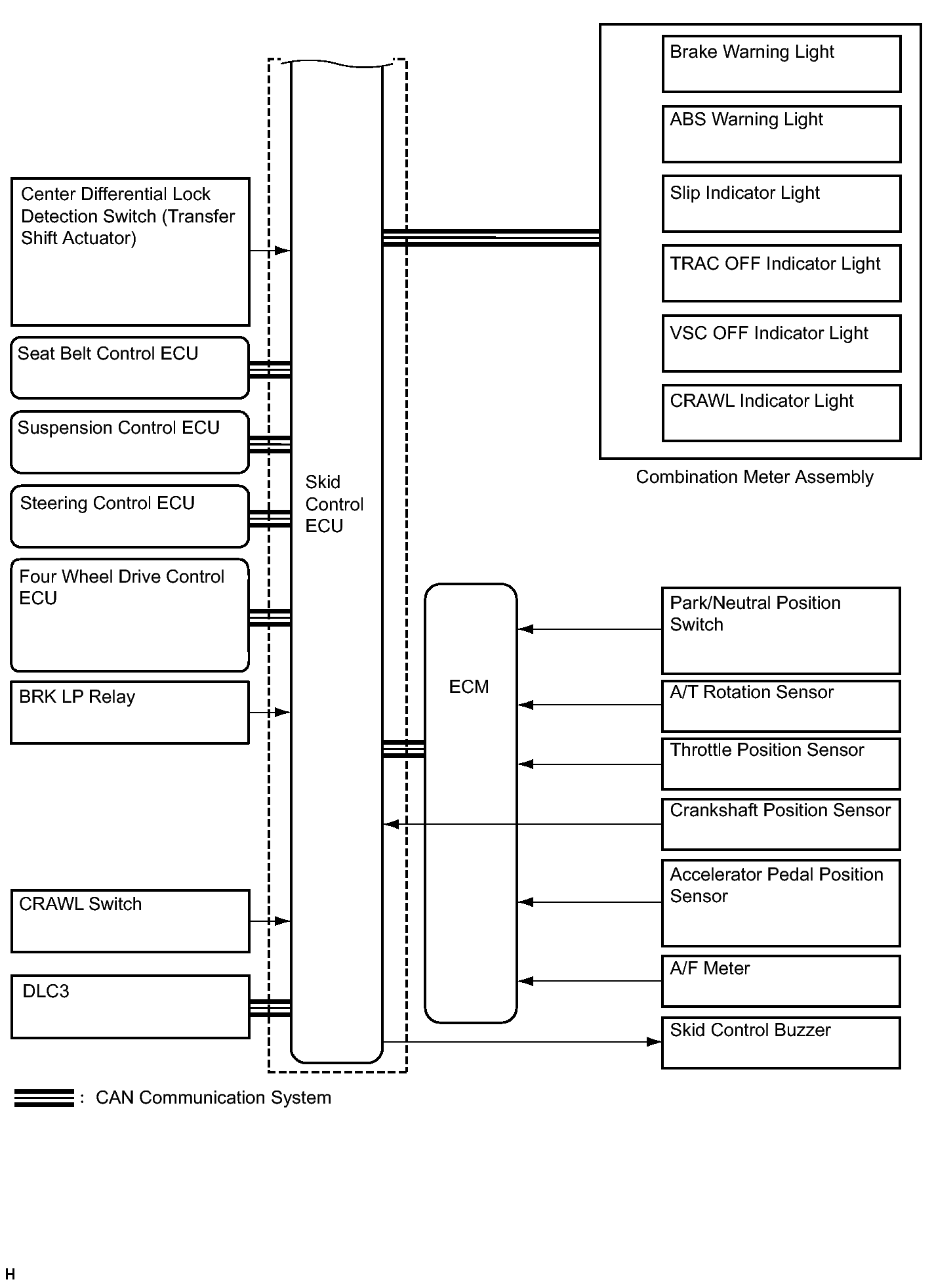

Fig 2: Vehicle Stability Control System Diagram (2 Of 4)
GTY349074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Vehicle Stability Control System Diagram (3 Of 4)
GTY360790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 4: Vehicle Stability Control System Diagram (4 Of 4)
GTY360357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Transmitting ECU (Transmitter) Receiving ECU Signal Communication Method
ECM Skid control ECU Shift position signal CAN communication system
ECM Skid control ECU A/T speed signal CAN communication system
ECM Skid control ECU Throttle position signal CAN communication system
ECM Skid control ECU Engine speed signal CAN communication system
ECM Skid control ECU Accelerator pedal position signal CAN communication system
ECM Skid control ECU Engine torque signal CAN communication system
Skid control ECU ECM Yaw rate and G signal CAN communication system
Skid control ECU ECM Steering angle signal CAN communication system
Skid control ECU ECM Engine torque request signal CAN communication system
Skid control ECU Suspension control ECU Yaw rate and G signal CAN communication system
Skid control ECU Suspension control ECU Steering angle signal CAN communication system
Skid control ECU Seat belt control ECU Yaw rate and G signal CAN communication system
Skid control ECU Seat belt control ECU Steering angle signal CAN communication system
Four wheel drive control ECU Skid control ECU L4 signal CAN communication system
Four wheel drive control ECU Skid control ECU Center differential lock signal CAN communication system
Skid control ECU Four wheel drive control ECU Yaw rate and G signal CAN communication system
Skid control ECU Four wheel drive control ECU Steering angle signal CAN communication system
Steering control ECU Skid control ECU Steering actuator angle signal CAN communication system
