Fuel Tank Pressure Sensor: Components: Illustration

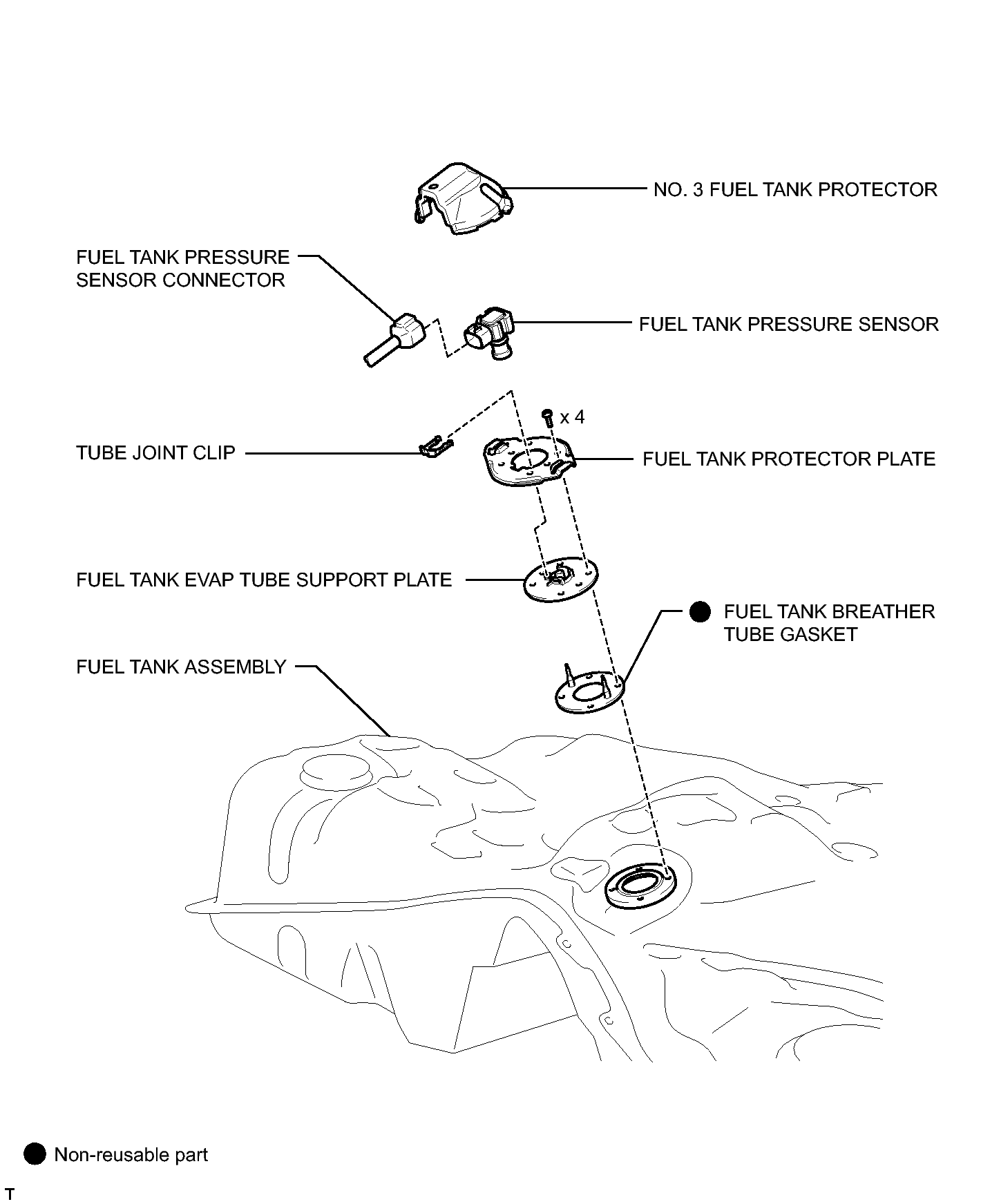

Fig 1: Identifying Fuel Tank Pressure Sensor Replacement Components

GTY148282

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
