Driver Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

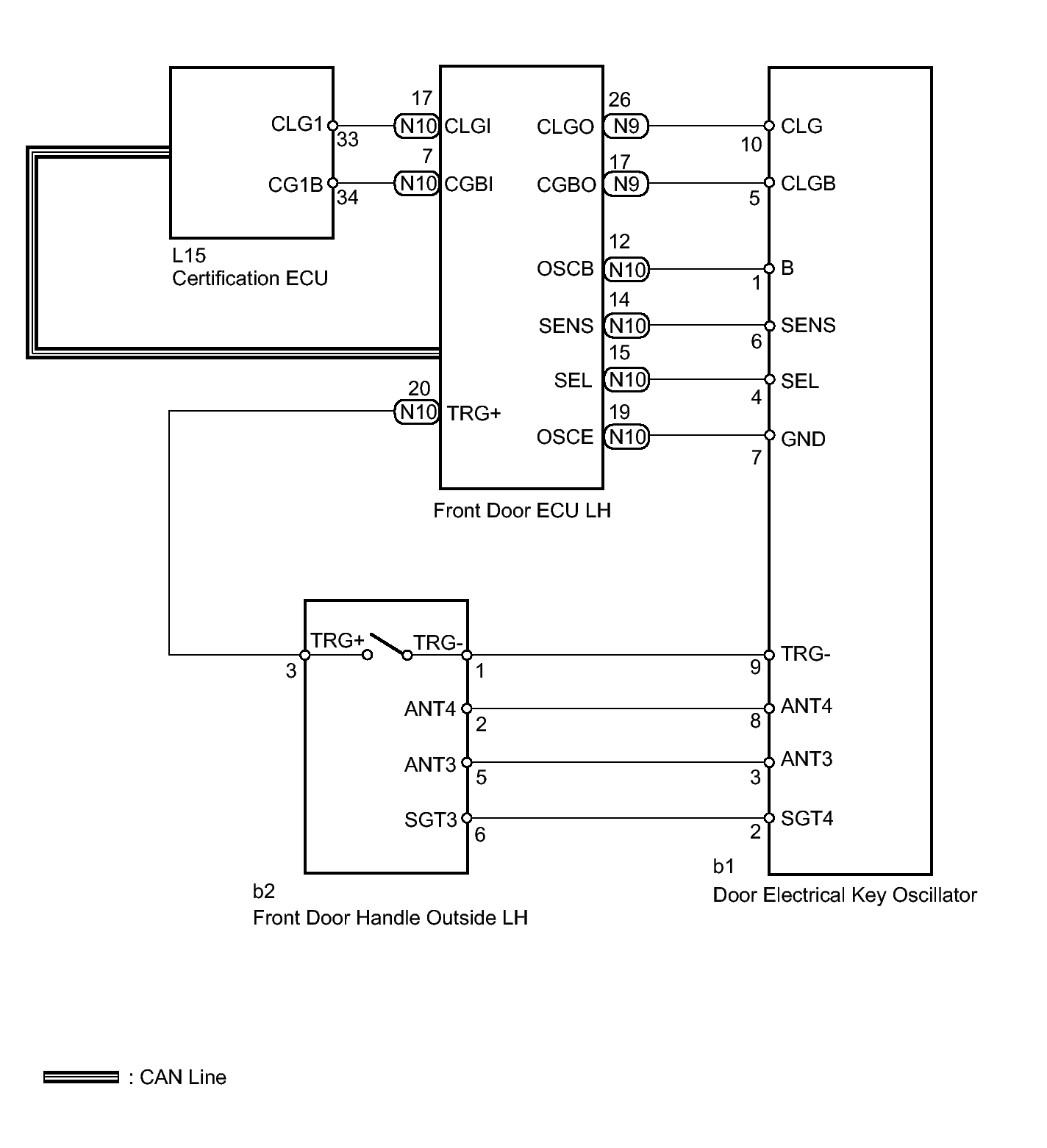

Fig 1: Driver Side Door Entry Lock and Unlock Functions Wiring Diagram

GTY138252

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
