MIL Circuit: Procedure
- CHECK THAT MIL IS ILLUMINATED
- Perform troubleshooting in accordance with the chart below.
Result
Condition Proceed to MIL remains on A MIL is not illuminated B
B → See step 5
A: Go to next step
- Perform troubleshooting in accordance with the chart below.
- CHECK IF MIL TURNS OFF
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG) and turn the Techstream on.
- Check if DTCs have been stored. Refer to DTC CHECK / CLEAR . If DTCs are present, write them down.
- Clear the DTCs. Refer to DTC CHECK / CLEAR .
- Check that the MIL turns off.
OK
MIL turns off.
OK → See step 8
NG: Go to next step
- CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN WIRE HARNESS)
- Disconnect the A14 ECM connector.
- Turn the engine switch on (IG).
- Check that the MIL is not illuminated.
OK
MIL is not illuminated.
OK → See step 9
NG: Go to next step

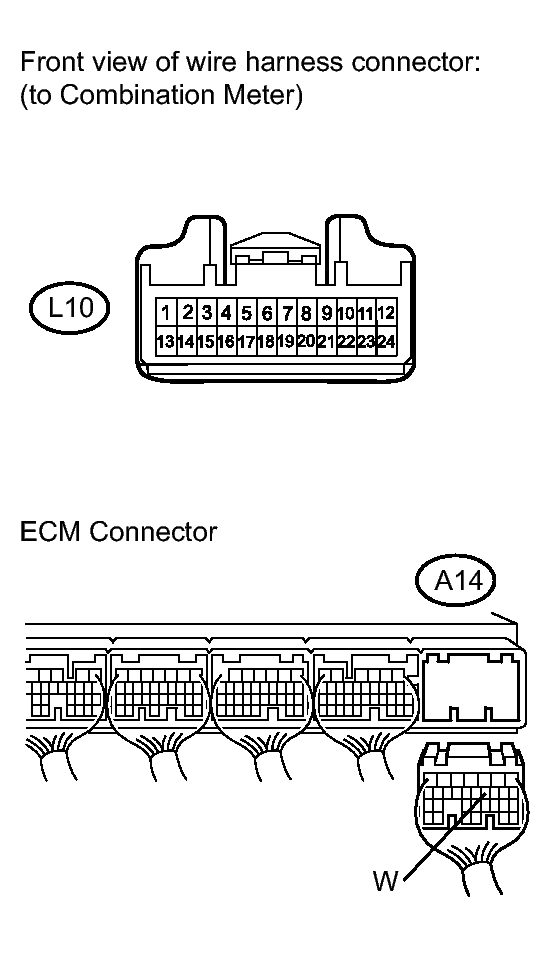

- CHECK HARNESS AND CONNECTOR (COMBINATION METER - ECM)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the L10 combination meter connector.
- Disconnect the A14 ECM connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance (check for open)
Tester Connection Condition Specified Condition L10-11 (EFI) - A14-11 (W) Always Below 1 Ω Standard resistance (check for short)
Tester Connection Condition Specified Condition L10-11 (EFI) or A14-11 (W) - Body ground Always 10 kΩ or higher
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 10
- CHECK THAT MIL IS ILLUMINATED
- Check if the MIL is illuminated when turning the engine switch on (IG).
OK
MIL is illuminated.
OK → SYSTEM OK
NG: Go to next step
- Check if the MIL is illuminated when turning the engine switch on (IG).
- CHECK THAT ENGINE STARTS
- Turn the engine switch on (IG).
- Start the engine.
Result
Result Proceed to Engine starts A Engine does not start* B HINT:
*: The Techstream cannot communicate with the ECM.
B → See step 11
A: Go to next step
- INSPECT COMBINATION METER ASSEMBLY (MIL CIRCUIT)
- See the combination meter troubleshooting procedure. Refer to HOW TO PROCEED WITH TROUBLESHOOTING .
NG → See step 12
OK → CHECK AND REPAIR HARNESS OR CONNECTOR (COMBINATION METER - ECM)
- REPAIR CIRCUITS INDICATED BY OUTPUT DTCS. Refer to DIAGNOSTIC TROUBLE CODE CHART
- REPLACE ECM. Refer to REMOVAL
- REPAIR OR REPLACE COMBINATION METER. Refer to REMOVAL
- GO TO VC OUTPUT CIRCUIT. Refer to VC Output Circuit
- REPAIR OR REPLACE COMBINATION METER ASSEMBLY. Refer to REMOVAL
