Cruise Control System (Diagnostics - Introduction)
>>
Cruise Control System
>>
System Diagram
>>
System Diagram
System Diagram

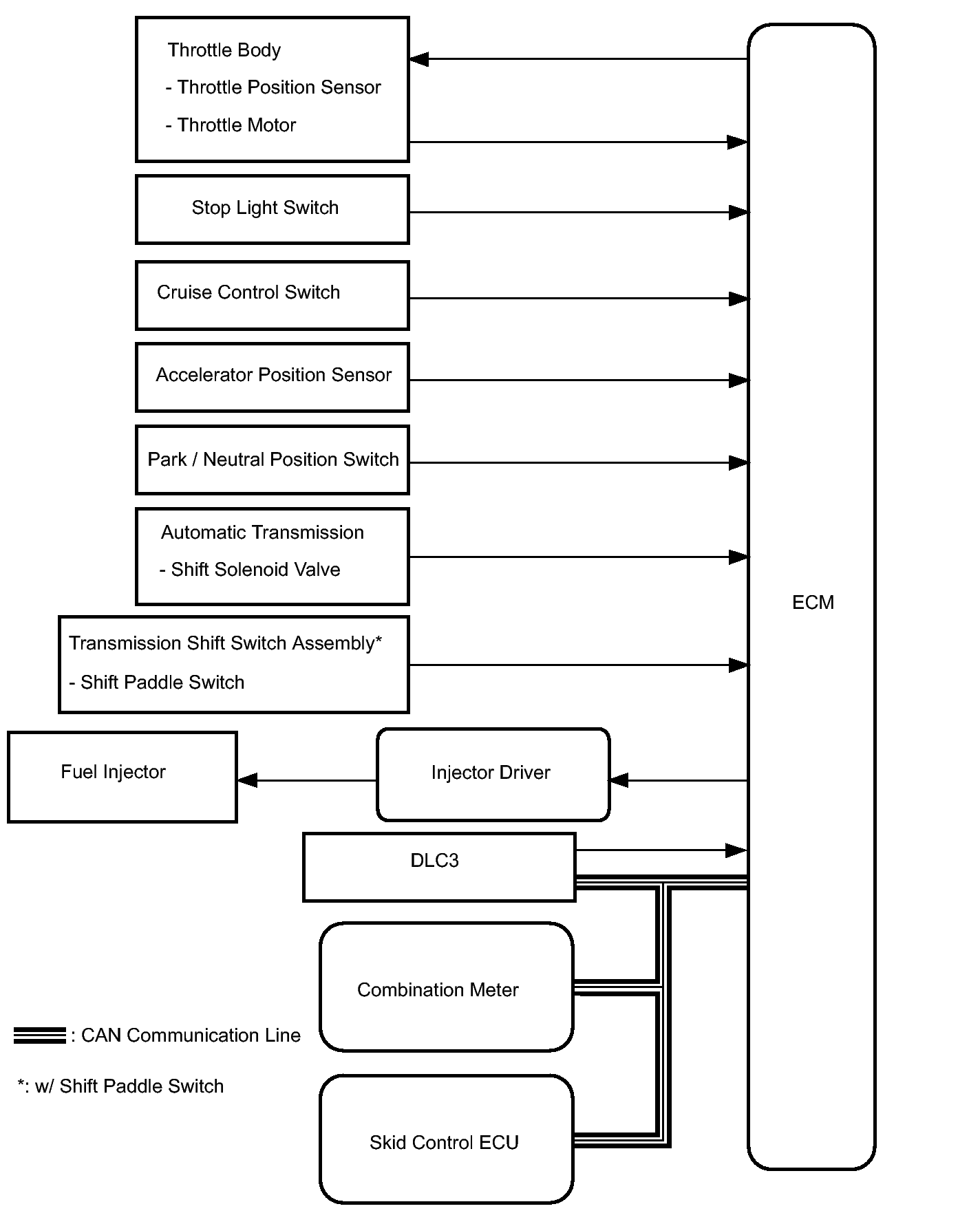

Fig 1: Identifying Cruise Control System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE
Sender
Receiver
Signal
Line
Combination meter
ECM
CRUISE main indicator light signal
CAN
Skid control ECU
ECM
Vehicle speed signal
CAN
