Components Location: Illustration

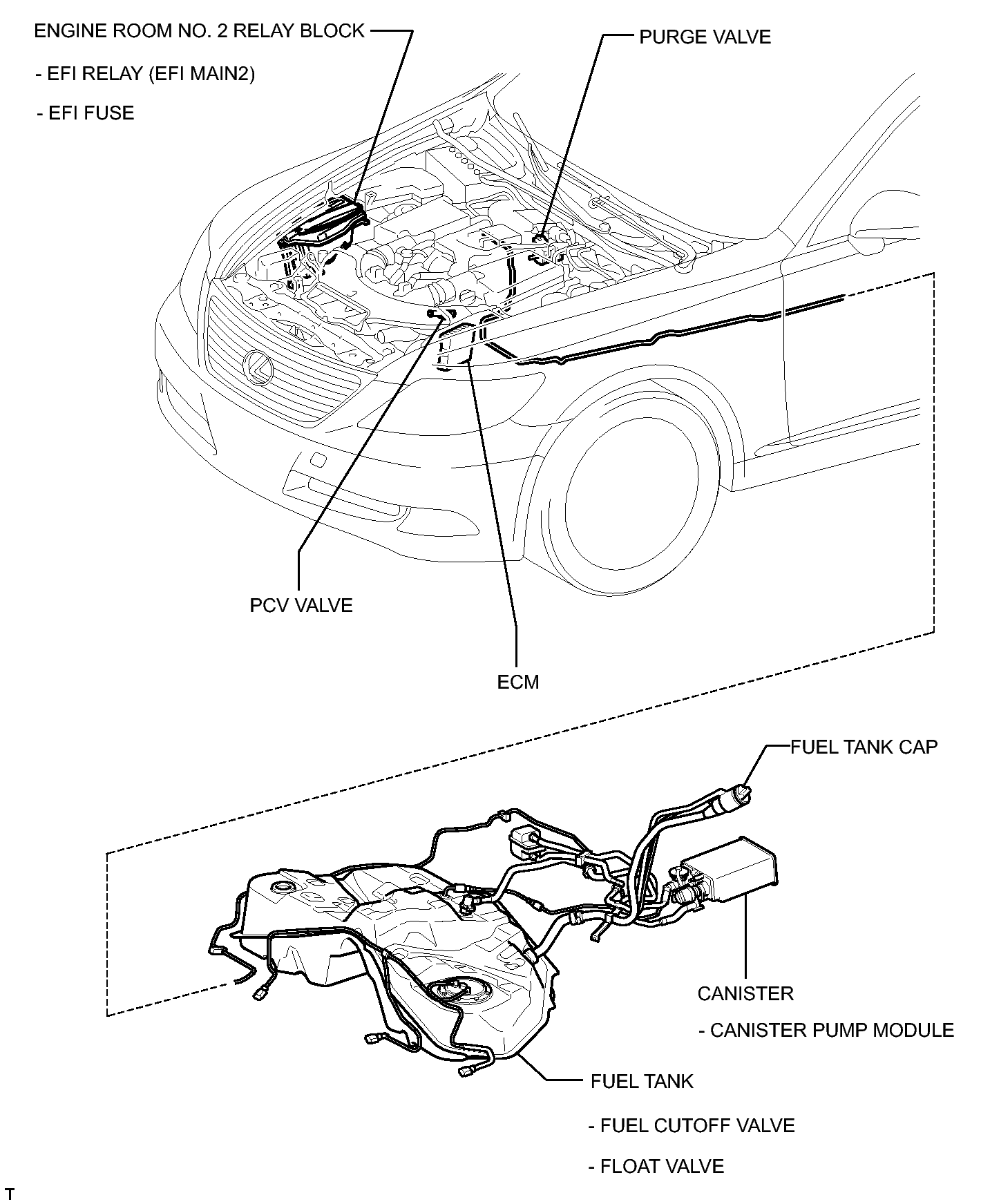

Fig 1: Identifying Emission Control System Components Location

GTY287827

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
