Rear Power Window LH does not Operate with Rear Power Window Switch LH: Wiring Diagram

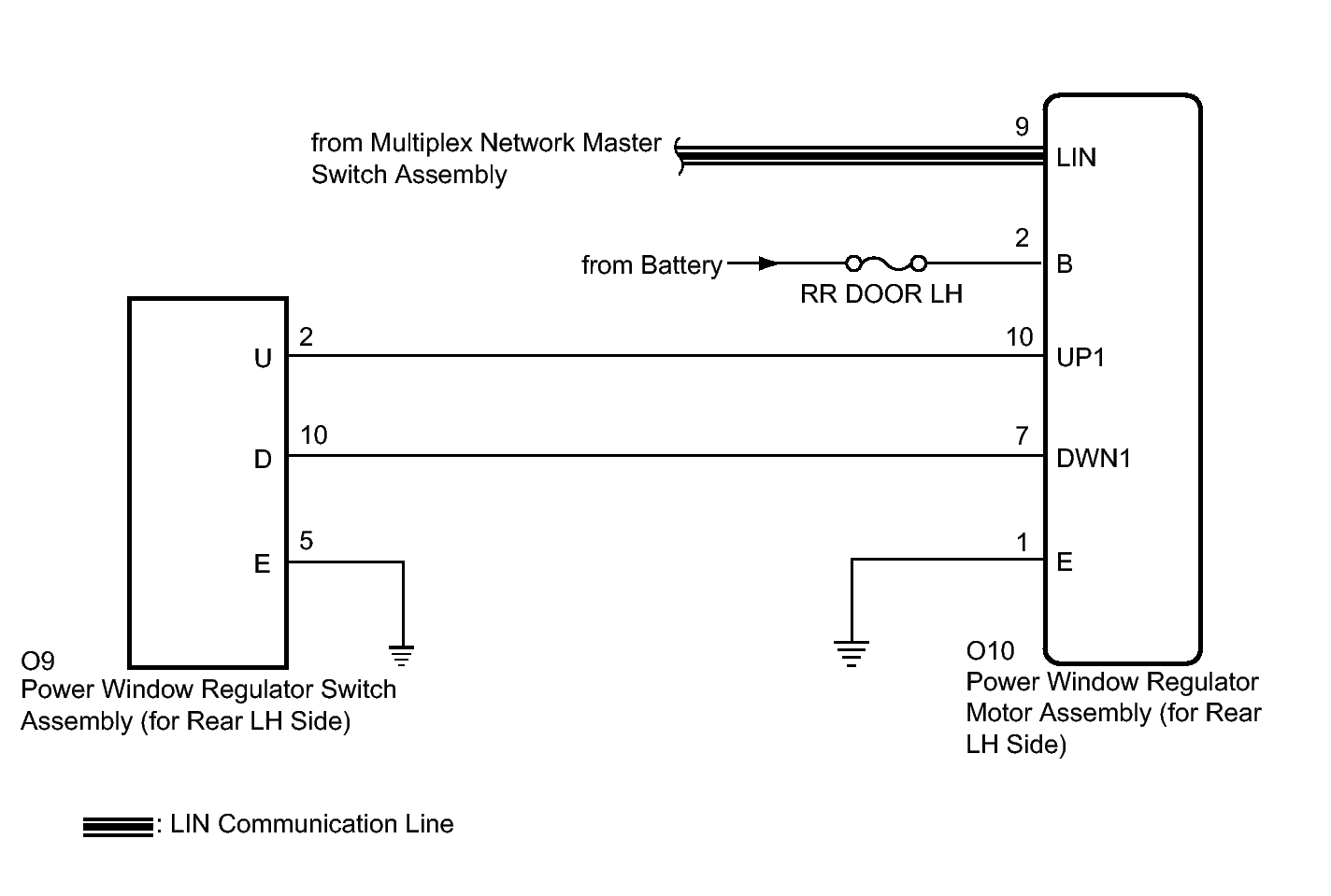

Fig 1: Rear LH Side Power Window Regulator Motor & Rear LH Side Power Window Regulator Switch -- Wiring Diagram
GTY134278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
