On-Vehicle Inspection

WARNING: This page is about a different car, the 2011 Lexus IS 350C. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSPECT INTAKE SYSTEM
    1. Check that there are no vacuum leaks at the points shown in the illustration.

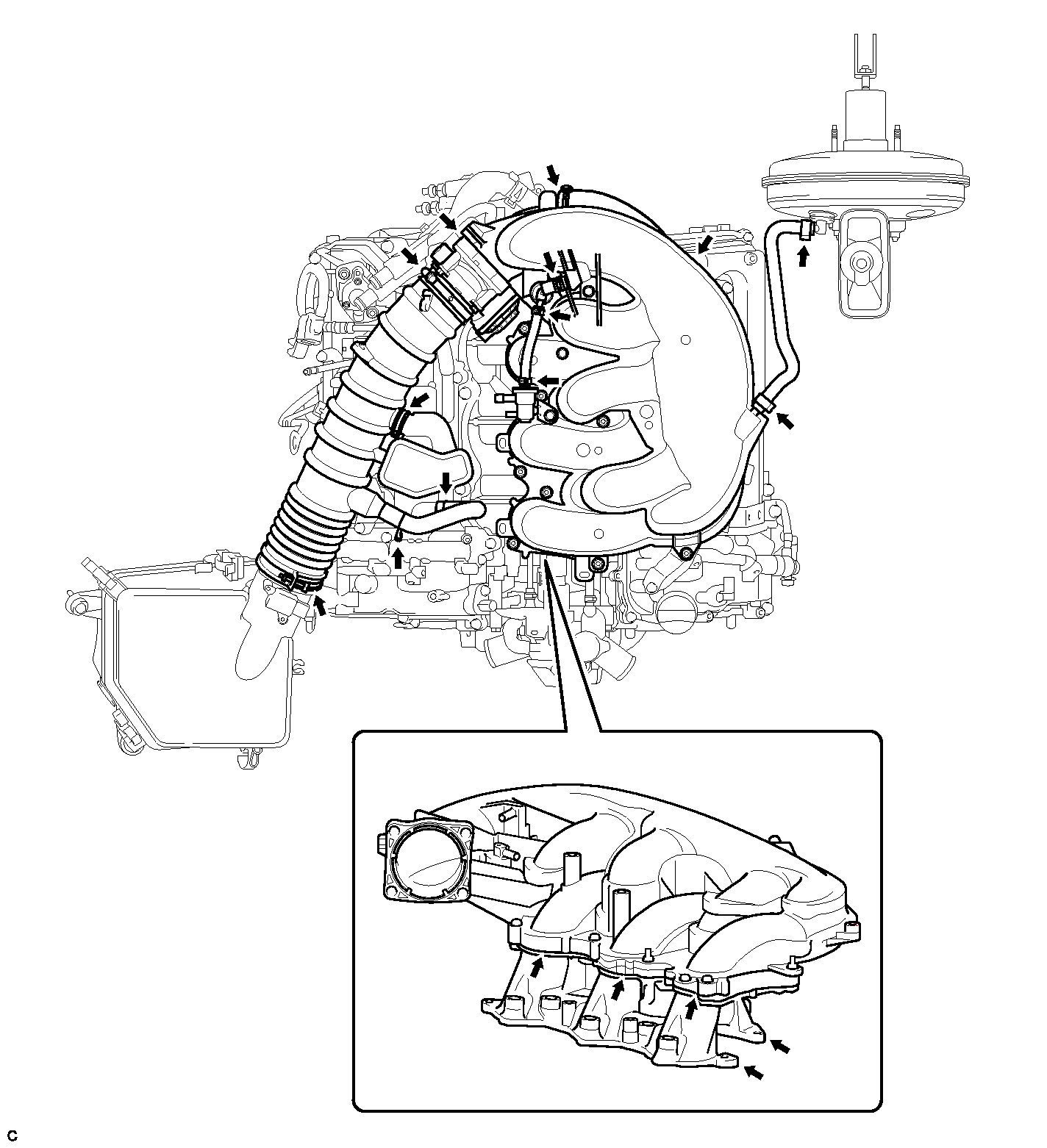

      Fig 1: Identifying Possible Vacuum Leak Points
      GTY260873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
