System Diagram

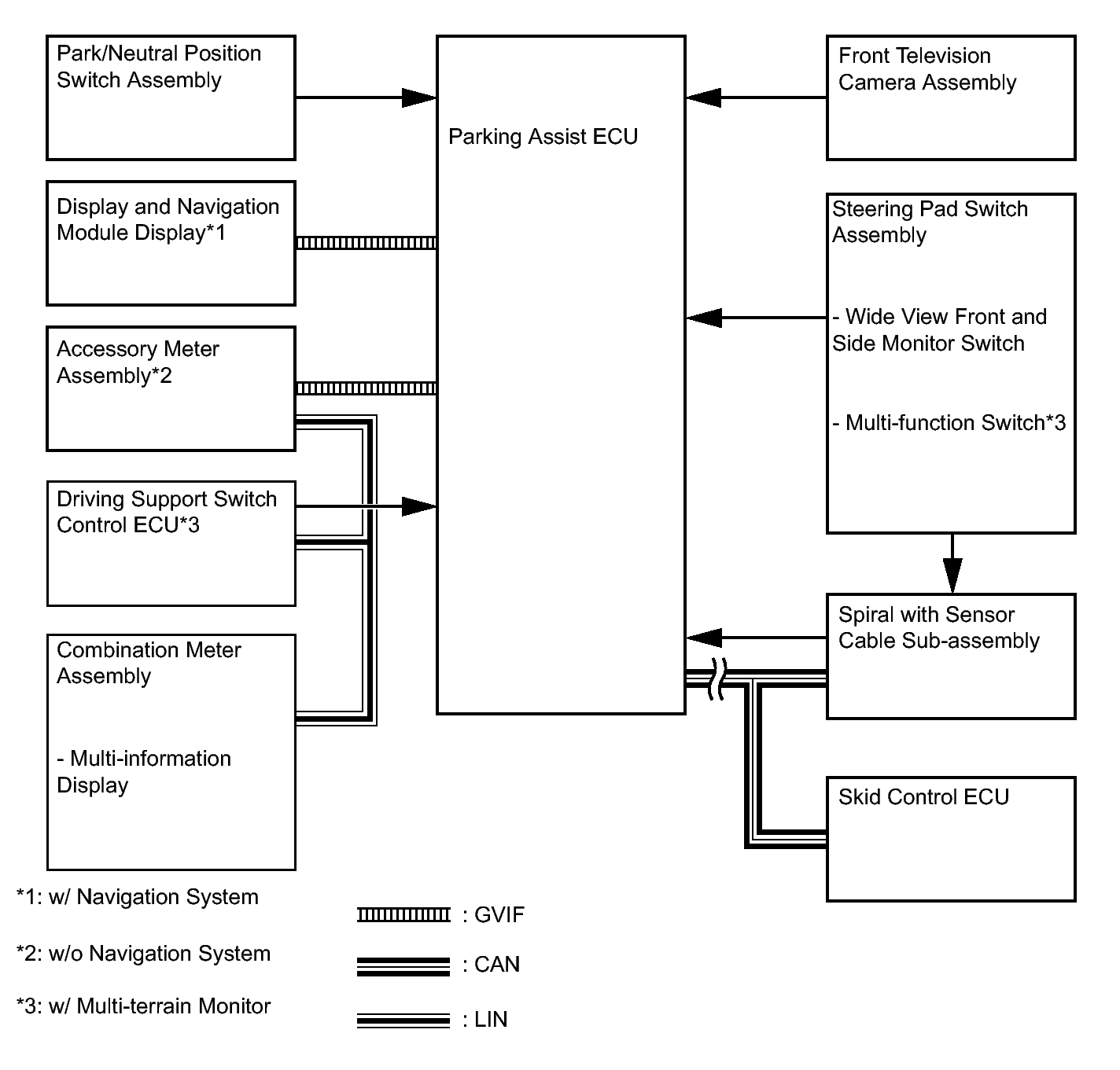

Fig 1: Identifying Wide View Front Monitor System Diagram
GTY264865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender ECU Receiver ECU Signal Line
Skid Control ECU Parking Assist ECU Vehicle speed signal CAN
Spiral with Sensor Cable Sub-assembly Parking Assist ECU Vehicle angle data signal CAN
Driving Support Control Switch ECU
  • Combination Meter Assembly
  • Accessory Meter Assembly*2
 Operation information received from the multi-function switch of the steering pad switch assembly which is displayed on multi-information display in the combination meter assembly and accessory meter assembly*2 LIN
Parking Assist ECU
  • Display and Navigation Module Display*1
  • Accessory Meter Assembly*2
 Display signal GVIF
