Parts Location: Illustration

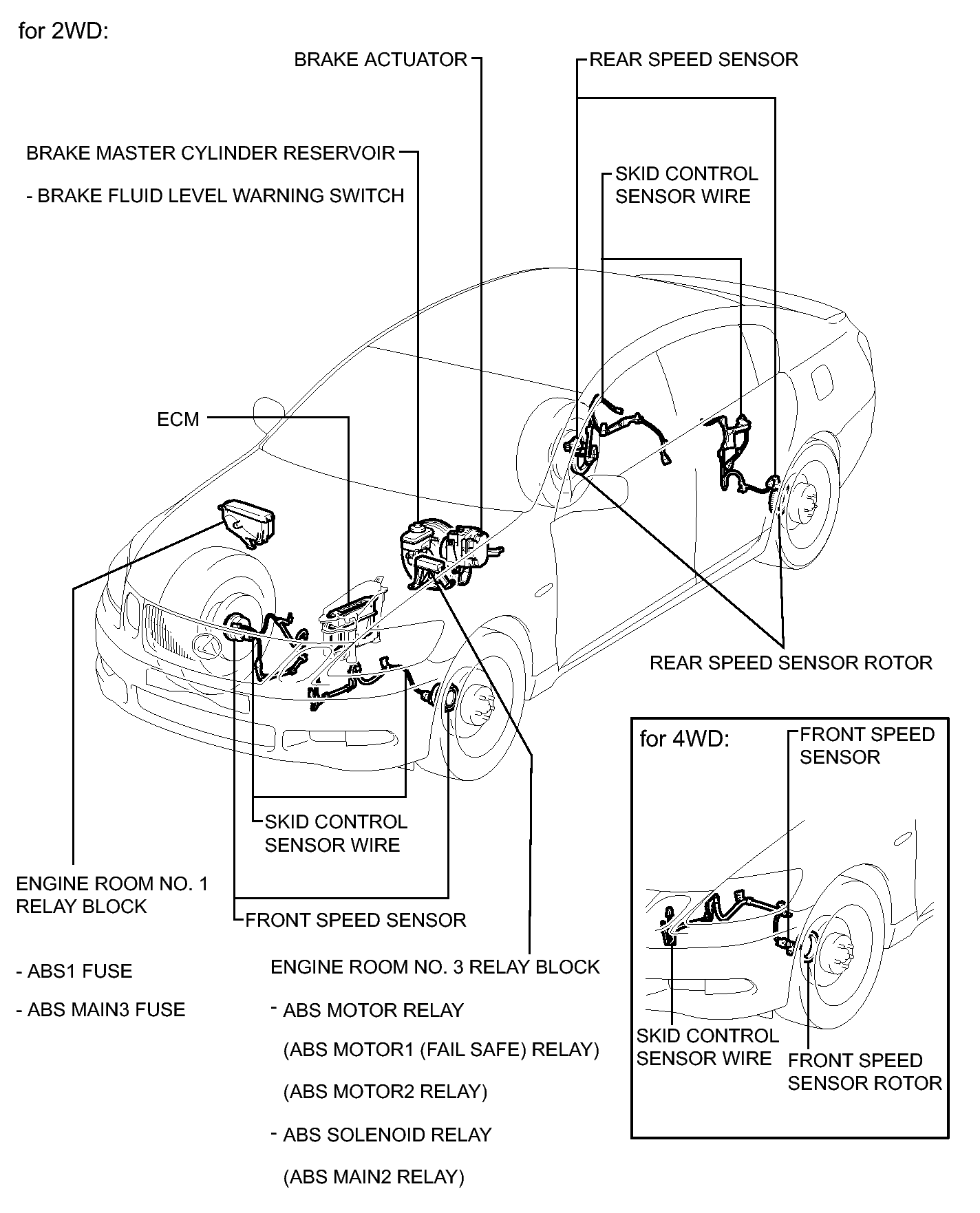

Fig 1: Identifying Vehicle Stability Control System Components (1 Of 2)
GTY274341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

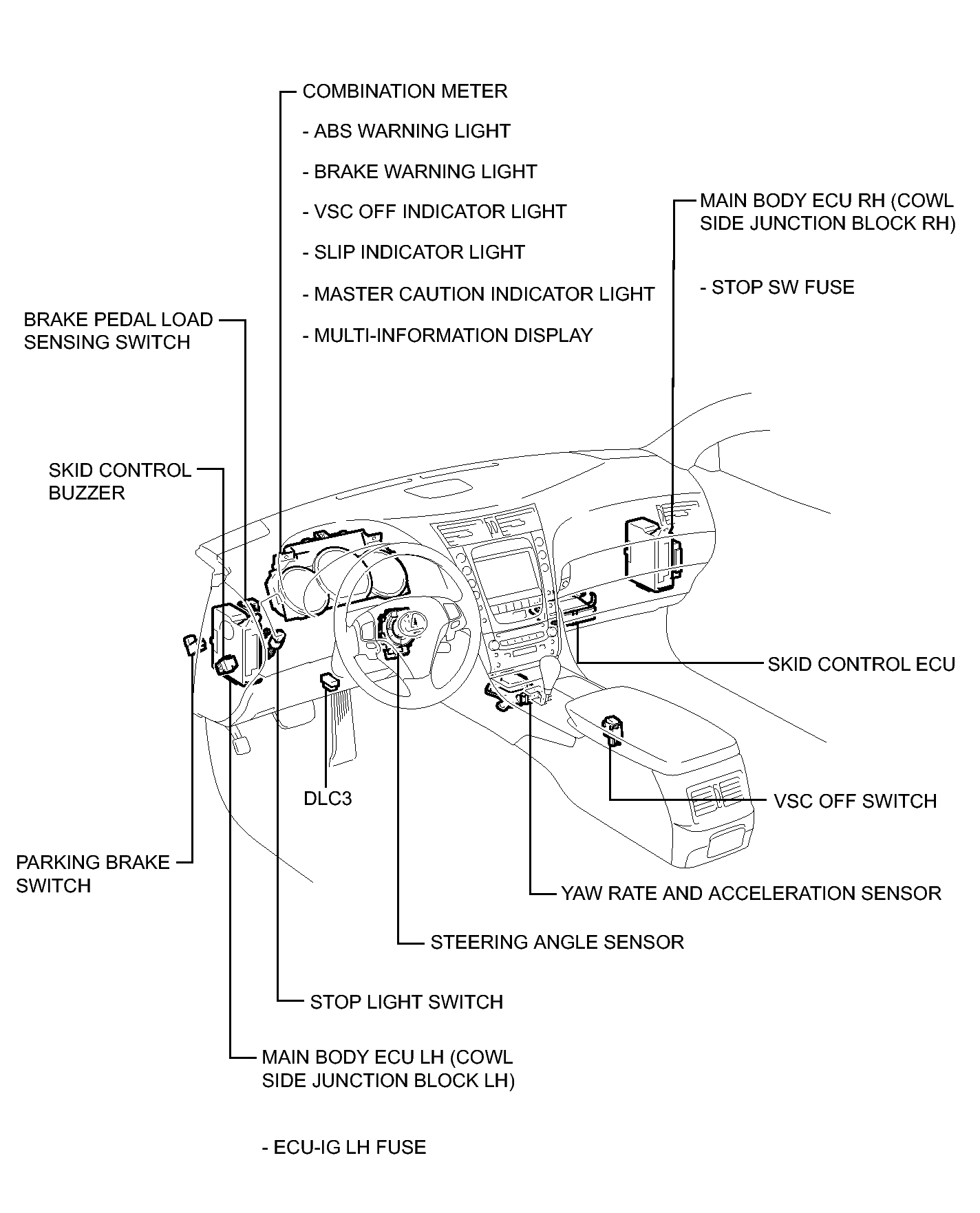

Fig 1: Identifying Vehicle Stability Control System Components (2 Of 2)
GTY259330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
