Battery Smart Unit: Components: Illustration

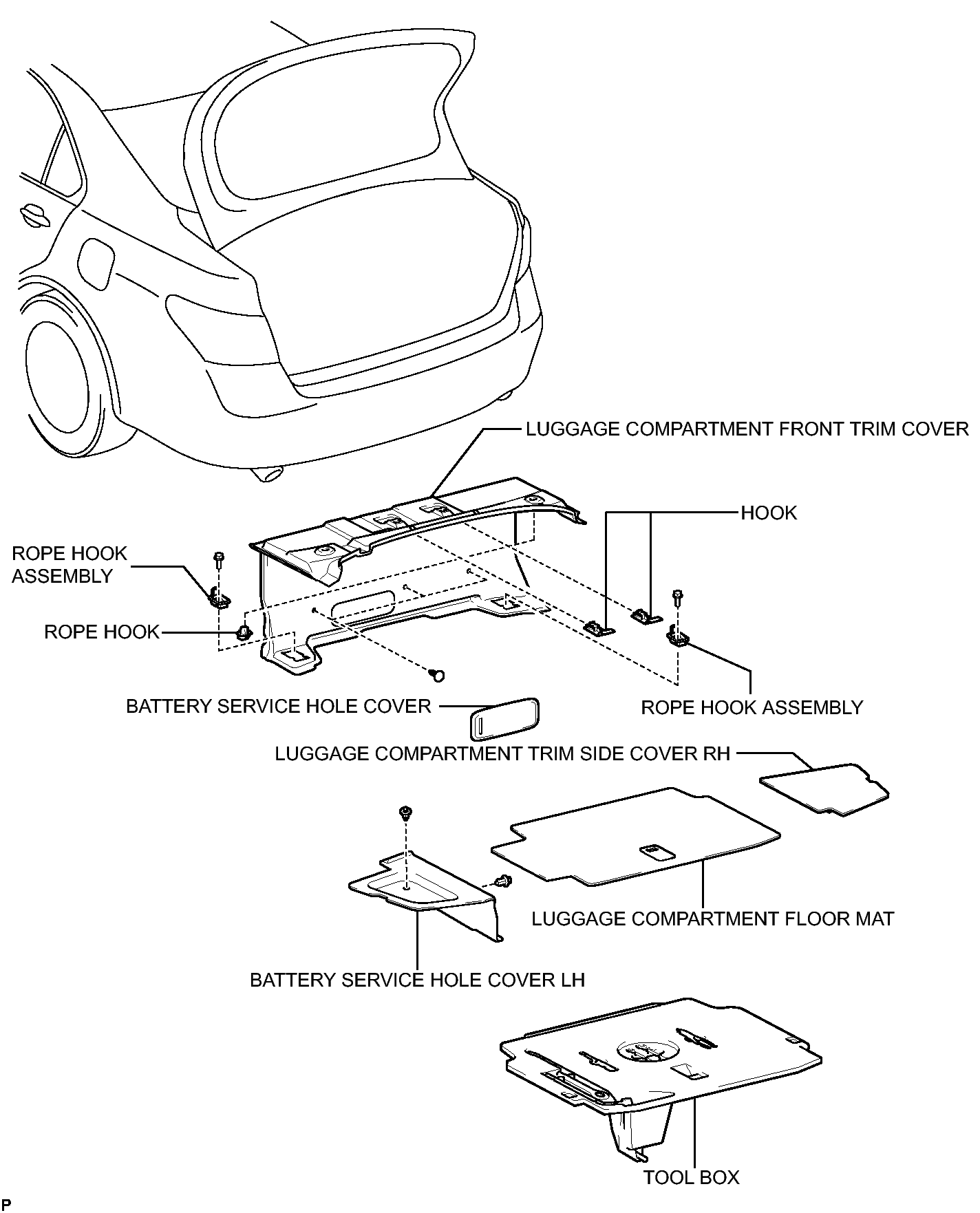

Fig 1: Identifying Battery Smart Unit Replacement Components (1 Of 2)
GTY127472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

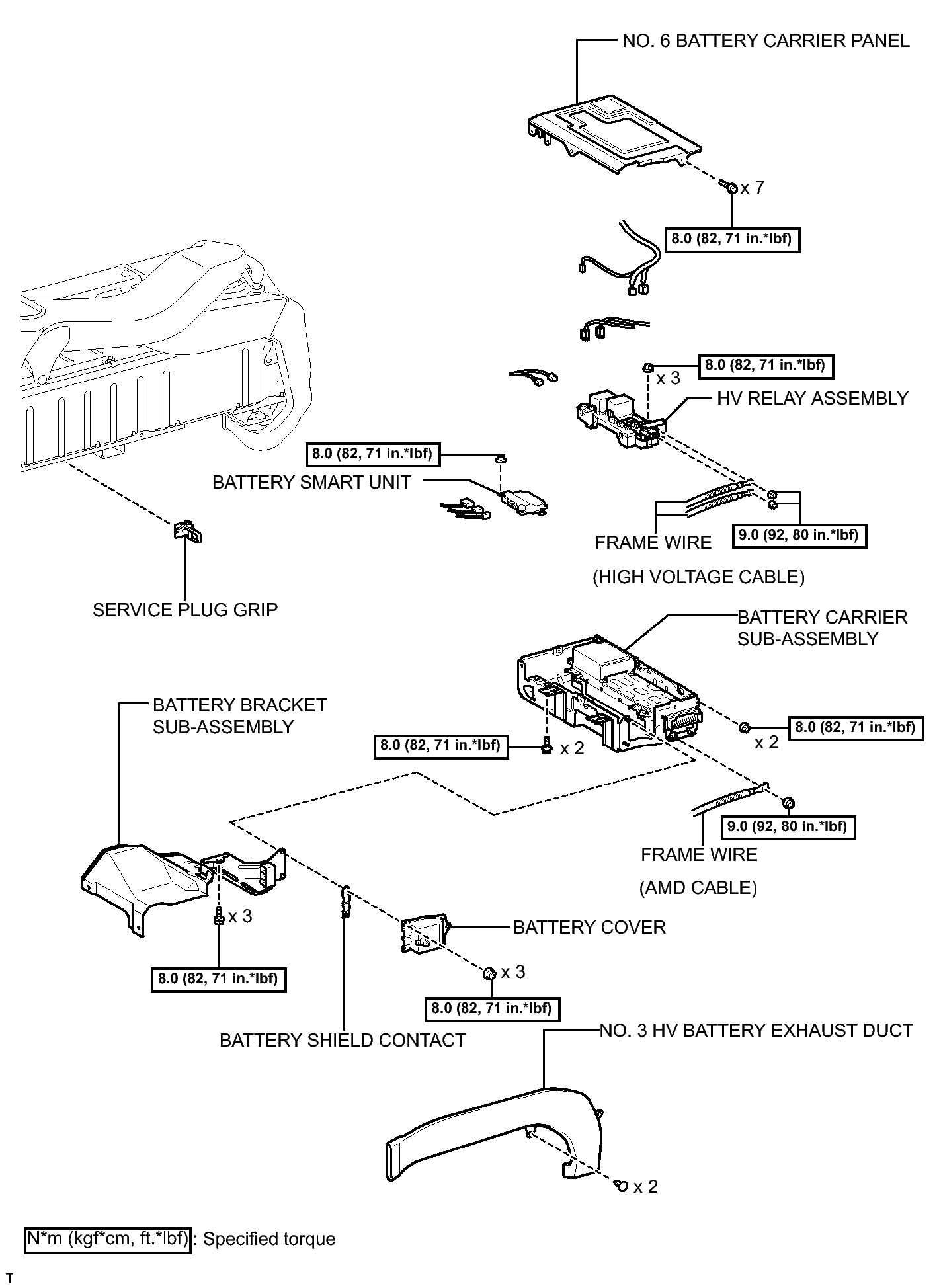

Fig 1: Identifying Battery Smart Unit Replacement Components With Torque Specifications (2 Of 2)
GTY133228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
