Parts Location: Illustration

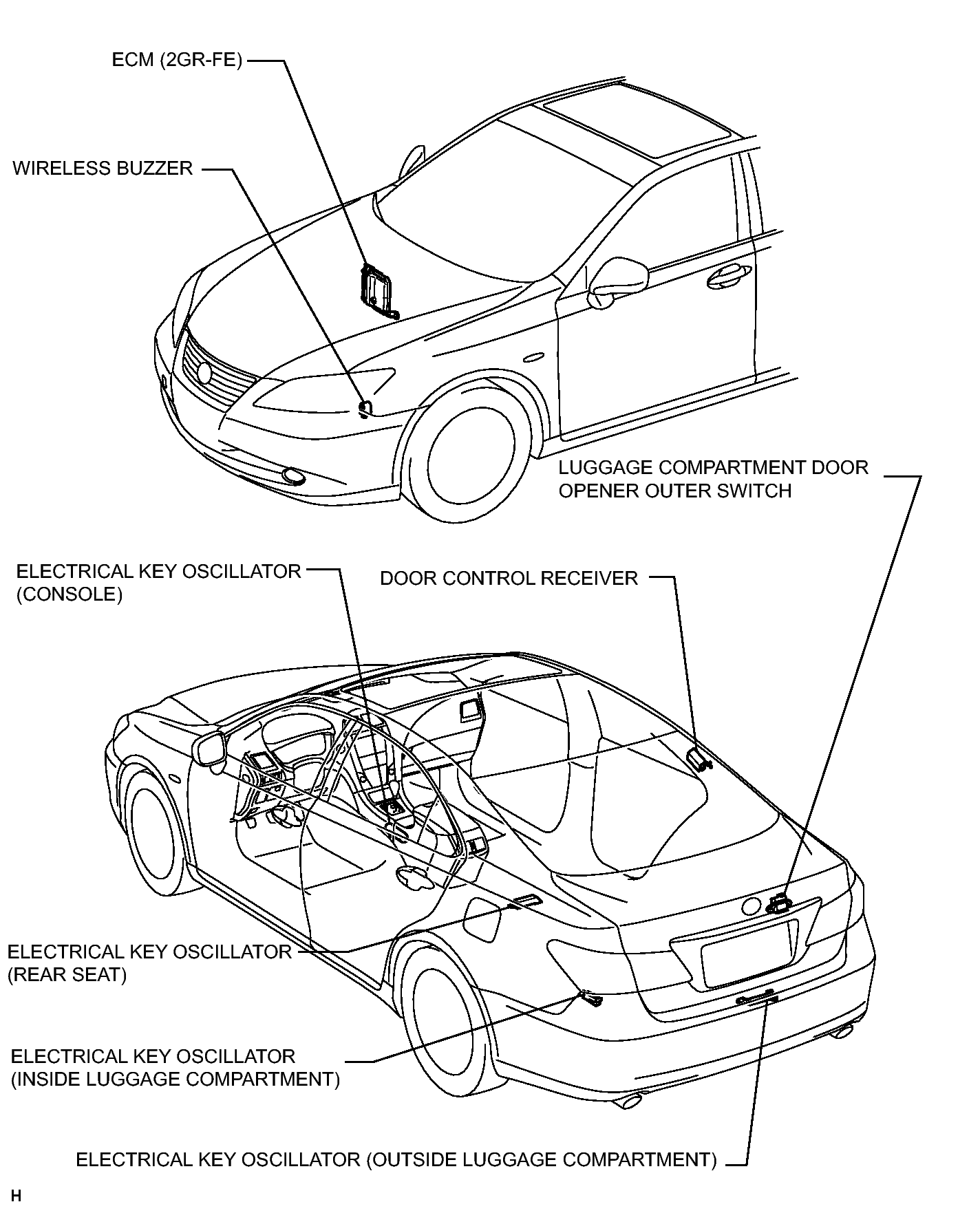

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (1 Of 3)
GTY353817Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

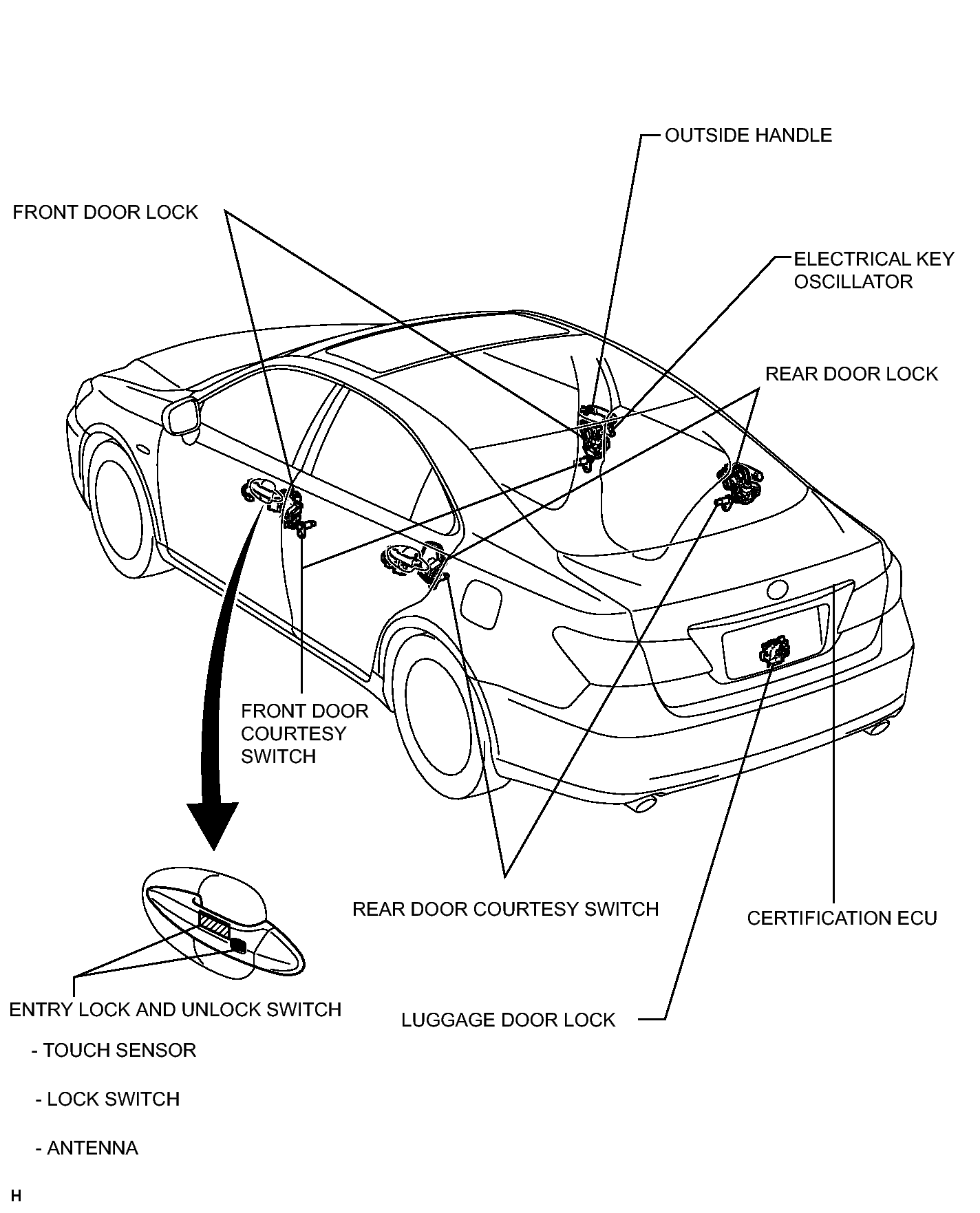

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (2 Of 3)
GTY132340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

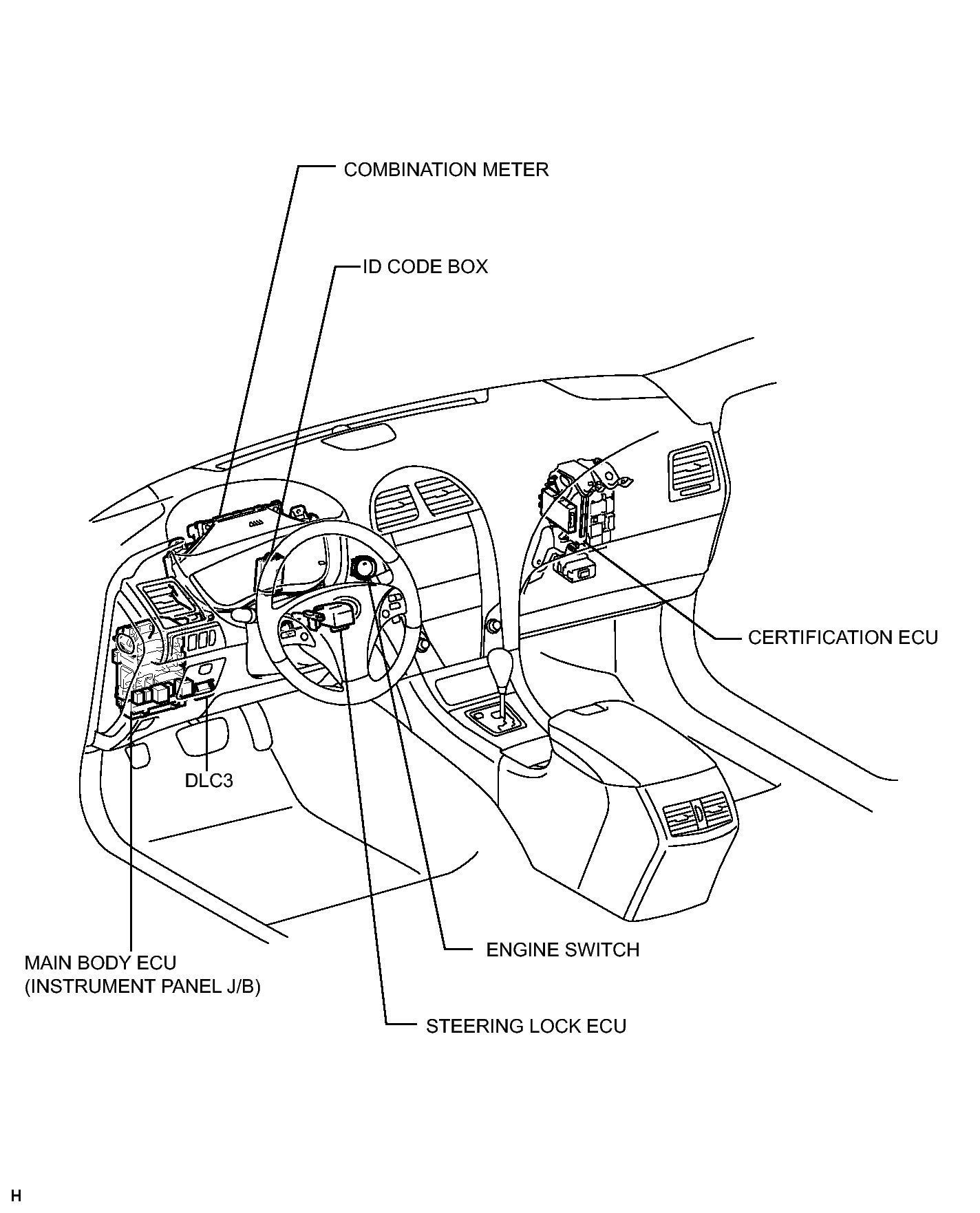

Fig 1: Identifying Smart Access System With Push-Button Start Components Location (3 Of 3)
GTY118515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
