System Diagram

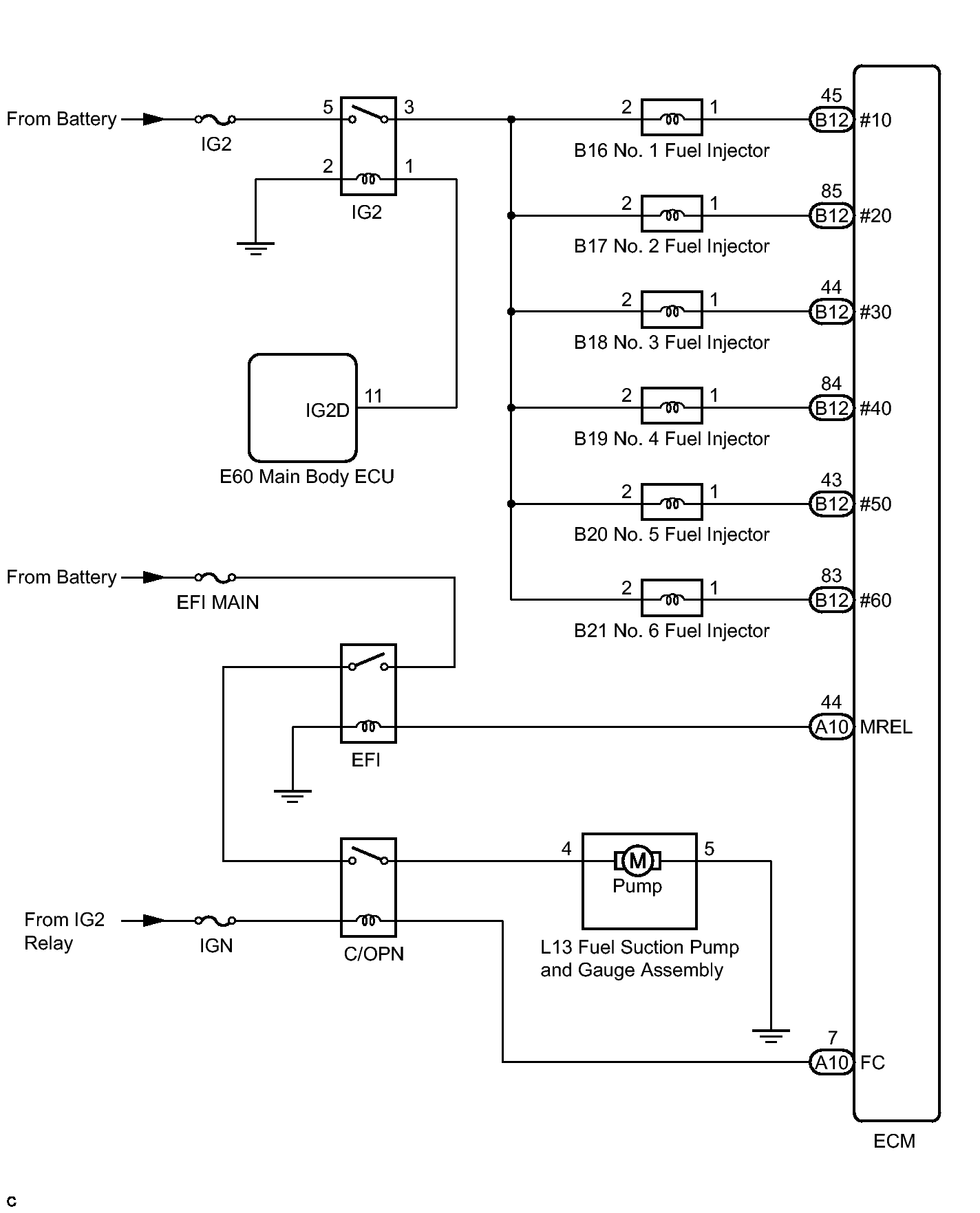

Fig 1: Identifying Fuel System Wiring Diagram

GTY135730

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
