DTC P0403: Exhaust Gas Recirculation Control Circuit: Wiring Diagram

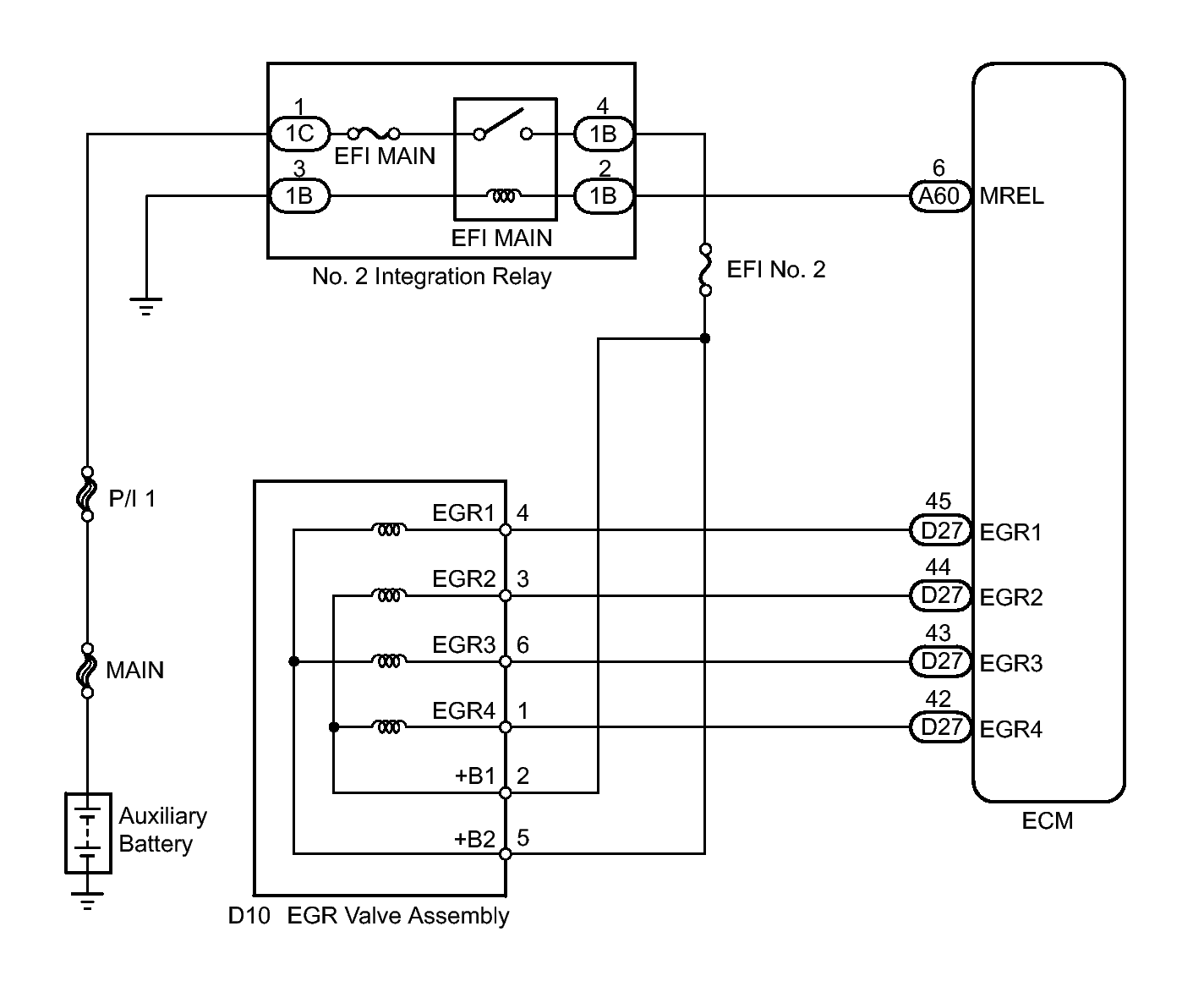

Fig 1: Identifying EGR Valve Assembly Wiring Diagram

GTY355736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
