ECM Power Source Circuit: Wiring Diagram

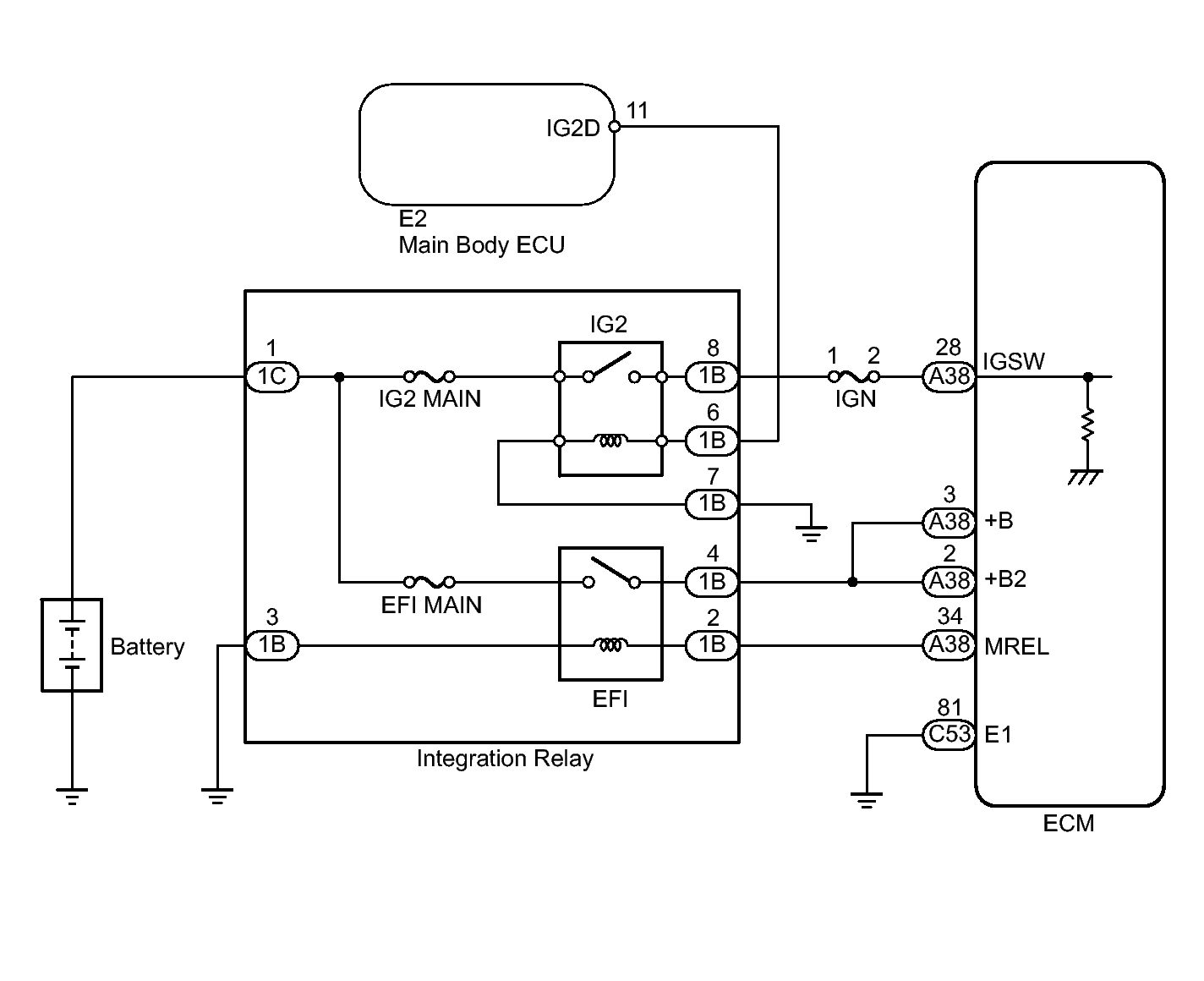

Fig 1: Integration Relay - Wiring Diagram

GTY230397

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
