Crankshaft Position Sensor: Removal: Removal

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.
  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    WARNING:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

  2. REMOVE SERVICE PLUG GRIP  . Refer toREMOVAL - Step 6
  3. REMOVE COOL AIR INTAKE DUCT SEAL  See step  5
  4. REMOVE V-BANK COVER  See step  8
  5. REMOVE NO. 1 AIR CLEANER INLET  . Refer toREMOVAL - Step 2
  6. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM  . Refer toREPLACEMENT - Step 1
  7. REMOVE ENGINE UNDER COVER
  8. REMOVE REAR ENGINE UNDER COVER LH
  9. DISCONNECT NO. 1 COOLER REFRIGERANT SUCTION HOSE  . Refer toREMOVAL - Step 7
  10. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE  . Refer toREMOVAL - Step 8
  11. REMOVE ELECTRIC INVERTER COMPRESSOR  . Refer toREMOVAL - Step 9
  12. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the sensor connector.

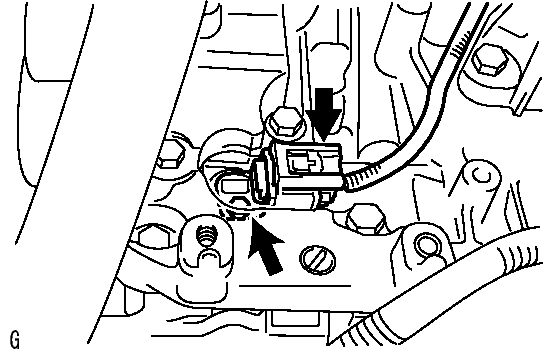

      Fig 1: Identifying Crankshaft Position Sensor & Bolt
      GTY104310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and sensor.
