System Diagram

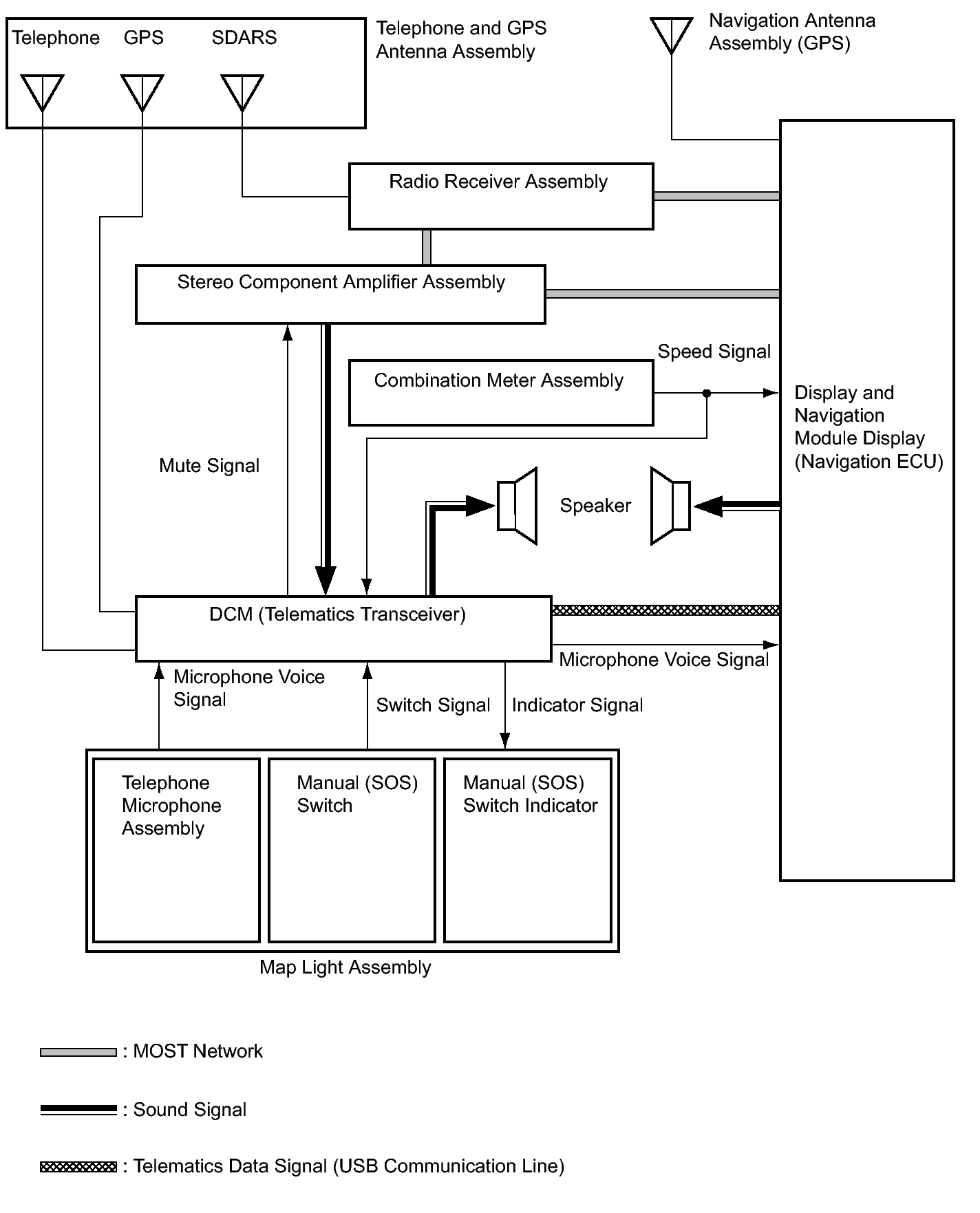

Fig 1: Lexus Enform System Diagram

GTY276533

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
