System Diagram

  1. EMISSION CONTROL SYSTEM DIAGRAM
    Fig 1: Emission Control System Diagram
    GTY145575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. EVAP CONTROL SYSTEM DIAGRAM
    Fig 2: EVAP Control System Diagram
    GTY145467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. EVAP SYSTEM WIRING DIAGRAM
    Fig 3: EVAP System Wiring Diagram
    GTY130803Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

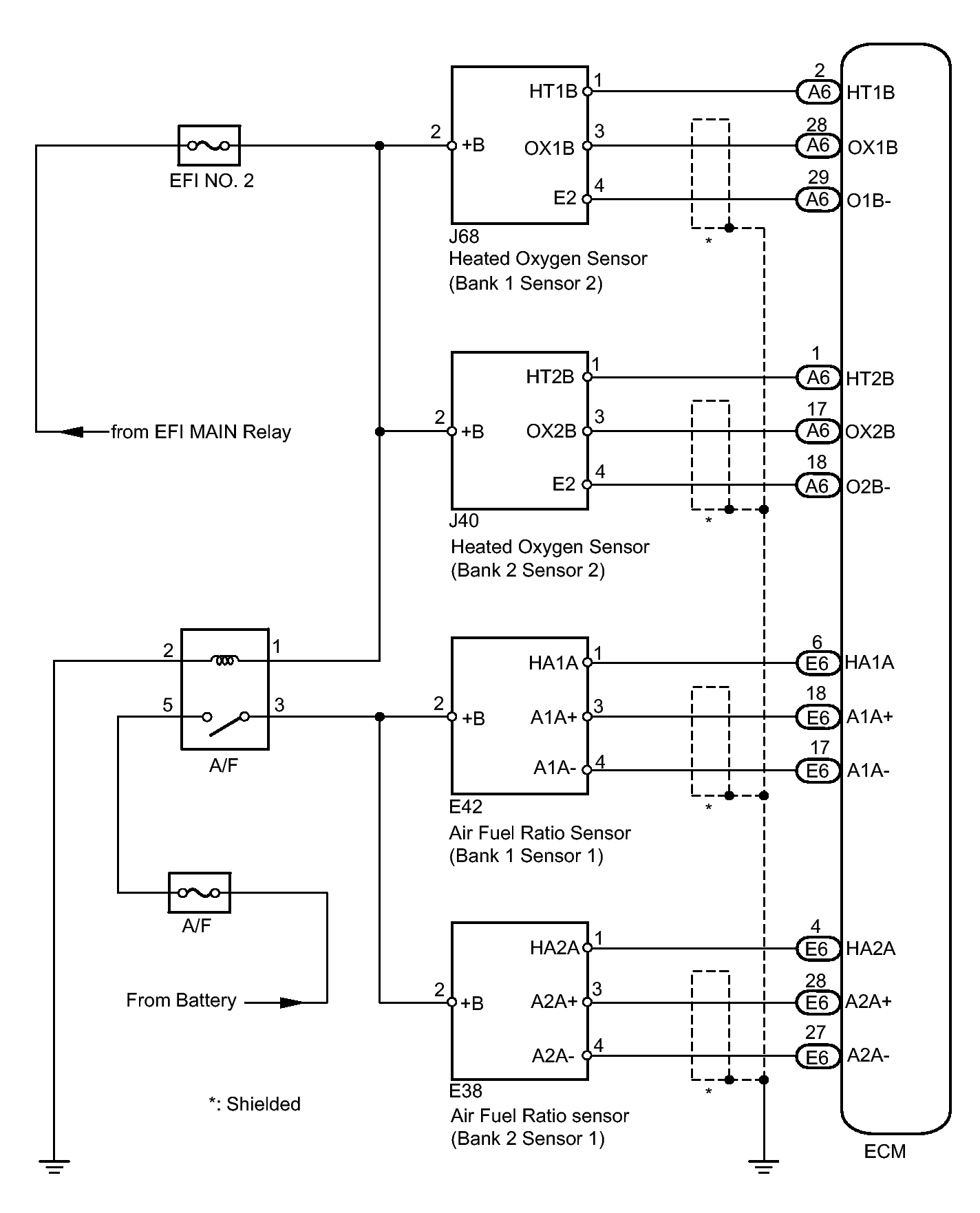

  4. EMISSION CONTROL SYSTEM WIRING DIAGRAM
    Fig 4: Emission Control System Wiring Diagram
    GTY136261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
