Stop Light: Notes

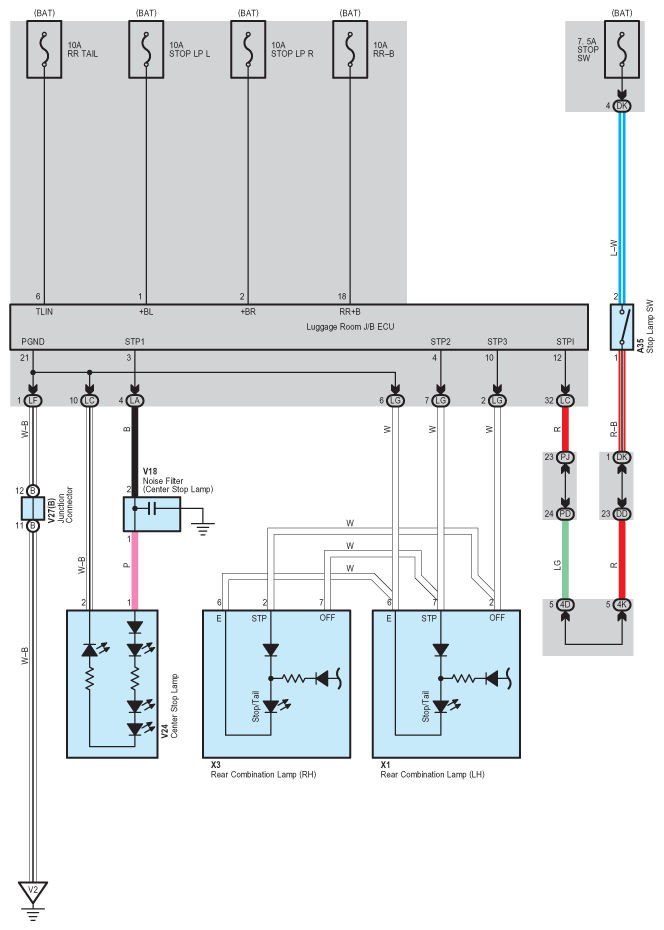

Fig 1: Stop Light - Wiring Diagram

G07557836

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
