Parts Location: Illustration

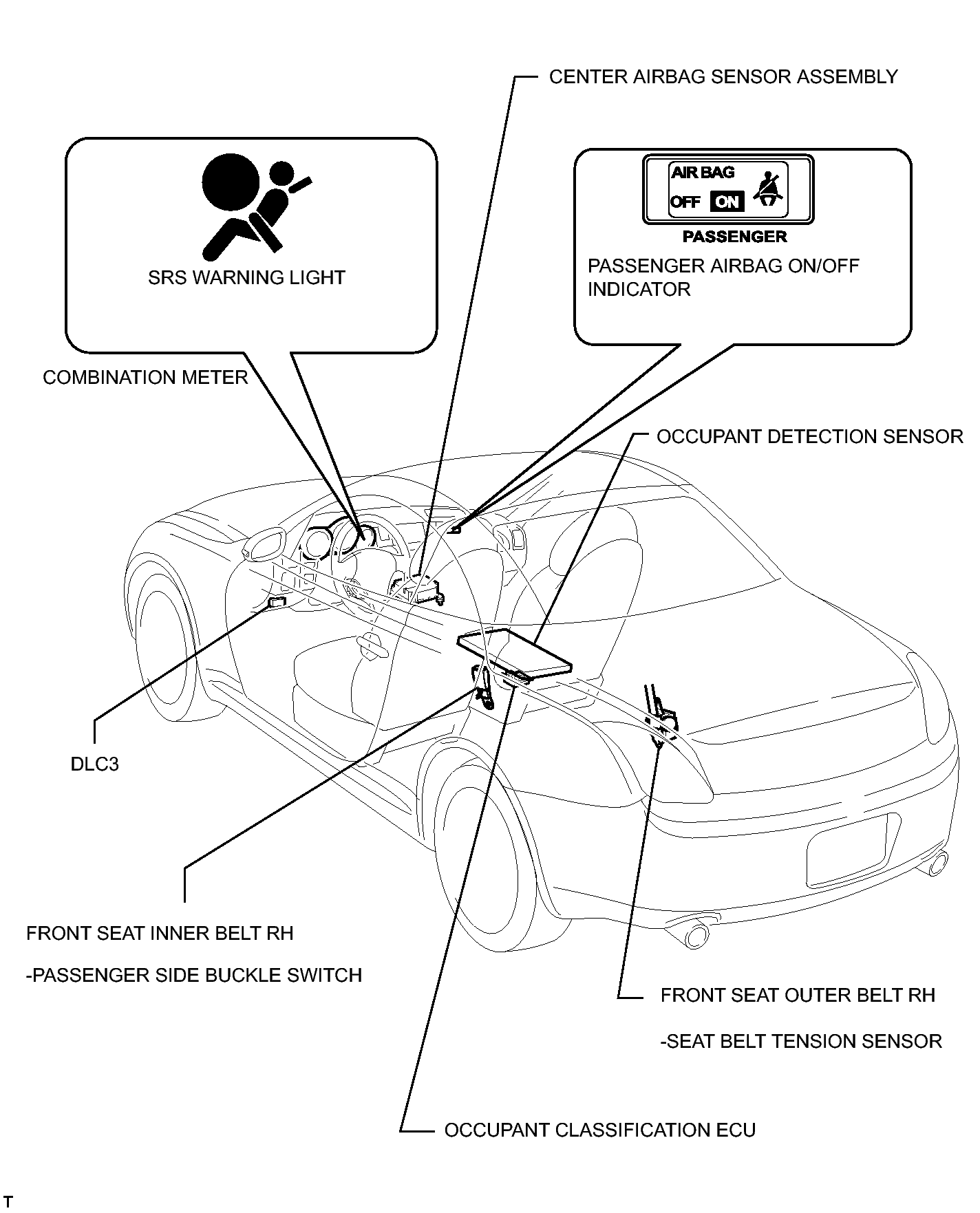

Fig 1: Identifying Occupant Classification System Parts Location

GTY124656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
