Fuel Pump Control Circuit: Wiring Diagram

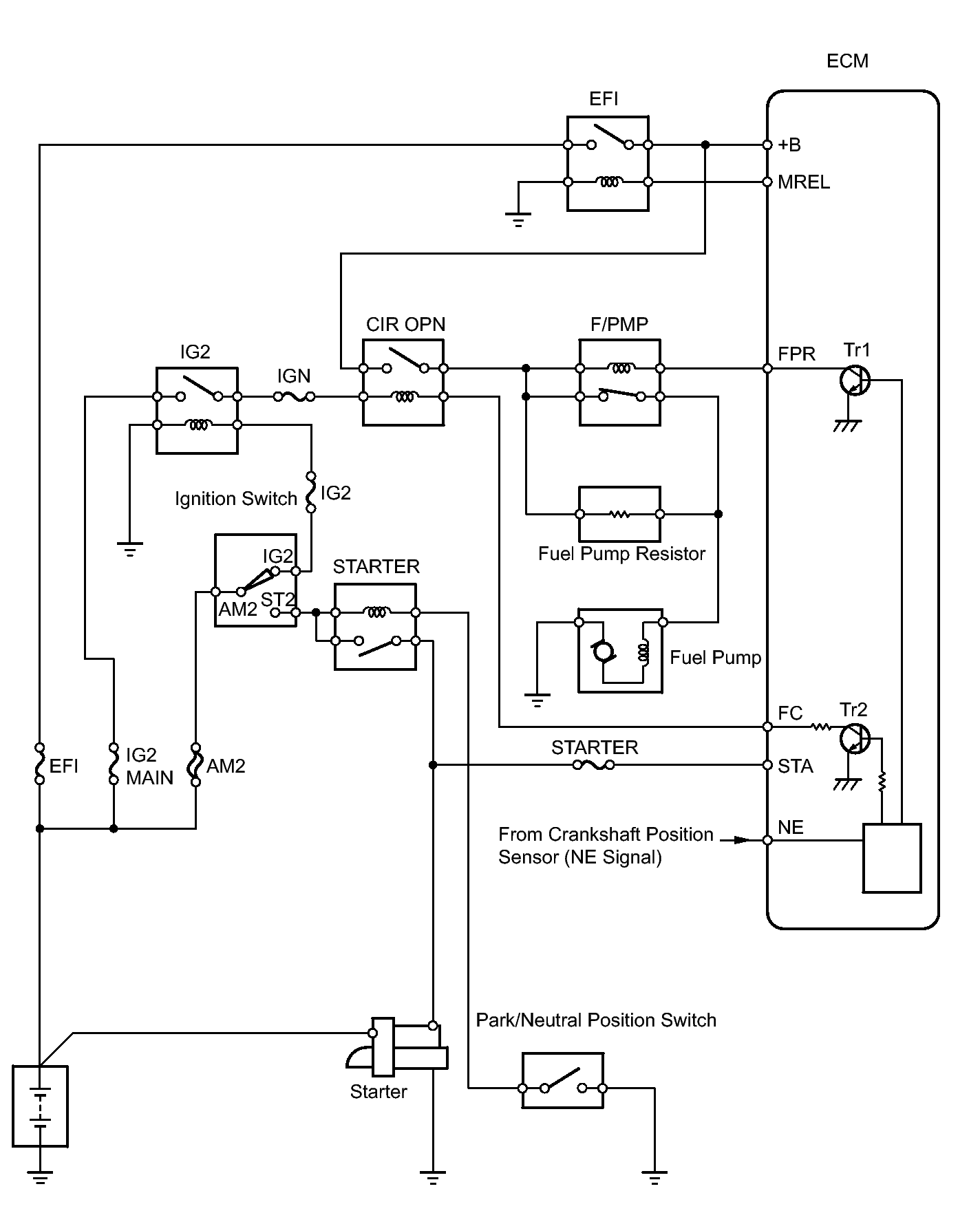

Fig 1: Fuel Pump Wiring Diagram

GTY131104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
