EVAP System: Wiring Diagram

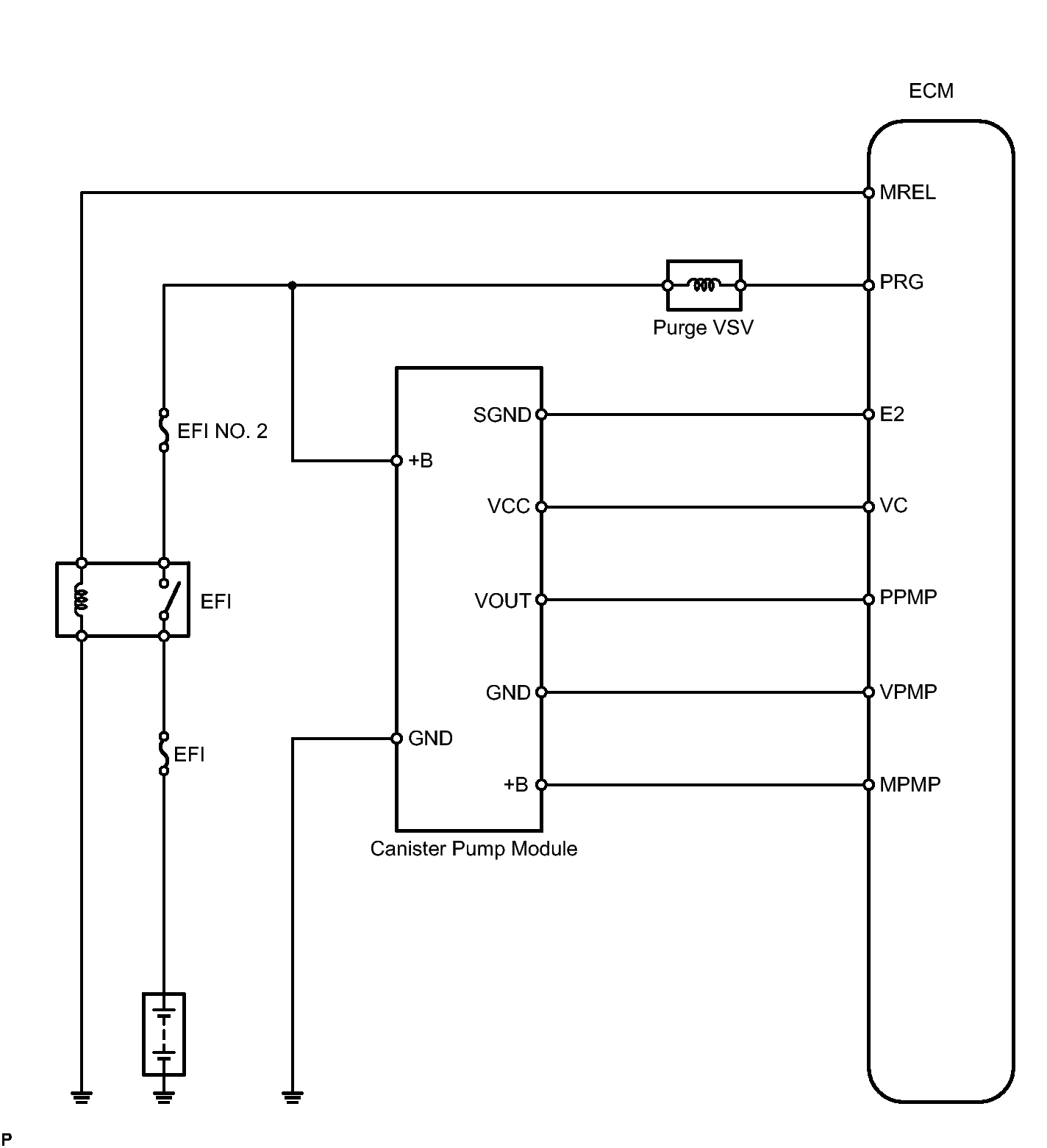

Fig 1: Canister Pump Module - Wiring Diagram

GTY131348

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
