Power Seat Position is not Memorized: Wiring Diagram

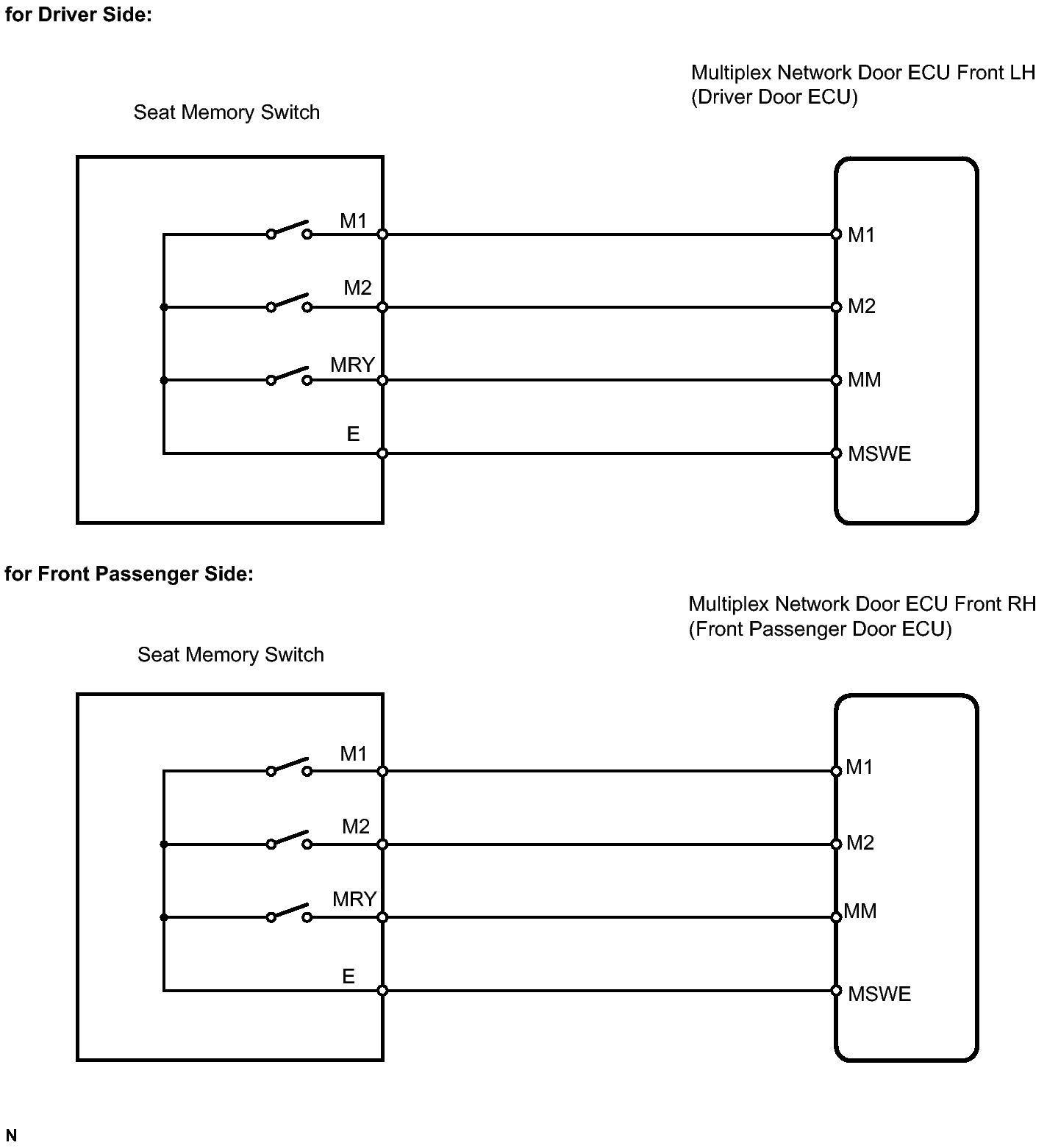

Fig 1: Identifying Power Seat Position Wiring Diagram

GTY133610

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
