Parts Location: Illustration

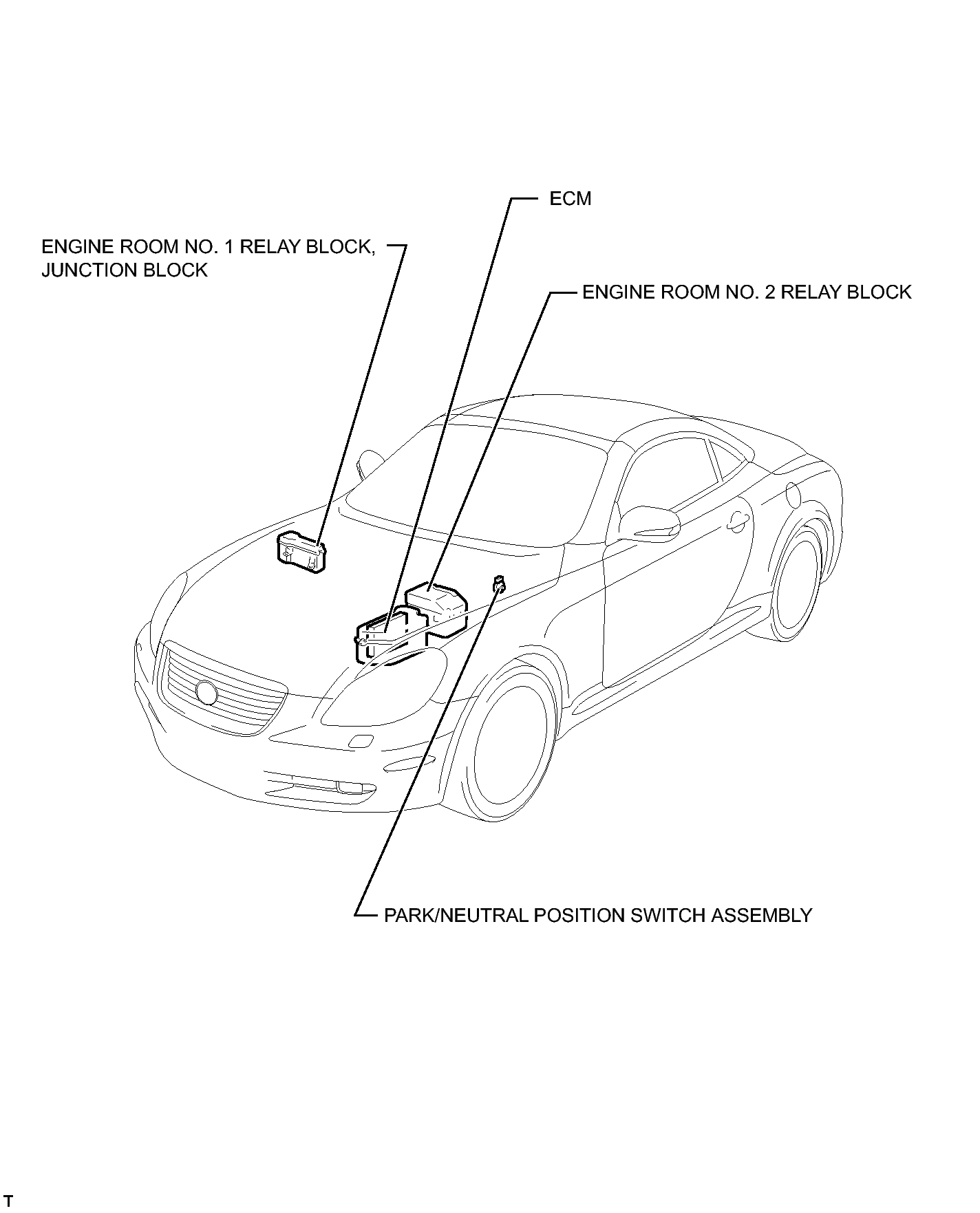

Fig 1: Locating Power Mirror Control System Parts (1 Of 3)
GTY144193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating Power Mirror Control System Parts (2 Of 3)
GTY136512Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

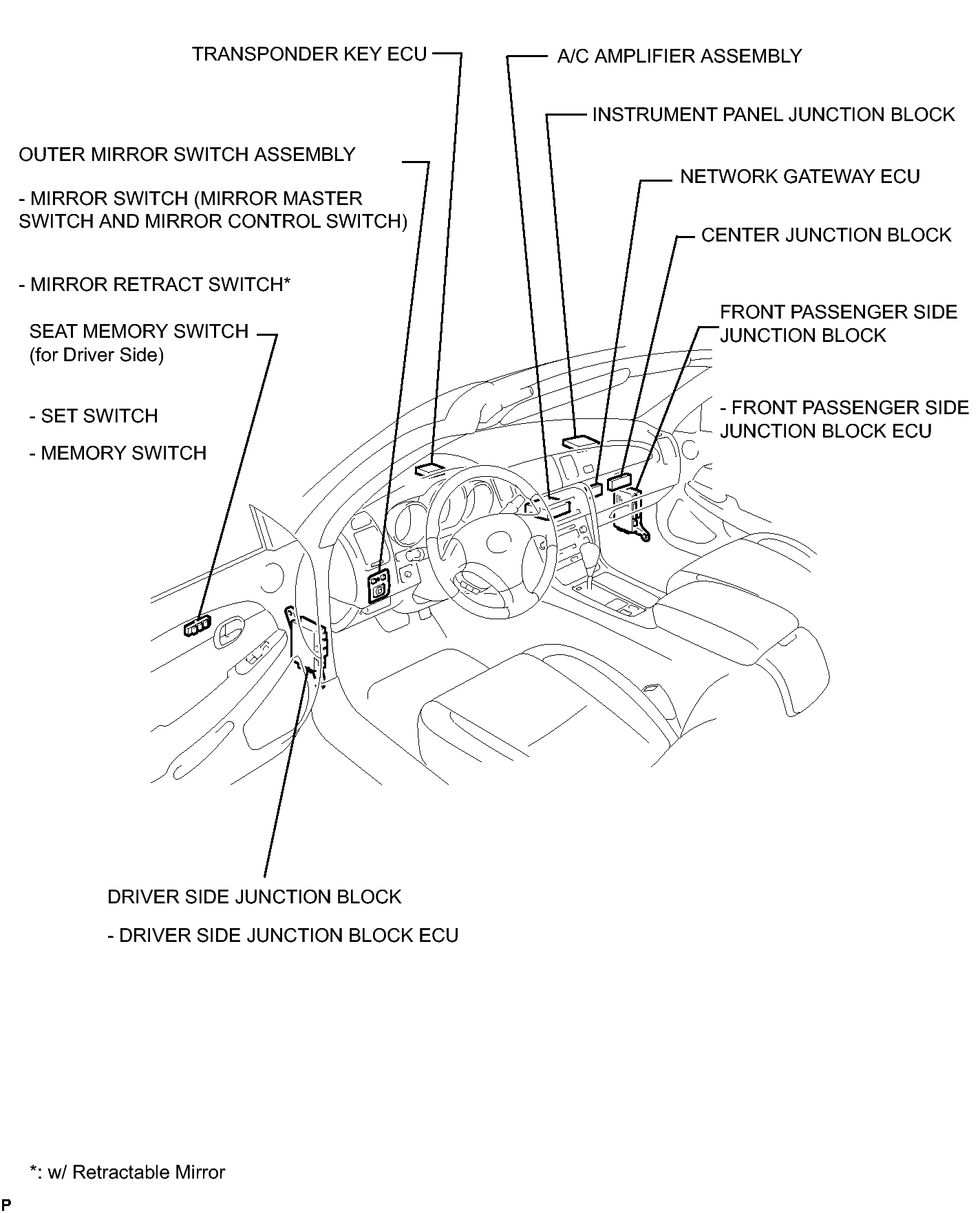

Fig 1: Locating Power Mirror Control System Parts (2 Of 3)

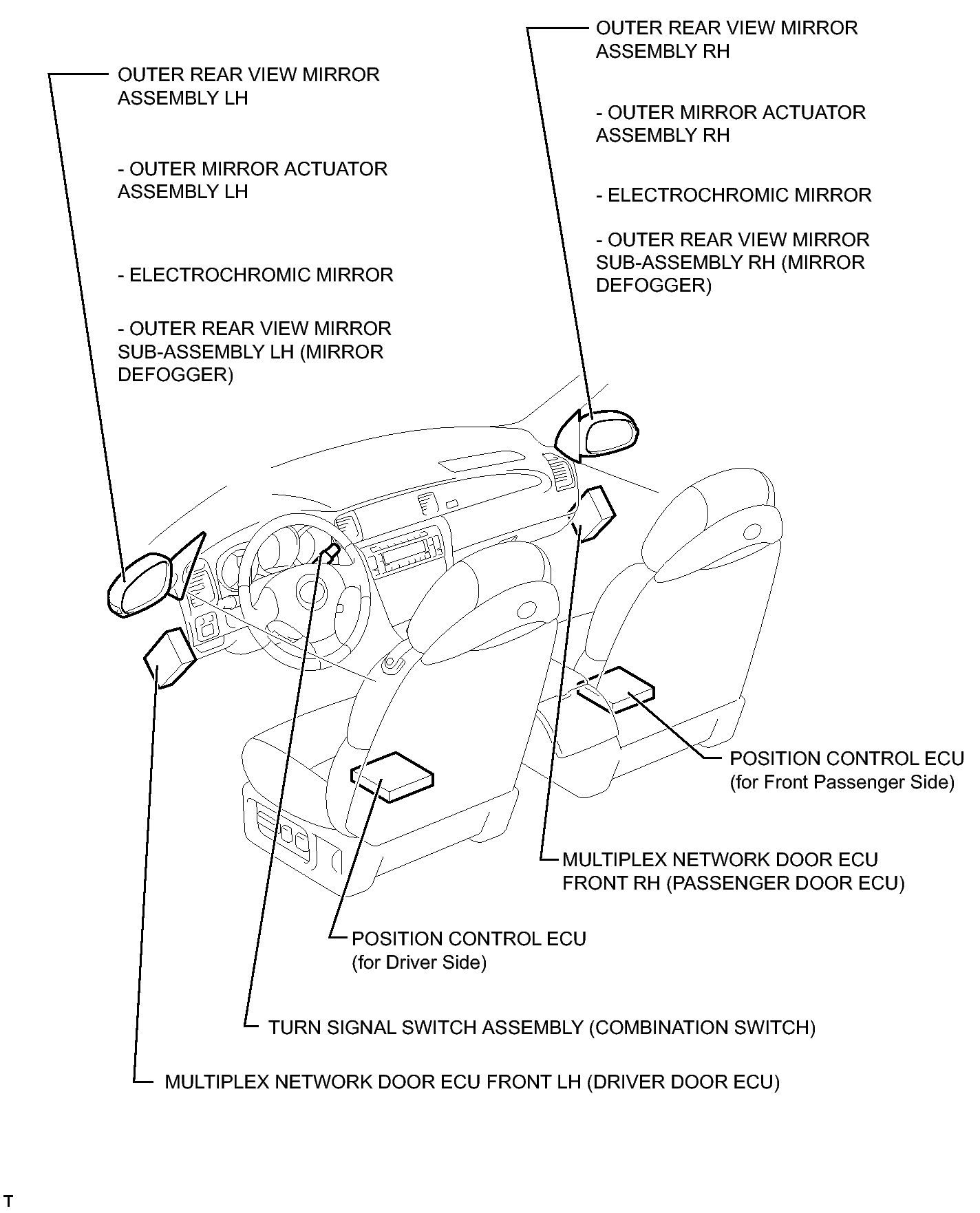

GTY123720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
