Radio Receiver Power Source Circuit: Wiring Diagram

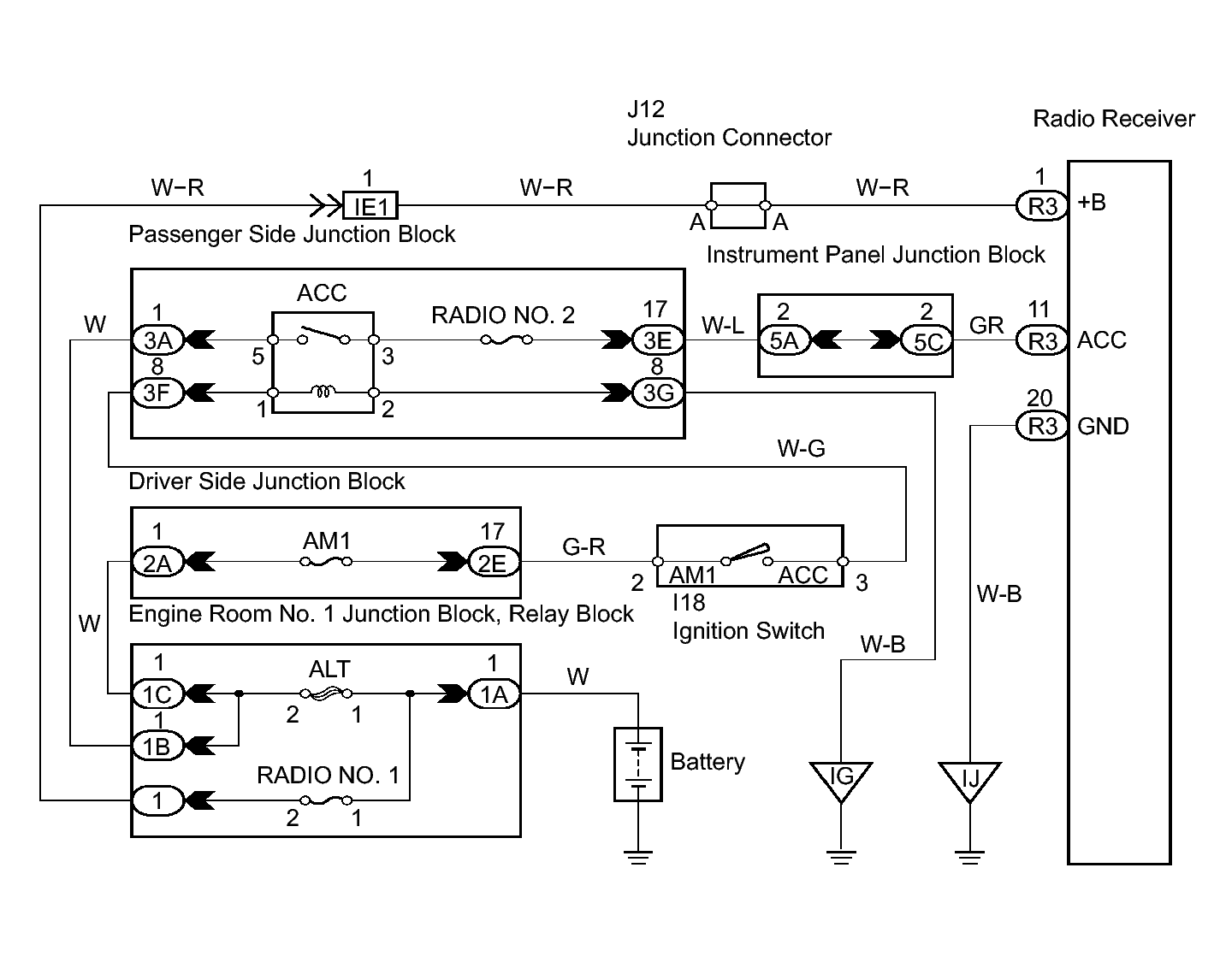

Fig 1: Radio Receiver Power Source Circuit - Wiring Diagram

GTY139846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
