Door Control Switch Circuit: Wiring Diagram

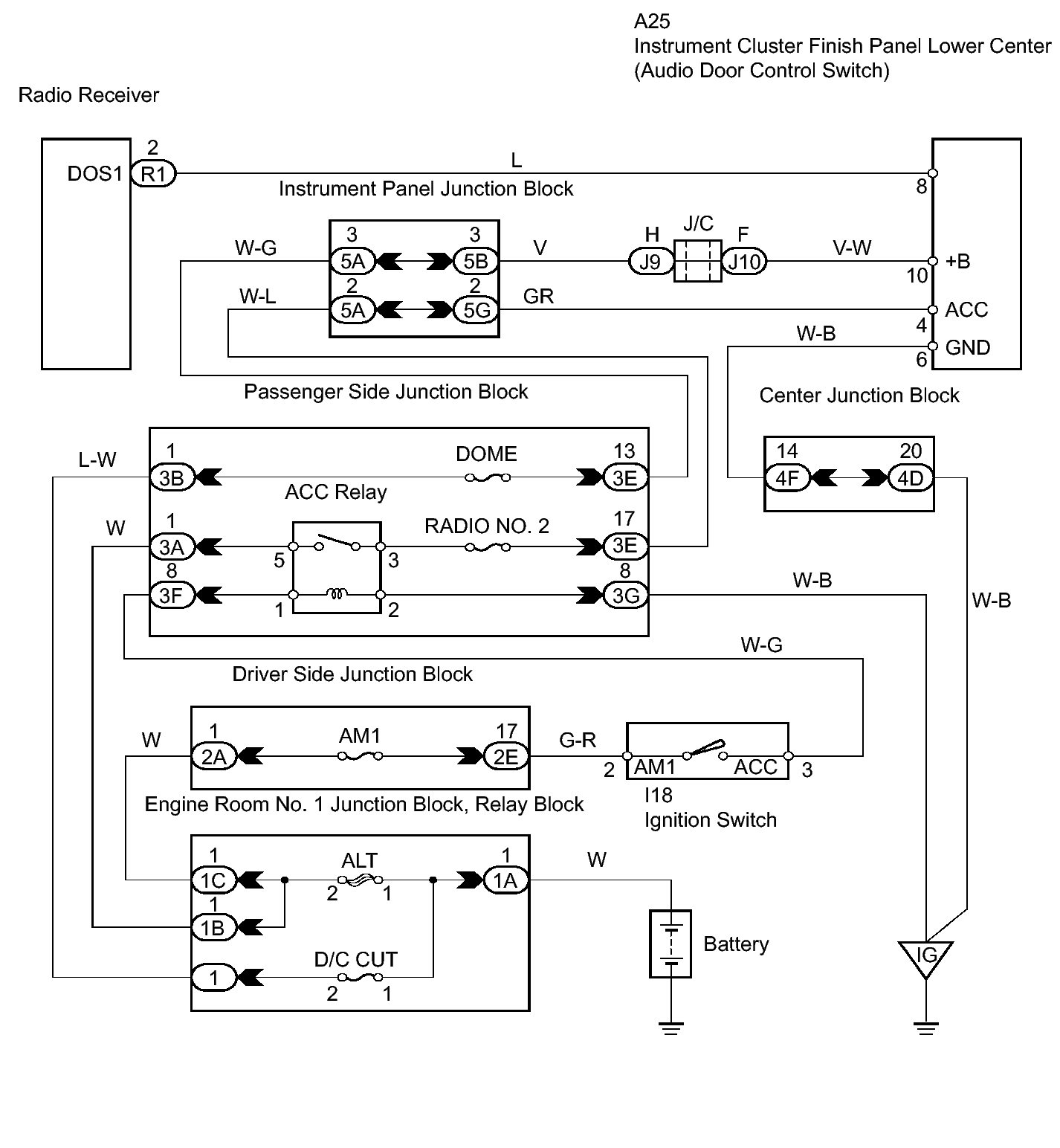

Fig 1: Door Control Switch Circuit - Wiring Diagram

GTY129897

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
