Parts Location: Illustration

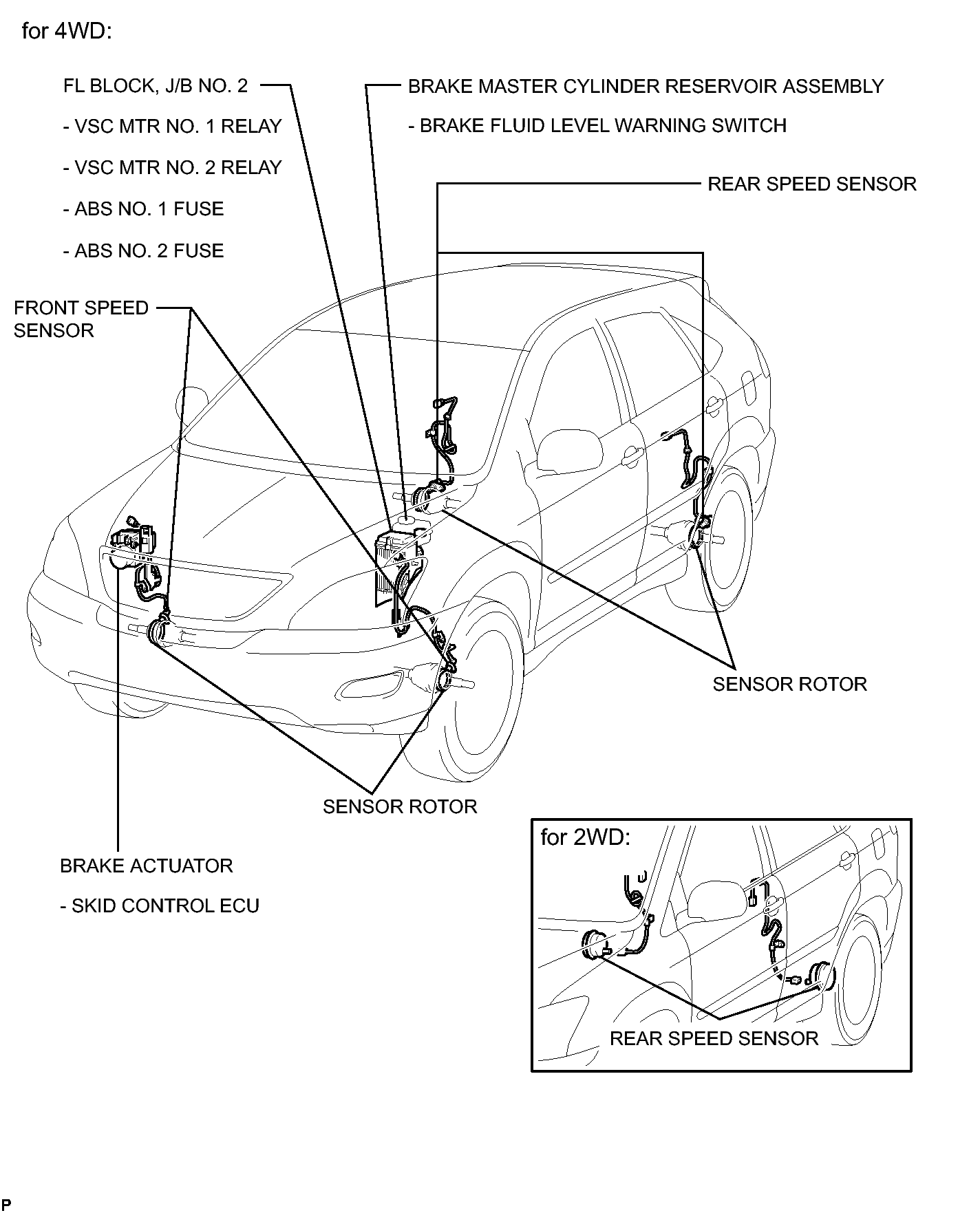

Fig 1: Identifying Brake Control System Replacement Components With Torque Specifications (1 Of 2)
GTY137830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

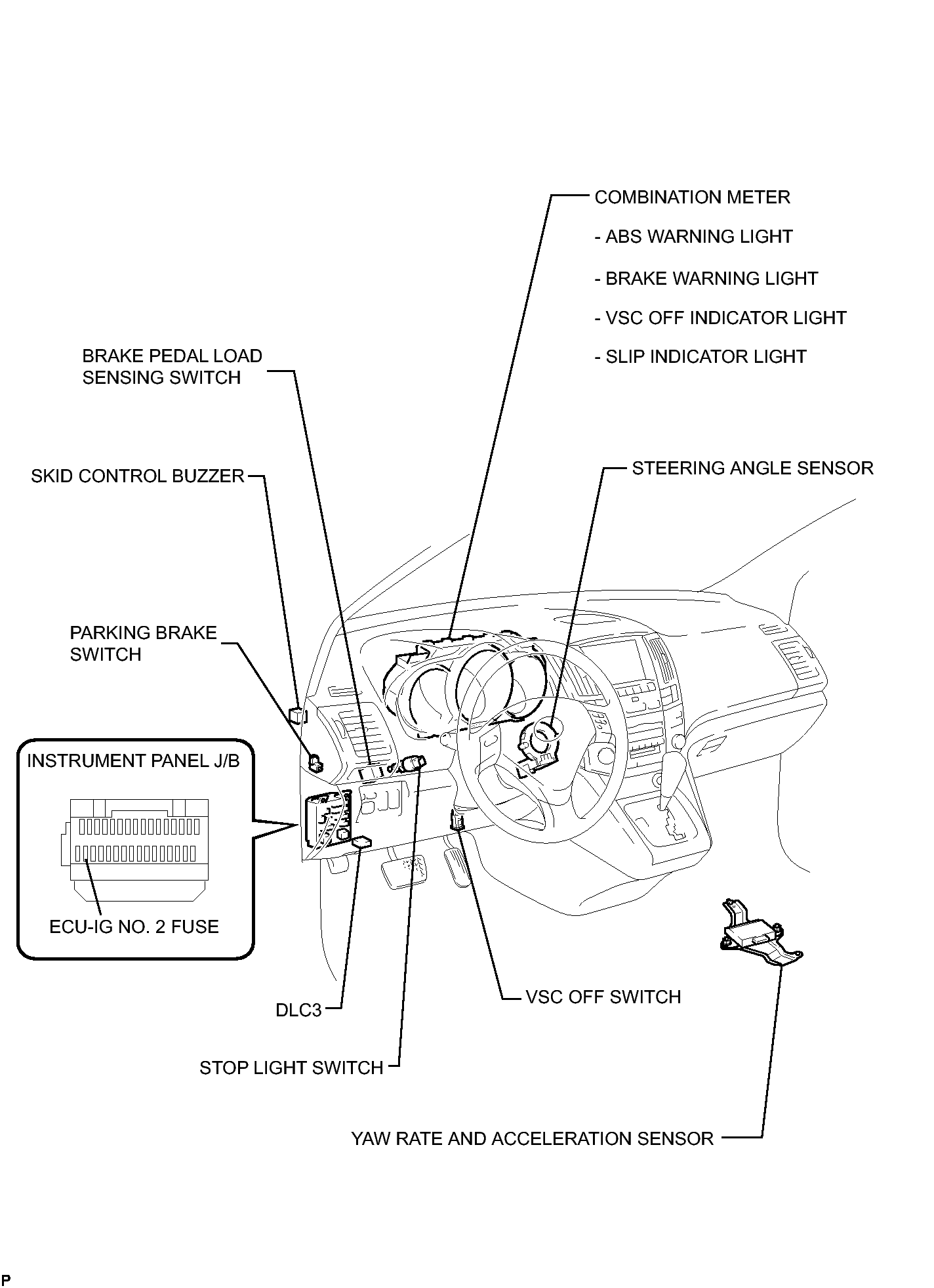

Fig 1: Identifying Brake Control System replacement Components (2 Of 2)
GTY123135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
