Microphone Circuit between Overhead Junction Block and Multi-display: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Microphone Circuit Between Overhead J/B And Multi-Display - Wiring Diagram (1 Of 2)
G05783528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

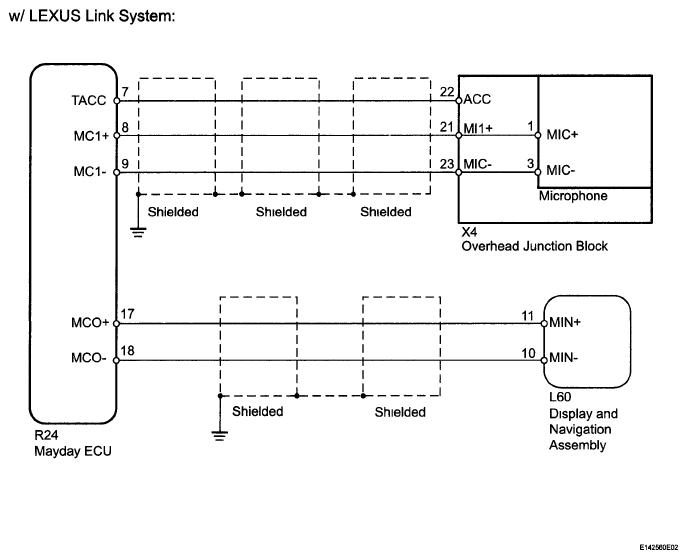

Fig 2: Microphone Circuit Between Overhead J/B And Multi-Display - Wiring Diagram (2 Of 2)
G05783529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
