Parts Location

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

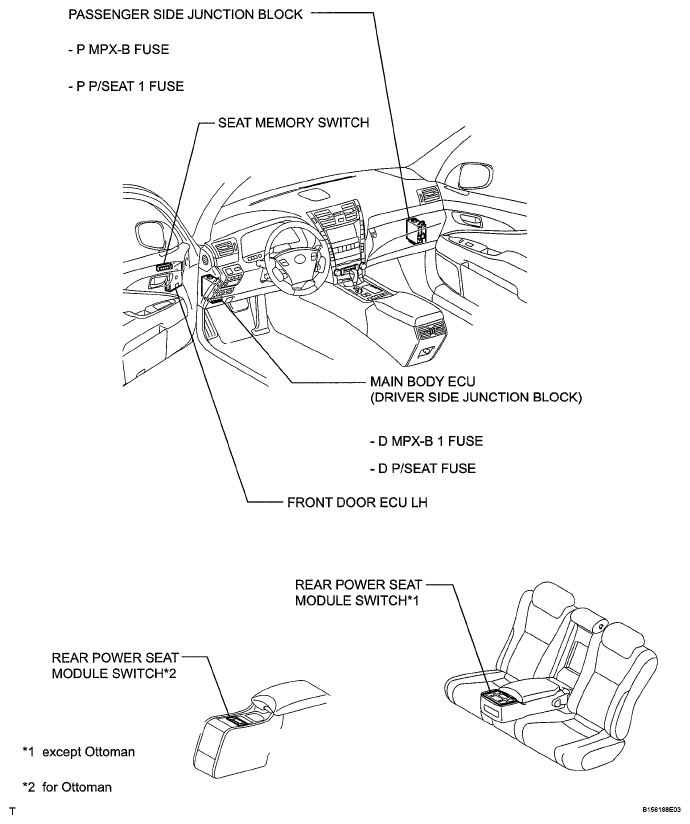

Fig 1: Identifying Front Power Seat Control System Components Location (1 Of 4)
G05784780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

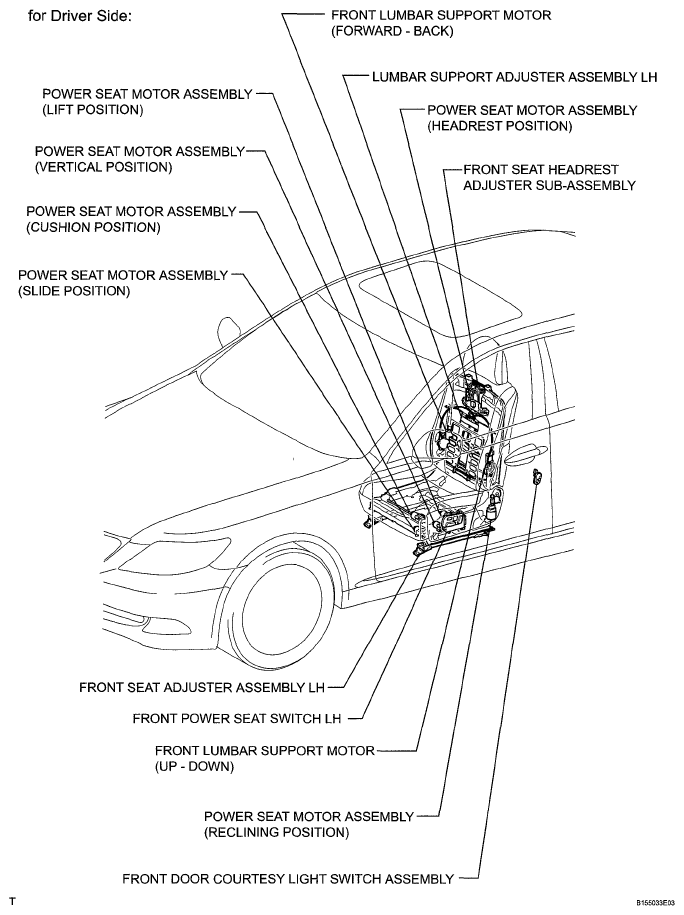

Fig 2: Identifying Front Power Seat Control System Components Location (2 Of 4)
G05784781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

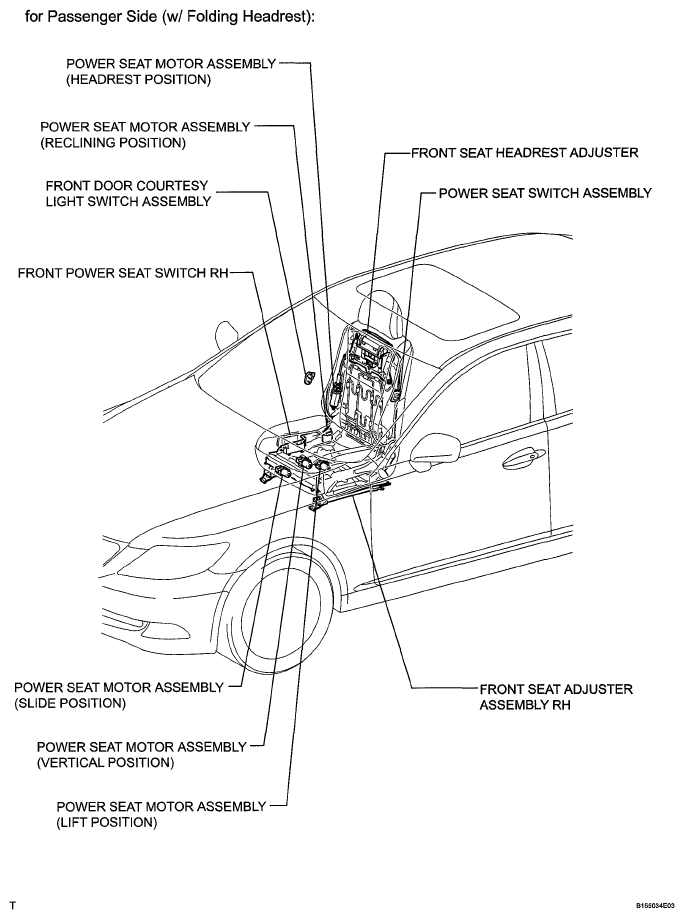

Fig 3: Identifying Front Power Seat Control System Components Location (3 Of 4)
G05784782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

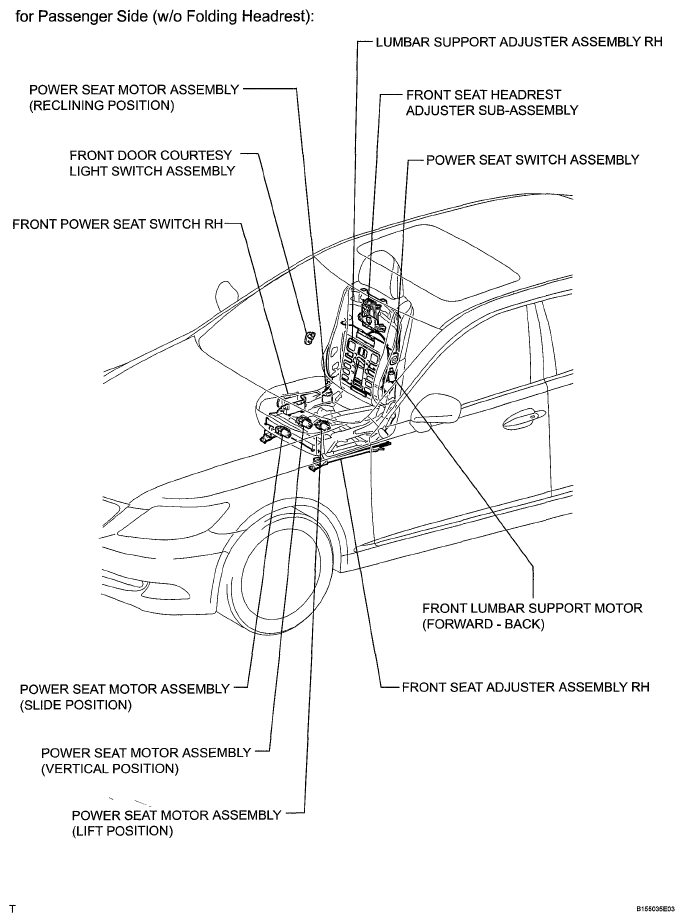

Fig 4: Identifying Front Power Seat Control System Components Location (4 Of 4)
G05784783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
