Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus LS 600hL. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Operating the power switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation

  1. CHECK HARNESS AND CONNECTOR (ECM - BATTERY AND BODY GROUND)

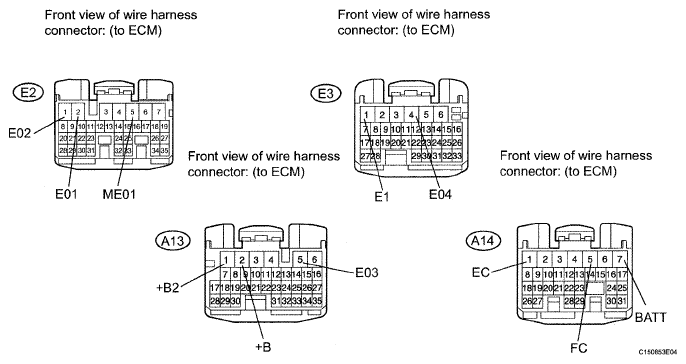

    Fig 1: Identifying ECM Connector Terminals
    G04953392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A13, A14, E2 and E3 ECM connectors
    2. Measure the resistance according to the value (s) in the table below

      Standard resistance

      RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      E3-1 (E1) - Body ground Always Below 1 Ω
      E2-2 (E01) - Body ground Always Below 1 Ω
      E2-1 (E02) - Body ground Always Below 1 Ω
      A13-5 (E03) - Body ground Always Below 1 Ω
      E3-4 (E04) - Body ground Always Below 1 Ω
      E2-5 (ME01) - Body ground Always Below 1 Ω
      A14-1 (EC) - Body ground Always Below 1 Ω
    3. Measure the voltage according to the value (s) in the table below.

      Standard voltage

    VOLTAGE SPECIFICATION

    Tester Connection Switch Condition Specified Condition
    A14-7 (BATT) - Body ground Always 11 to 14 V
    A13-2 (+B) - Body ground When battery's positive (+) voltage is applied to terminal A14-3 (MREL) 11 to 14 V
    A13-1 (+B2) - Body ground When battery's positive (+) voltage is applied to terminal A14-3 (MREL) 11 to 14 V
    A14-5 (FC) - Body ground Power switch ON (IG) 11 to 14 V

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE ECM  (See REMOVAL )
