Rear Power Window LH does not Operate with Rear Power Window Switch LH: Wiring Diagram

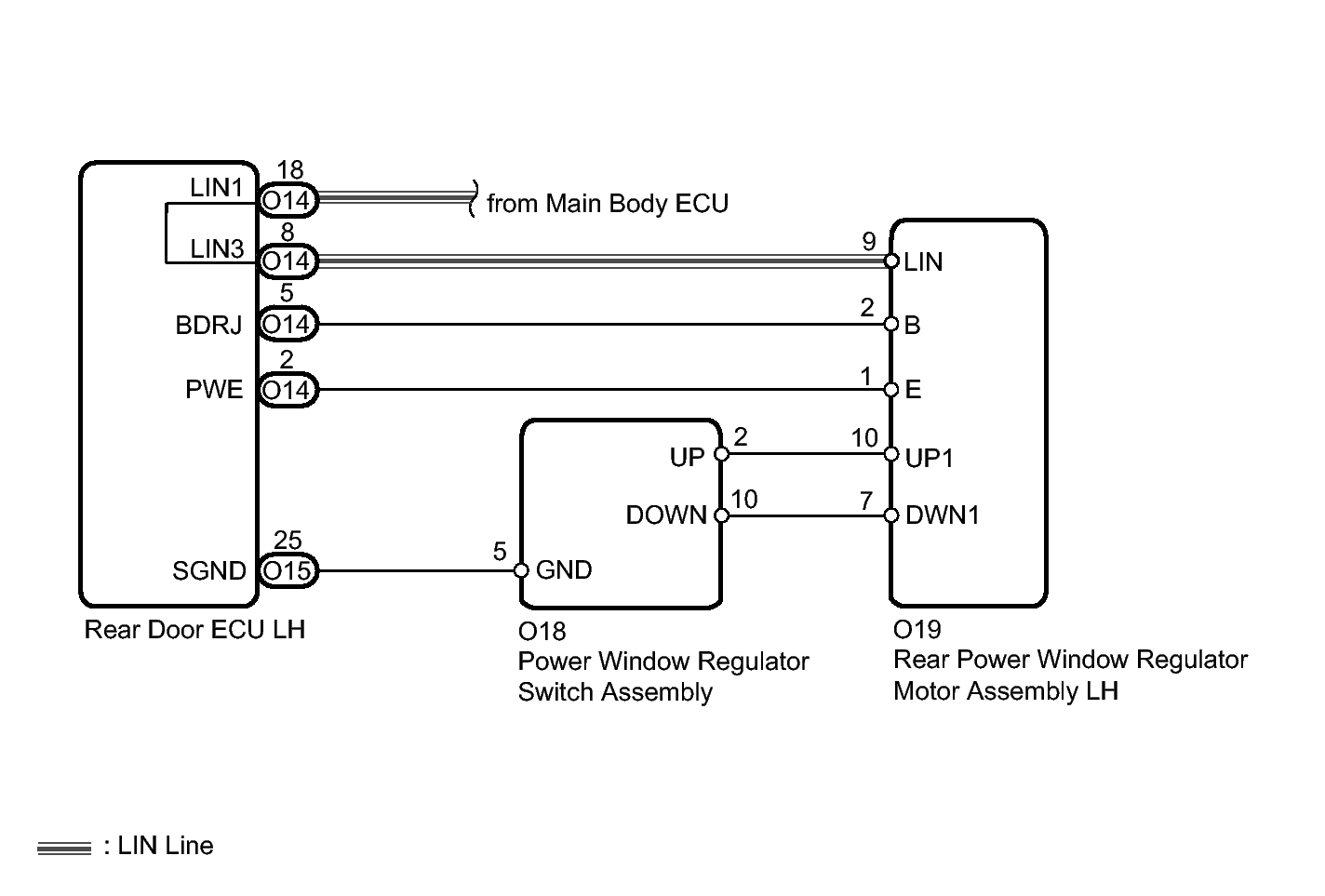

Fig 1: Rear Power Window LH Wiring Diagram

GTY123043

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
