Parts Location: Illustration

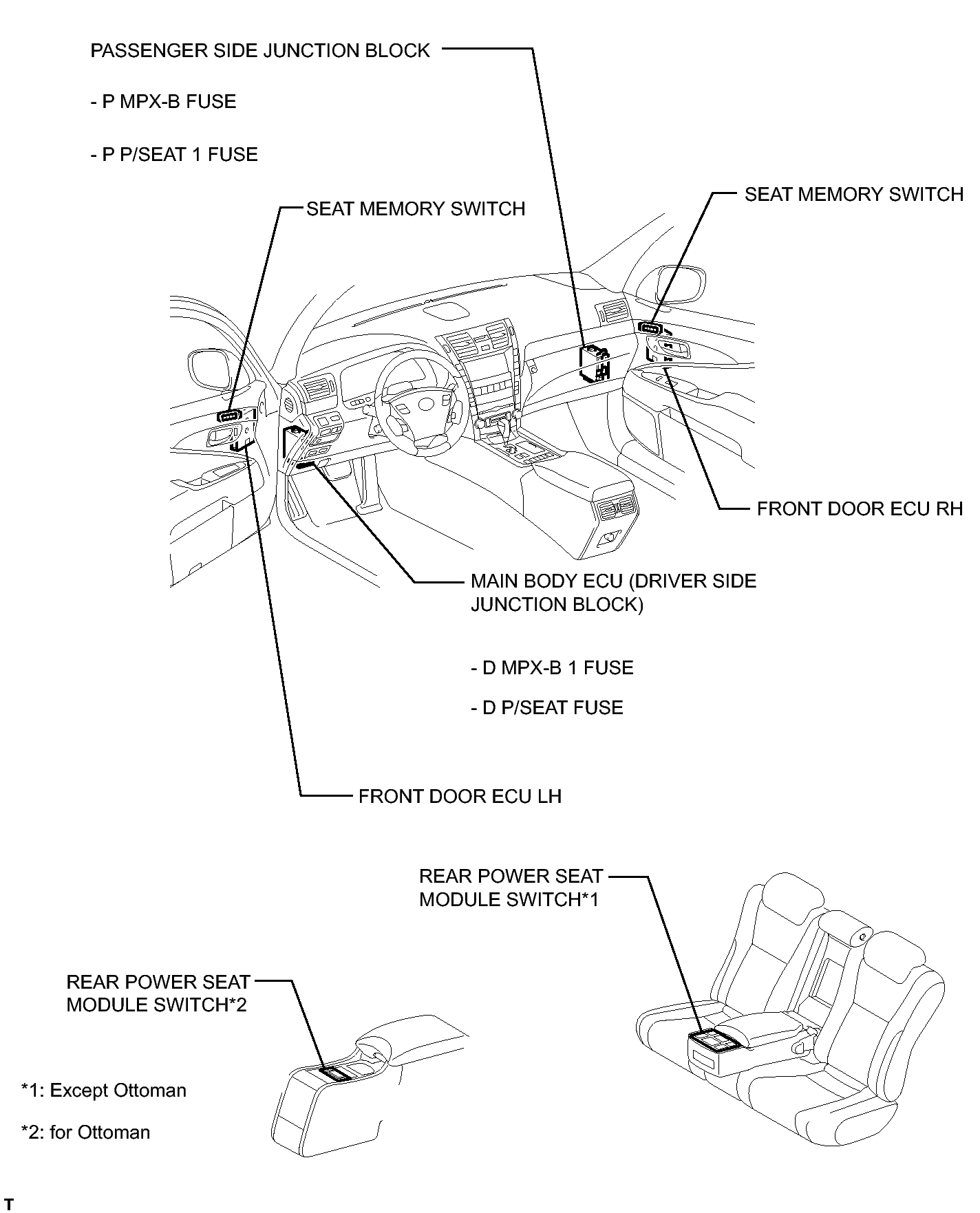

Fig 1: Identifying Front Power Seat Control System Parts Location (1 Of 4)
GTY125228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

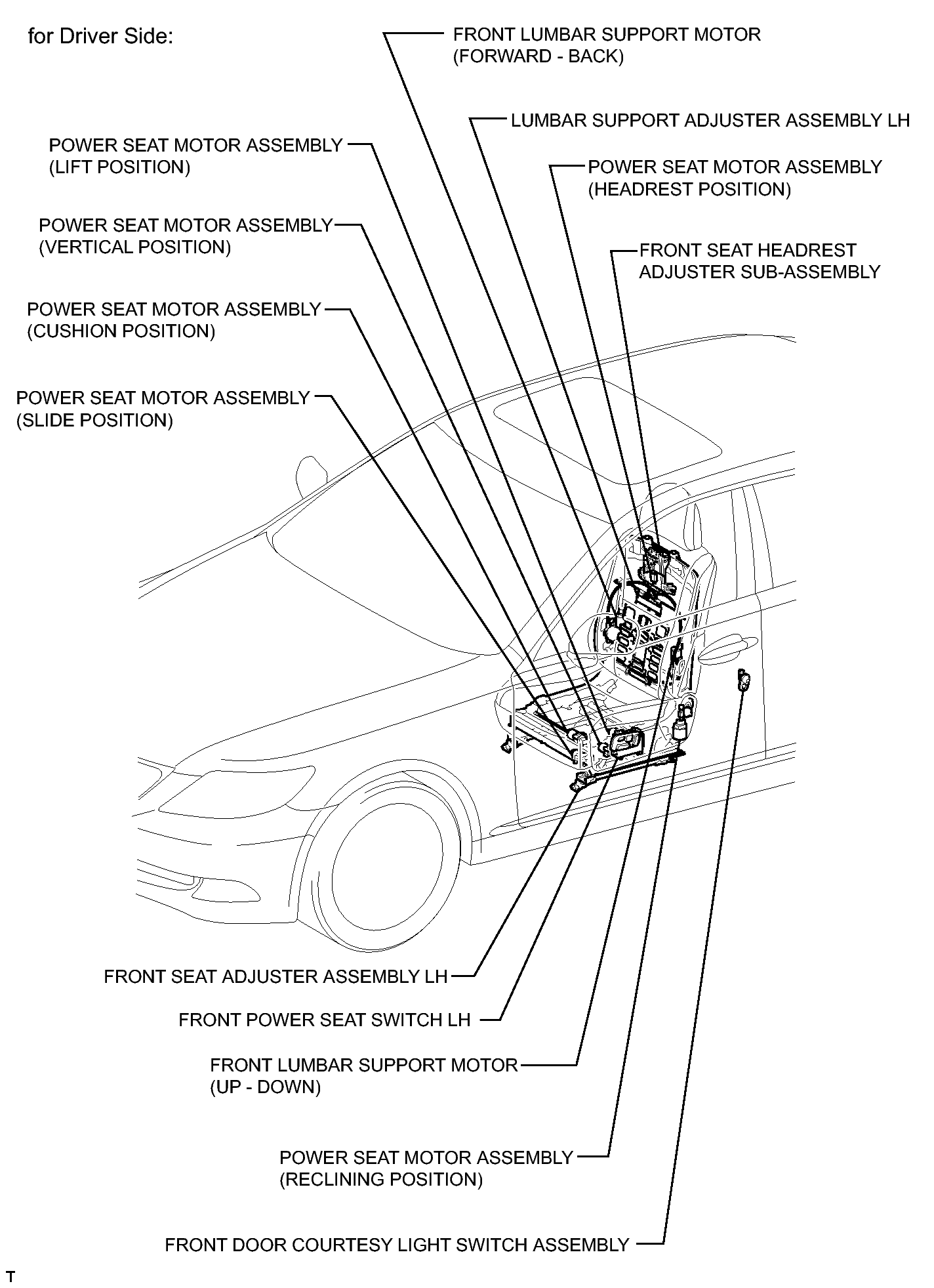

Fig 1: Identifying Front Power Seat Control System Parts Location (2 Of 4)
GTY117329Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

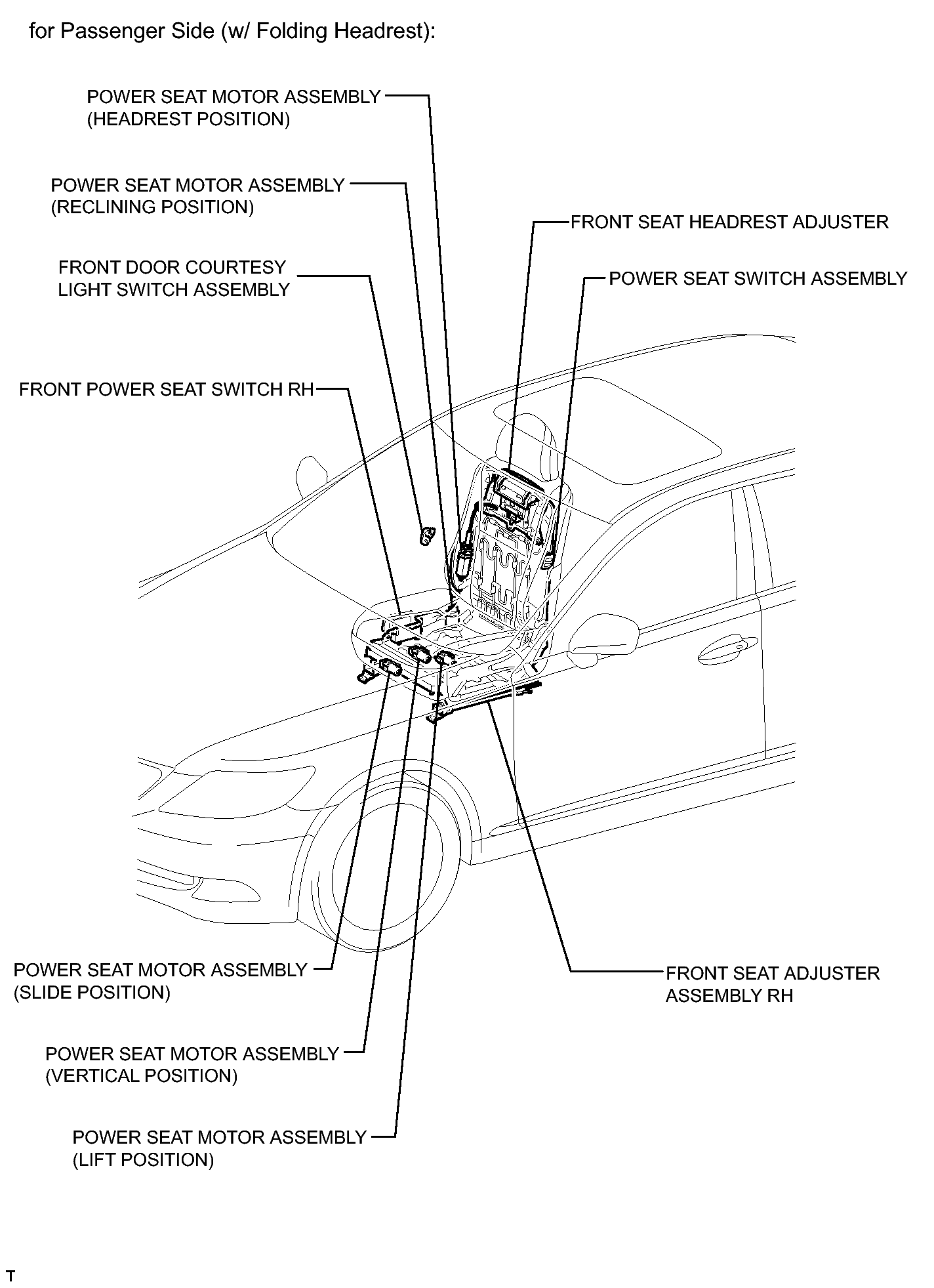

Fig 1: Identifying Front Power Seat Control System Parts Location (3 Of 4)
GTY117330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

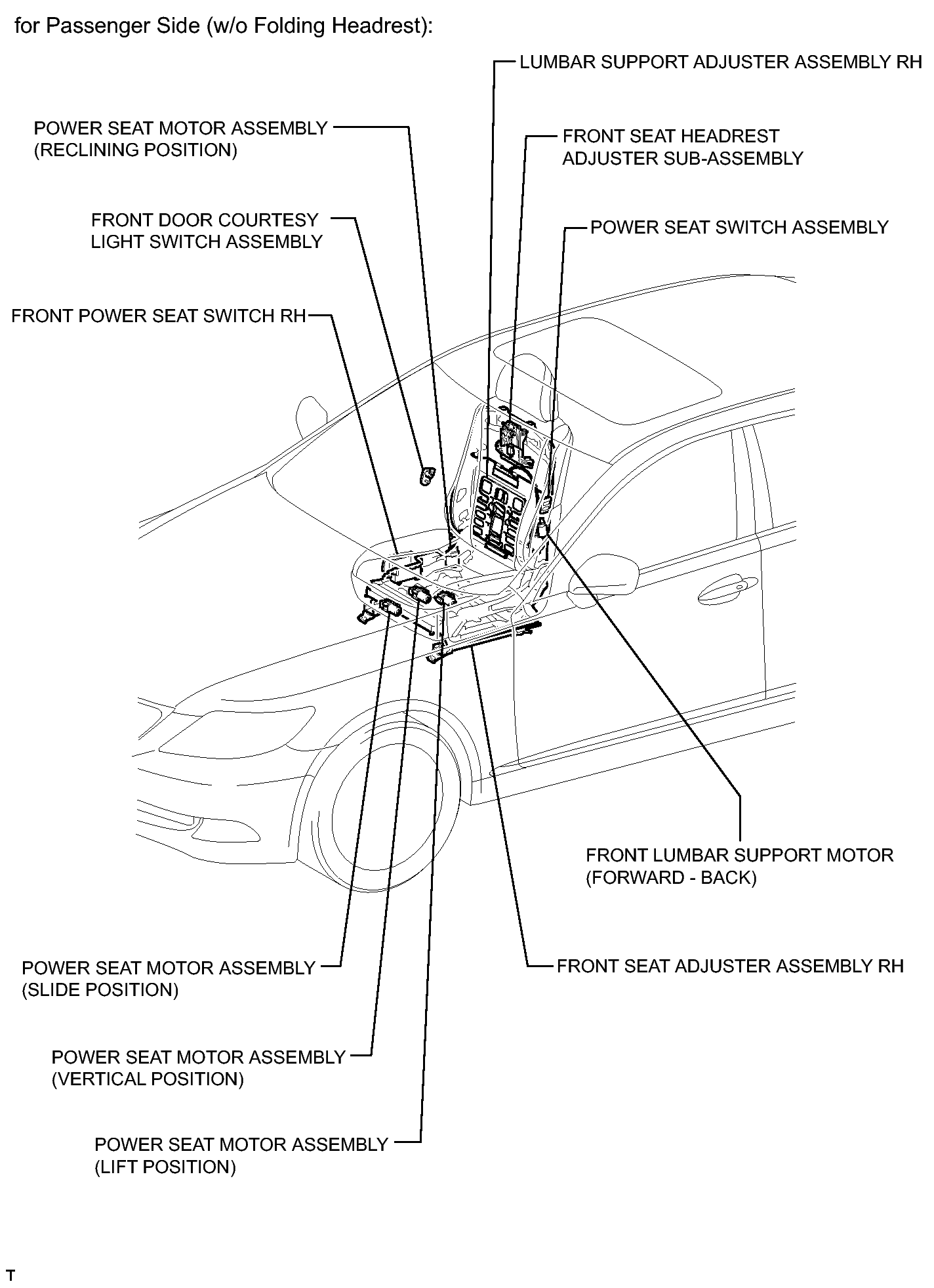

Fig 1: Identifying Front Power Seat Control System Parts Location (4 Of 4)
GTY135775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
