Compressor And Magnetic Clutch: Components

Fig 1: Identifying Compressor And Magnetic Clutch Replacement Components (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

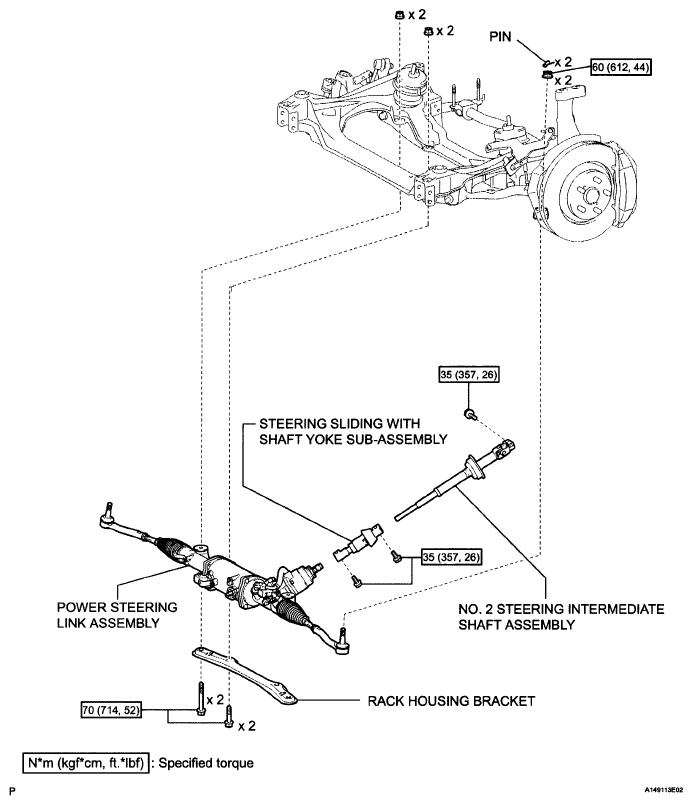

Fig 2: Identifying Compressor And Magnetic Clutch Replacement Components (2 Of 7) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

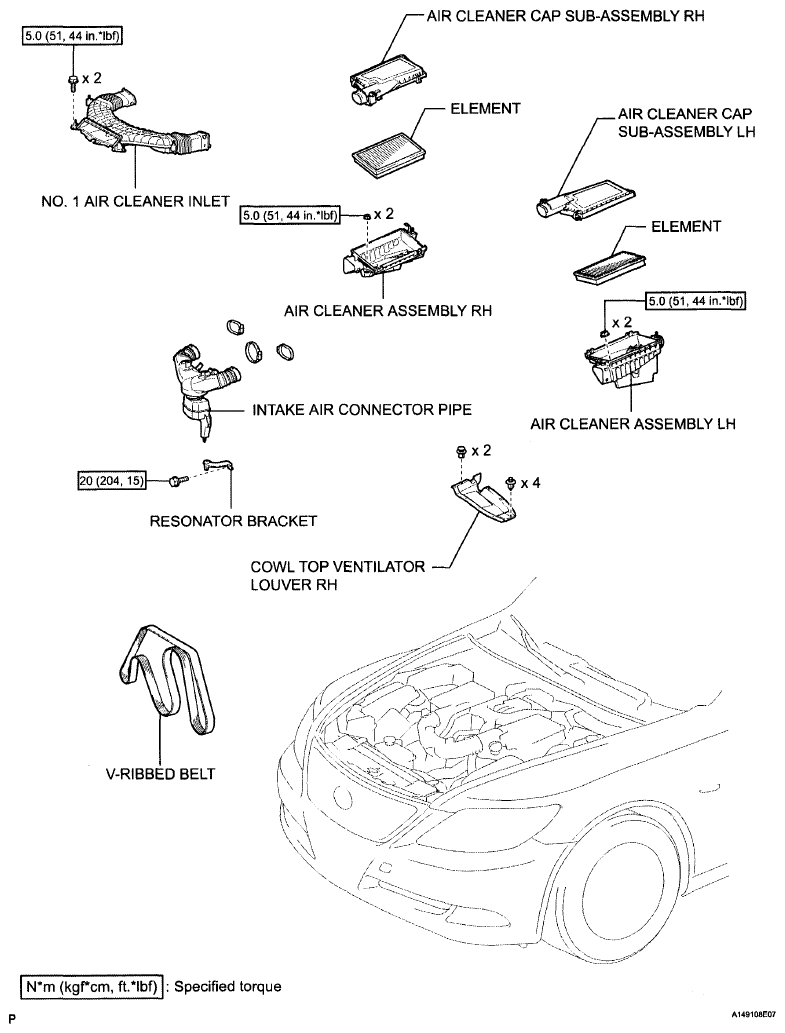

Fig 3: Identifying Compressor And Magnetic Clutch Replacement Components (3 Of 7) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

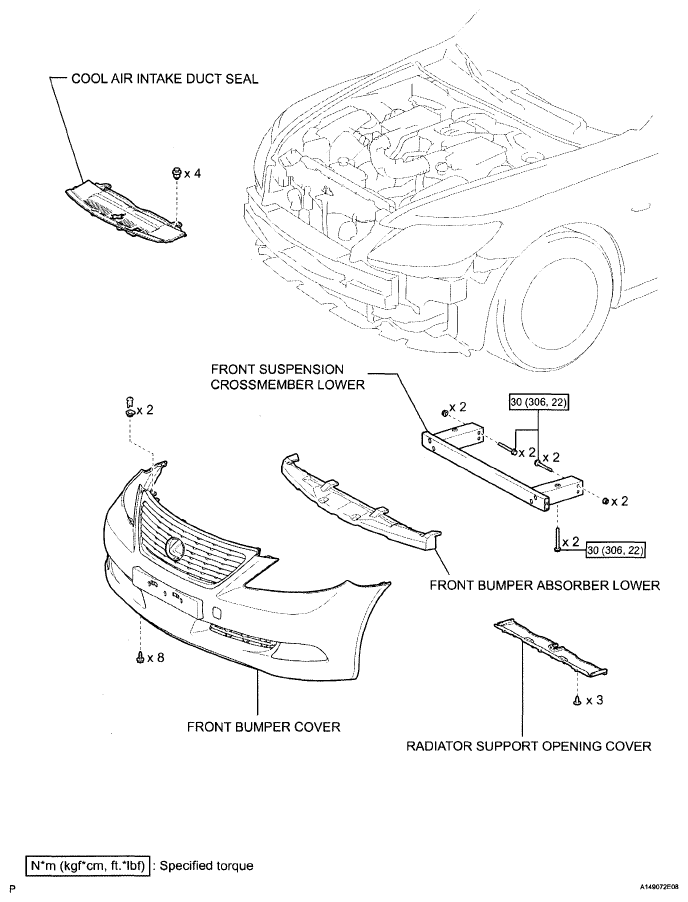

Fig 4: Identifying Compressor And Magnetic Clutch Replacement Components (4 Of 7) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

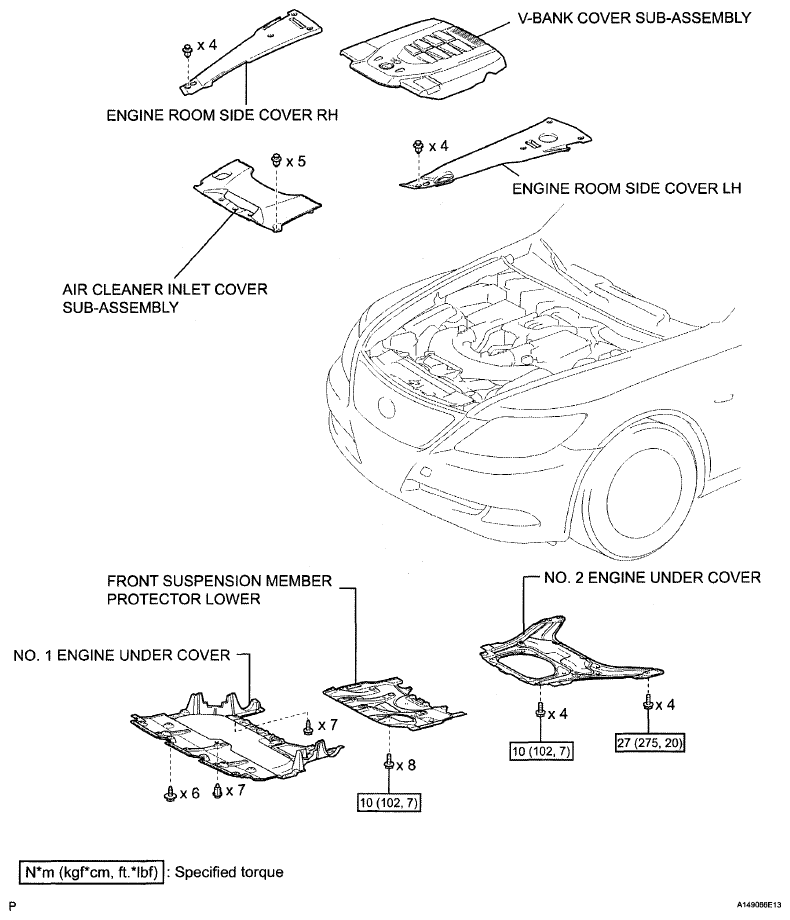

Fig 5: Identifying Compressor And Magnetic Clutch Replacement Components (5 Of 7) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Compressor And Magnetic Clutch Replacement Components (6 Of 7) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Compressor And Magnetic Clutch Replacement Components (7 Of 7) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
