Inspection Procedure

1. Remove the RR MPX-B2 fuse from the luggage room junction block.
2. Measure the resistance of the fuse.

Standard resistance

NG: REPLACE FUSE

OK: Go to Next Step

1. Disconnect the r2*1 or S15*2 rear power seat module connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   w/o Ottoman

   RESISTANCE REFERENCE CHART



   Tester Connection	Condition	Specified Condition
   r2-3 (E) - Body ground	Always	Below 1 Ω

   w/ Ottoman

   RESISTANCE REFERENCE CHART



   Tester Connection	Condition	Specified Condition
   S15-5 (E) - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

Standard voltage

w/o Ottoman

w/ Ottoman

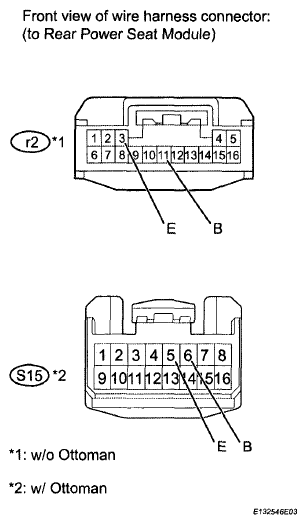

Fig 1: Identifying Rear Power Seat Module Connector Terminals Body Ground And Battery

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Disconnect the r2*1 or S15*2 rear power seat module connector.
2. Disconnect the L76 air conditioning amplifier connector.
3. Measure the resistance according to the value(s) in the table below.

Standard resistance

w/o Ottoman

w/ Ottoman

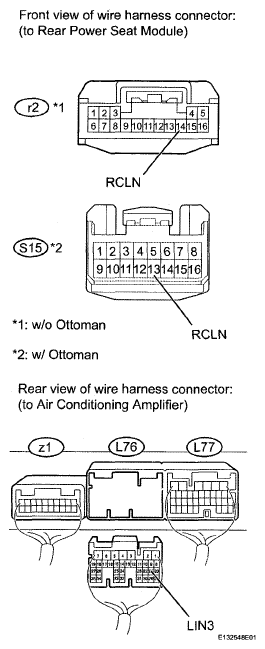

Fig 2: Identifying Air Conditioning Amplifier And Rear Power Seat Module Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Replace the rear power seat module with a new or properly functioning one (see REMOVAL ).
2. Operate the rear power seat module to check that it functions properly.

   OK: Rear power seat module function operates normally.

   NG: REPLACE AIR CONDITIONING AMPLIFIER  (See REMOVAL )

   OK: END (REAR POWER SEAT MODULE IS FAULTY)
