Stop Light Switch: Inspection: Inspection

WARNING: This page is about a different car, the 2010 Lexus LS 460L and 2010 Lexus LS 460. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT STOP LIGHT SWITCH ASSEMBLY

Measure the resistance according to the value(s) in the table below.

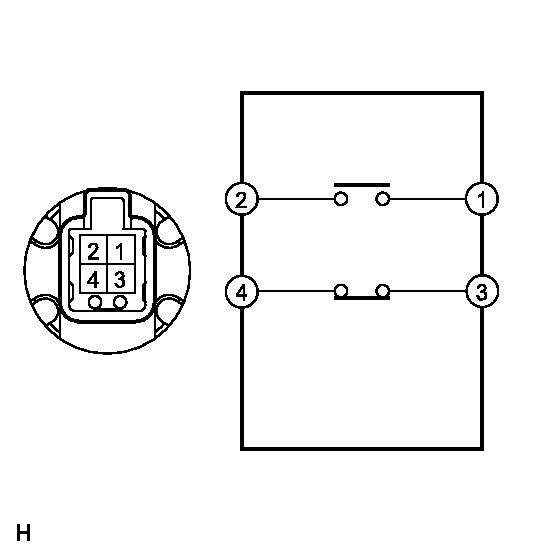

Fig 1: Inspecting Stop Light Switch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Standard resistance

Tester Connection	Condition	Specified Condition
1 - 2	Pin pushed	10 kΩ or higher
1 - 2	Pin not pushed	Below 1 Ω
3 - 4	Pin pushed	Below 1 Ω
3 - 4	Pin not pushed	10 kΩ or higher

If the result is not as specified, replace the stop light switch.
