RADIATOR (for AWD): Components

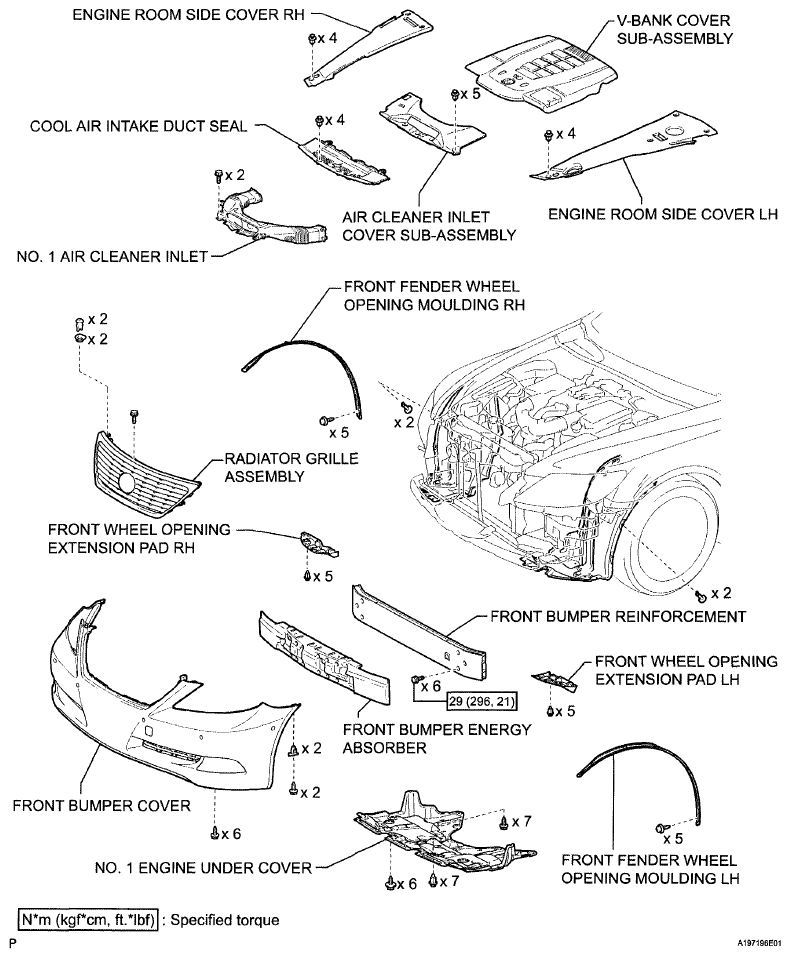

Fig 1: Front Bumper, Fender And Air Cleaner Replacement Components With Torque Specifications
G06196446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

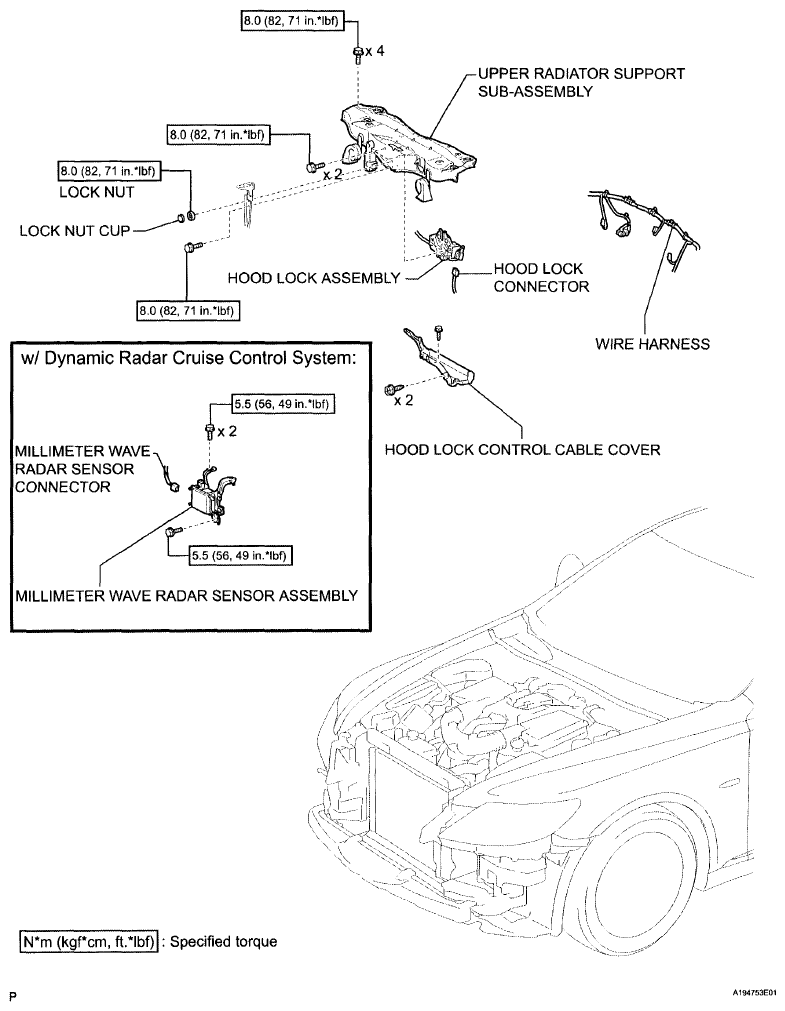

Fig 2: Hood Lock Replacement Components With Torque Specifications
G06196447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

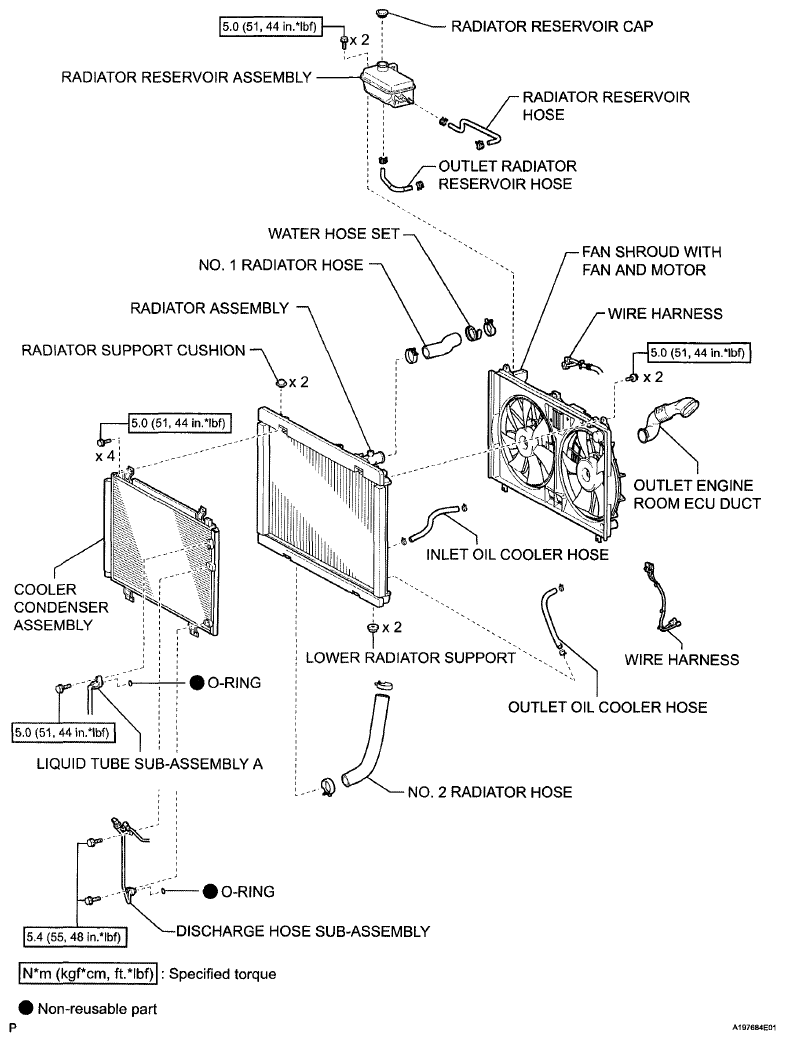

Fig 3: Radiator Replacement Components With Torque Specifications
G06196448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
