Home >> Lexus >> 2009 >> LS 460L AWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Audio/Visual >> Rear Seat Entertainment System >> Sound Signal Circuit between Radio Receiver and Multi-display Controller >> Inspection Procedure

Inspection Procedure

  1. CHECK RADIO RECEIVER
    1. Reconnect the L52 receiver connector.
    2. Using an oscilloscope, check the signal waveform between each terminal and the body ground according to the conditions, as shown in the chart below.
      Fig 1: Identifying R32 Multi-Display Controller Connector
      G04953924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Signal waveform

      SIGNAL WAVEFORM REFERENCE

      Tester Connection Condition Specified Condition
      R32-20 (L4-) - Body ground Audio sound is being produced A waveform synchronized with sound is output
      R32-21 (L4+) - Body ground Audio sound is being produced A waveform synchronized with sound is output
      R32-22 (R4-) - Body ground Audio sound is being produced A waveform synchronized with sound is output
      R32-23 (R4+) - Body ground Audio sound is being produced A waveform synchronized with sound is output

      NG: REPLACE RADIO RECEIVER (See  REMOVAL   )

      OK: Go to Next Step

  2. CHECK SATELLITE RADIO TUNER AND/OR DISC PLAYER
    1. Check if the satellite radio tuner and/or disc player are equipped on the vehicle.

      Result

      RESULT REFERENCE

      Result Proceed to
      w/o Satellite radio tuner, w/o disc player A
      w/ Satellite radio tuner, w/o disc player B
      w/o Satellite radio tuner, w/ disc player C
      w/ Satellite radio tuner, w/ disc player D

      B:  Go to step  4

      C:  Go to step  7

      D:  Go to step  10

      A: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - MULTI-DISPLAY CONTROLLER)
    1. Disconnect the L52 receiver connector.
    2. Disconnect the R32 controller connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      L52-14 (RSLD) - R32-24 (SLD4) Always Below 1 Ω
      L52-15 (R-R+) - R32-23 (R4+) Always Below 1 Ω
      L52-16 (R-R-) - R32-22 (R4-) Always Below 1 Ω
      L52-17 (R-L+) - R32-21 (L4+) Always Below 1 Ω
      L52-18 (R-L-) - R32-20 (L4-) Always Below 1 Ω
      R32-23 (R4+) - Body ground Always 10 kΩ or higher
      R32-22 (R4-) - Body ground Always 10 kΩ or higher
      R32-21 (L4+) - Body ground Always 10 kΩ or higher
      R32-20 (L4-) - Body ground Always 10 kΩ or higher

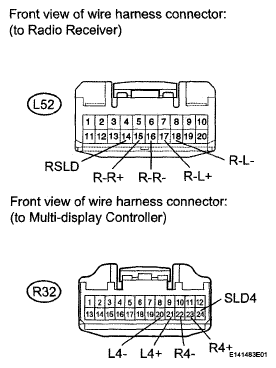

      Fig 2: Identifying L52 Radio Receiver And R32 Multi-Display Controller Connector
      G04953925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: REPLACE MULTI-DISPLAY CONTROLLER (See  REMOVAL   )

  4. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - SATELLITE RADIO TUNER)
    1. Disconnect the L52 receiver connector.
    2. Disconnect the R29 tuner connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      L52-14 (RSLD) - R29-16 (SLD4) Always Below 1 Ω
      L52-15 (R-R+) - R29-17 (RRI+) Always Below 1 Ω
      L52-16 (R-R-) - R29-18 (RRI-) Always Below 1 Ω
      L52-17 (R-L+) - R29-19 (RLI+) Always Below 1 Ω
      L52-18 (R-L-) - R29-20 (RLI-) Always Below 1 Ω
      L52-15 (R-R+) - Body ground Always 10 kΩ or higher
      L52-16 (R-R-) - Body ground Always 10 kΩ or higher
      L52-17 (R-L+) - Body ground Always 10 kΩ or higher
      L52-18 (R-L-) - Body ground Always 10 kΩ or higher

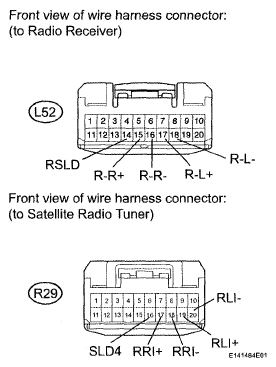

      Fig 3: Identifying L52 Radio Receiver And R29 Satellite Radio Tuner Connector
      G04953926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  5. CHECK HARNESS AND CONNECTOR (SATELLITE RADIO TUNER - MULTI-DISPLAY CONTROLLER)
    1. Disconnect the R29 tuner connector.
    2. Disconnect the R32 controller connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      R29-1 (SLD3) - R32-24 (SLD4) Always Below 1 Ω
      R29-2 (RLO-) - R32-20 (L4-) Always Below 1 Ω
      R29-3 (RLO+) - R32-21 (L4+) Always Below 1 Ω
      R29-4 (RRO-) - R32-22 (R4-) Always Below 1 Ω
      R29-5 (RRO+) - R32-23 (R4+) Always Below 1 Ω
      R32-20 (L4-) - Body ground Always 10 kΩ or higher
      R32-21 (L4+) - Body ground Always 10 kΩ or higher
      R32-22 (R4-) - Body ground Always 10 kΩ or higher
      R32-23 (R4+) - Body ground Always 10 kΩ or higher

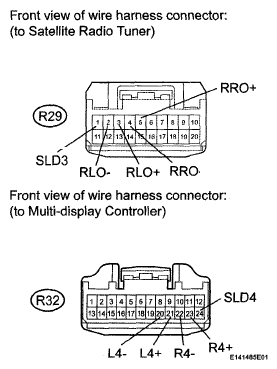

      Fig 4: Identifying R29 Satellite Radio Tuner And R32 Multi-Display Controller Connector
      G04953927Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  6. REPLACE SATELLITE RADIO TUNER WITH NORMAL ONE AND CHECK
    1. Replace the satellite radio tuner with a normal one and check if the same problem occurs again (see REMOVAL  ).

      OK:

      Same problem does not occur.

      NG: REPLACE MULTI-DISPLAY CONTROLLER (See  REMOVAL   )

      OK: END (SATELLITE RADIO TUNER IS DEFECTIVE)

  7. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - DISC PLAYER)
    1. Disconnect the L52 receiver connector.
    2. Disconnect the R16 player connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      L52-14 (RSLD) - R16-19 (SLD1) Always Below 1 Ω
      L52-15 (R-R+) - R16-20 (R2+) Always Below 1 Ω
      L52-16 (R-R-) - R16-21 (R2-) Always Below 1 Ω
      L52-17 (R-L+) - R16-22 (L2+) Always Below 1 Ω
      L52-18 (R-L-) - R16-23 (L2-) Always Below 1 Ω
      L52-15 (R-R+) - Body ground Always 10 kΩ or higher
      L52-16 (R-R-) - Body ground Always 10 kΩ or higher
      L52-17 (R-L+) - Body ground Always 10 kΩ or higher
      L52-18 (R-L-) - Body ground Always 10 kΩ or higher

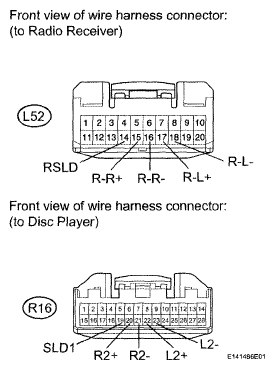

      Fig 5: Identifying L52 Radio Receiver And R16 Disc Player Connector
      G04953928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  8. CHECK HARNESS AND CONNECTOR (DISC PLAYER - MULTI-DISPLAY CONTROLLER)
    1. Disconnect the R16 player connector.
    2. Disconnect the R32 controller connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      R16-13 (L-) - R32-20 (L4-) Always Below 1 Ω
      R16-12 (L+) - R32-21 (L4+) Always Below 1 Ω
      R16-11 (R-) - R32-22 (R4-) Always Below 1 Ω
      R16-10 (R+) - R32-23 (R4+) Always Below 1 Ω
      R16-9 (SLD) - R32-24 (SLD4) Always Below 1 Ω
      R32-20 (L4-) - Body ground Always 10 kΩ or higher
      R32-21 (L4+) - Body ground Always 10 kΩ or higher
      R32-22 (R4-) - Body ground Always 10 kΩ or higher
      R32-23 (R4+) - Body ground Always 10 kΩ or higher

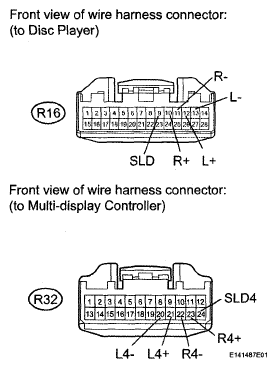

      Fig 6: Identifying R16 Disc Player And R32 Multi-Display Controller Connector
      G04953929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  9. REPLACE DISC PLAYER WITH NORMAL ONE AND CHECK
    1. Replace the disc player with a normal one and check if the same problem occurs again (see REMOVAL  ).

      OK:

      Same problem does not occur.

      NG: REPLACE MULTI-DISPLAY CONTROLLER (See  REMOVAL   )

      OK: END (DISC PLAYER IS DEFECTIVE)

  10. CHECK HARNESS AND CONNECTOR (RADIO RECEIVER - SATELLITE RADIO TUNER)
    1. Disconnect the L52 receiver connector.
    2. Disconnect the R29 tuner connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      L52-14 (RSLD) - R29-16 (SLD4) Always Below 1 Ω
      L52-15 (R-R+) - R29-17 (RRI+) Always Below 1 Ω
      L52-16 (R-R-) - R29-18 (RRI-) Always Below 1 Ω
      L52-17 (R-L+) - R29-19 (RLI+) Always Below 1 Ω
      L52-18 (R-L-) - R29-20 (RLI-) Always Below 1 Ω
      L52-15 (R-R+) - Body ground Always 10 kΩ or higher
      L52-16 (R-R-) - Body ground Always 10 kΩ or higher
      L52-17 (R-L+) - Body ground Always 10 kΩ or higher
      L52-18 (R-L-) - Body ground Always 10 kΩ or higher
      Fig 7: Identifying L52 Radio Receiver And R29 Satellite Radio Tuner Connector
      G04953926Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  11. CHECK HARNESS AND CONNECTOR (SATELLITE RADIO TUNER - DISC PLAYER)
    1. Disconnect the R29 tuner connector.
    2. Disconnect the R16 player connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      R29-1 (SLD3) - R16-19 (SLD1) Always Below 1 Ω
      R29-2 (RLO-) - R16-23 (L2-) Always Below 1 Ω
      R29-3 (RLO+) - R16-22 (L2+) Always Below 1 Ω
      R29-4 (RRO-) - R16-21 (R2-) Always Below 1 Ω
      R29-5 (RRO+) - R16-20 (R2+) Always Below 1 Ω
      R29-2 (RLO-) - Body ground Always 10 kΩ or higher
      R29-3 (RLO+) - Body ground Always 10 kΩ or higher
      R29-4 (RRO-) - Body ground Always 10 kΩ or higher
      R29-5 (RRO+) - Body ground Always 10 kΩ or higher

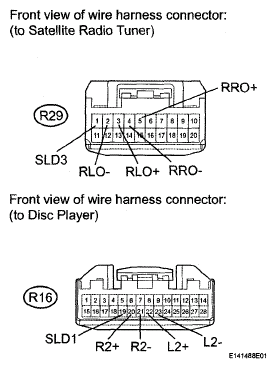

      Fig 8: Identifying R29 Satellite Radio Tuner And R16 Disc Player Connector
      G04953931Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  12. CHECK HARNESS AND CONNECTOR (DISC PLAYER - MULTI-DISPLAY CONTROLLER)
    1. Disconnect the R16 player connector.
    2. Disconnect the R32 controller connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE SPECIFICATION

      Tester Connection Condition Specified Condition
      R16-13 (L-) - R32-20 (L4-) Always Below 1 Ω
      R16-12 (L+) - R32-21 (L4+) Always Below 1 Ω
      R16-11 (R-) - R32-22 (R4-) Always Below 1 Ω
      R16-10 (R+) - R32-23 (R4+) Always Below 1 Ω
      R16-9 (SLD) - R32-24 (SLD4) Always Below 1 Ω
      R32-20 (L4-) - Body ground Always 10 kΩ or higher
      R32-21 (L4+) - Body ground Always 10 kΩ or higher
      R32-22 (R4-) - Body ground Always 10 kΩ or higher
      R32-23 (R4+) - Body ground Always 10 kΩ or higher
      Fig 9: Identifying R16 Disc Player And R32 Multi-Display Controller Connector
      G04953929Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to Next Step

  13. REPLACE SATELLITE RADIO TUNER WITH NORMAL ONE AND CHECK
    1. Replace the satellite radio tuner with a normal one and check if the same problem occurs again (see REMOVAL  ).

      OK:

      Same problem does not occur.

      NG: Go to step 14

      OK: END (SATELLITE RADIO TUNER IS DEFECTIVE)

  14. REPLACE DISC PLAYER WITH NORMAL ONE AND CHECK
    1. Replace the disc player with a normal one and check if the same problem occurs again (see REMOVAL  ).

      OK:

      Same problem does not occur.

      NG: REPLACE MULTI-DISPLAY CONTROLLER (See  REMOVAL   )

      OK: END (DISC PLAYER IS DEFECTIVE)
