Front Passenger Side Door Entry Lock and Unlock Functions do not Operate: Wiring Diagram

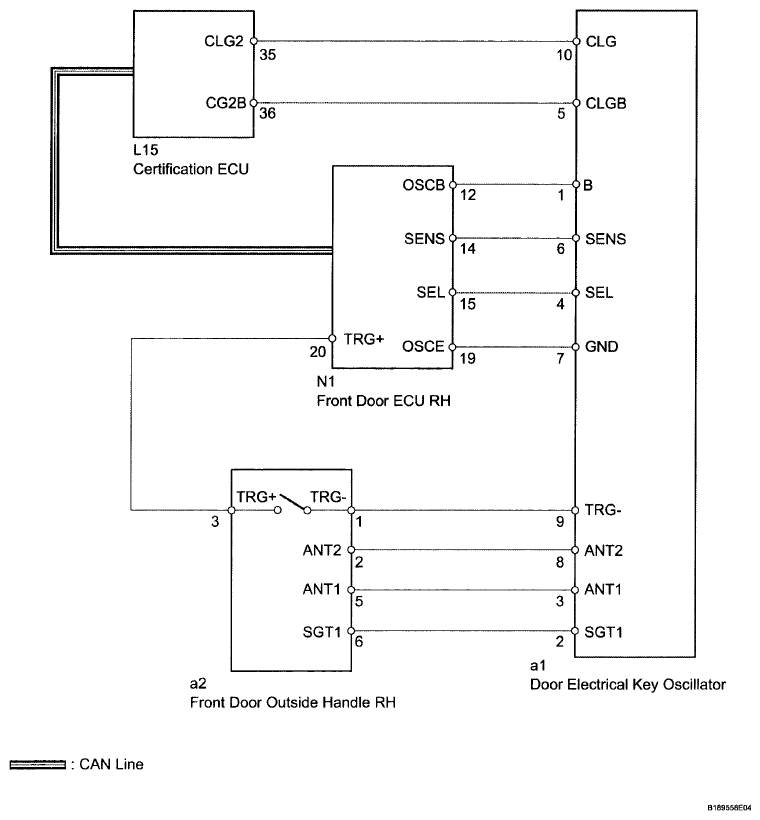

Fig 1: Front Passenger Side Door Electrical Key Oscillator - Wiring Diagram
G06193960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
