Inspection Procedure
- PERFORM ACTIVE TEST USING TECHSTREAM (REAR DOOR LOCK LH)
- Select the Active Test, use the Techstream to generate a control command, and then check the door lock motor function.
Rear Right Door (Rear door ECU RH)
REAR RIGHT DOOR (REAR DOOR ECU RH) ACTIVE TEST REFERENCETester Display Test Part Control Range Diagnostic Note Door Lock Operate door lock motor Lock or Unlock - Result
RESULT CHARTResult Proceed to Rear door lock LH operates normally OK Rear door lock LH does not operate normally NG NG: Go to step 4
OK: Go to next step
- Select the Active Test, use the Techstream to generate a control command, and then check the door lock motor function.
- READ VALUE USING TECHSTREAM (DOOR LOCK POSITION SWITCH)
- Use the Data List to check if the door lock position switch is functioning properly.
Rear Left Door (Rear door ECU LH)
REAR LEFT DOOR (REAR DOOR ECU LH) DATA LIST REFERENCETester Display Measurement Item/Range Normal Condition Diagnostic Note Lock Position SW Rear LH side door lock position switch signal/ON or OFF ON: Rear door LH side door is unlocked
OFF: Rear door LH side door is locked- OK: On tester screen, item changes between ON and OFF according to above chart.
NG: Go to step 8
OK: Go to next step
- Use the Data List to check if the door lock position switch is functioning properly.
- CHECK REAR DOOR ECU LH (OPERATION)
- Replace the rear door ECU LH with a normal one (see REMOVAL ).
- Check that all doors can be locked and unlocked by using the master switch.
OK: All doors can be locked and unlocked with master switch.
NG: REPLACE MAIN BODY ECU
OK: END (REAR DOOR ECU LH IS DEFECTION)
- INSPECT FUSE (D RR DOOR)
- CHECK HARNESS AND CONNECTOR (REAR DOOR ECU LH - BATTERY)
- INSPECT REAR DOOR LOCK ASSEMBLY LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

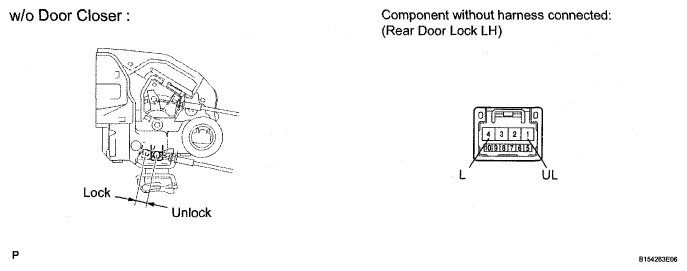

- w/o Door Closer:
- Apply battery voltage to the door lock motor and check operation of the door lock motor.
OK
MEASUREMENT AND SPECIFIED CONDITIONMeasurement Condition Specified Condition Battery positive (+) → Terminal 4 (L)
Battery negative (-) → Terminal 1 (UL)Lock Battery negative (+) → Terminal 1 (UL)
Battery positive (-) → Terminal 4 (L)Unlock
- Apply battery voltage to the door lock motor and check operation of the door lock motor.

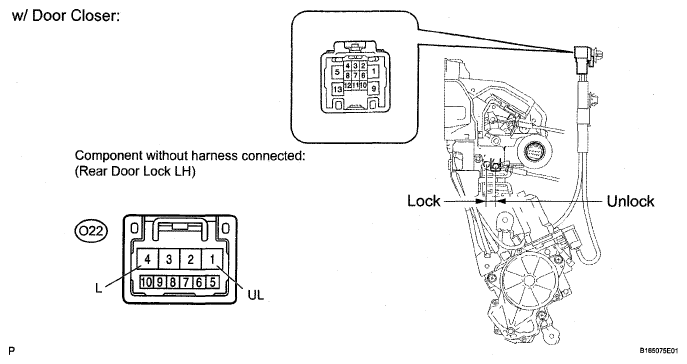

- w/ Door Closer
- Apply battery voltage to the door lock motor and check operation of the door lock motor.
OK
MEASUREMENT AND SPECIFIED CONDITIONMeasurement Condition Specified Condition Battery positive (+) → Terminal O22-4 (L)
Battery positive (-) → Terminal 022-1 (UL)Lock Battery positive (+) → Terminal 022-1 (UL)
Battery positive (-) → Terminal O22-4 (L)Unlock NG: REPLACE REAR DOOR LOCK ASSEMBLY LH (See REMOVAL )
OK: Go to next step
- Apply battery voltage to the door lock motor and check operation of the door lock motor.
- w/o Door Closer:

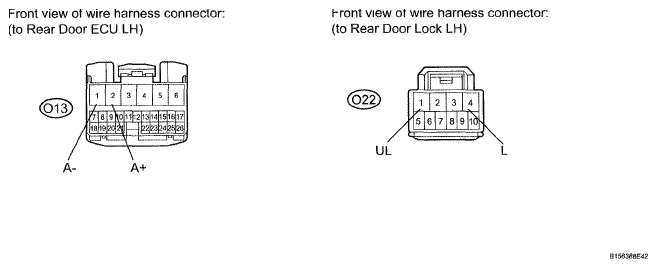

- CHECK HARNESS AND CONNECTOR (REAR DOOR ECU LH - REAR DOOR LOCK LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the 013 ECU connector.
- Disconnect the 022 door lock connector.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition O22-1 (UL) - 013-1 (A-) Always Below 1 Ω O22-4 (L) - 013-2 (A+) Always Below 1 Ω O22-1 (UL) - Body ground Always 10 kΩ or higher O22-4 (L) - Body ground Always 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE REAR DOOR ECU LH (See REMOVAL )

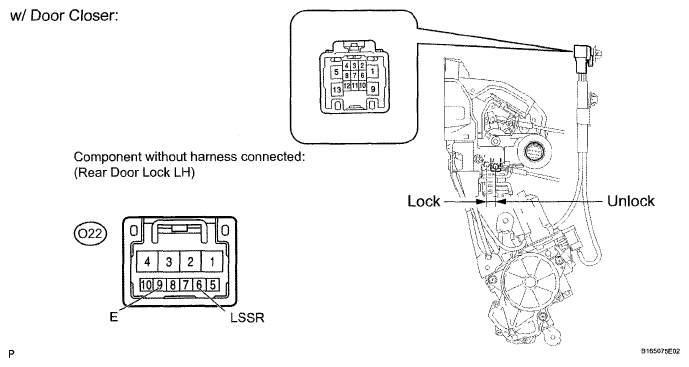

- INSPECT REAR DOOR LOCK ASSEMBLY LH (DOOR LOCK POSITION SWITCH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- w/o Door Closer:
- w/ Door Closer:
- Measure the resistance according to the value (s) in the table below.
Standard resistance
RESISTANCE SPECIFICATIONTester Connection Switch Condition Specified Condition O22-6 (LSSR) - 022-9 (E) Unlock Below 1 Ω O22-6 (LSSR) - 022-9 (E) Lock 10 kΩ or higher NG: REPLACE REAR DOOR LOCK ASSEMBLY LH (See REMOVAL )
OK: Go to next step
- Measure the resistance according to the value (s) in the table below.
- CHECK HARNESS AND CONNECTOR (REAR DOOR ECU LH - REAR DOOR LOCK LH)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the O13 ECU connector.
- Disconnect the 022 door lock connector.
- Measure the resistance according to the value (s) in the table below.
Standard resistance
RESISTANCE SPECIFICATIONTester Connection Condition Specified Condition O22-6 (LSSR) - O13-14 (LSW) Always Below 1 Ω O22-9 (E) - O13-23 (LSWE) Always Below 1 Ω O22-6 (LSSR) - Body ground Always 10 kΩ or higher O22-9 (E) - Body ground Always 10 kΩ or higher NG: REPAIR OR REPLACE HARNESS OR CONNECTOR
OK: REPLACE REAR DOOR ECU LH (See REMOVAL )
