Only Driver Door LOCK/UNLOCK Functions do not Operate: Wiring Diagram

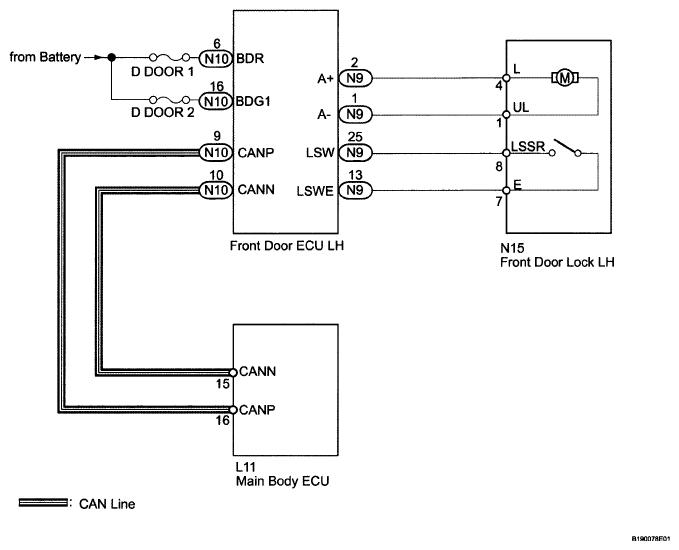

Fig 1: Front Door Lock Motor - Wiring Diagram

G05852676

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
