Inspection Procedure

CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY CONTROLLER - TELEVISION DISPLAY ASSEMBLY)

Disconnect the R33 controller connector.
Disconnect the R19 display connector.

Measure the resistance according to the value (s) in the table below.

Standard resistance

STANDARD RESISTANCE SPECIFICATION

Tester Connection	Condition	Specified Condition
R33-1 (SLD1) - R19-7 (SLD1)	Always	Below 1 Ω
R33-3 (L1+) - R19-5 (L1+)	Always	Below 1 Ω
R33-2 (L1-) - R19-6 (L1-)	Always	Below 1 Ω
R33-5 (R1+) - R19-3 (R1+)	Always	Below 1 Ω
R33-4 (R1-) - R19-4 (R1-)	Always	Below 1 Ω
R33-3 (L1+) - Body ground	Always	10 kΩ or higher
R33-2 (L1-) - Body ground	Always	10 kΩ or higher
R33-5 (R1+) - Body ground	Always	10 kΩ or higher
R33-4 (R1-) - Body ground	Always	10 kΩ or higher

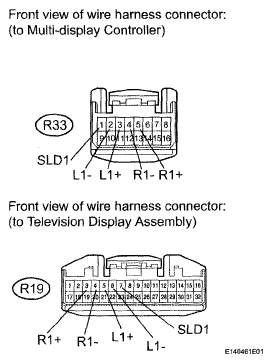

Fig 1: Identifying R33 Multi-Display Controller And R19 Television Display Assembly Connector

G04953919

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
