Climate Control Seat System does not Operate: Wiring Diagram

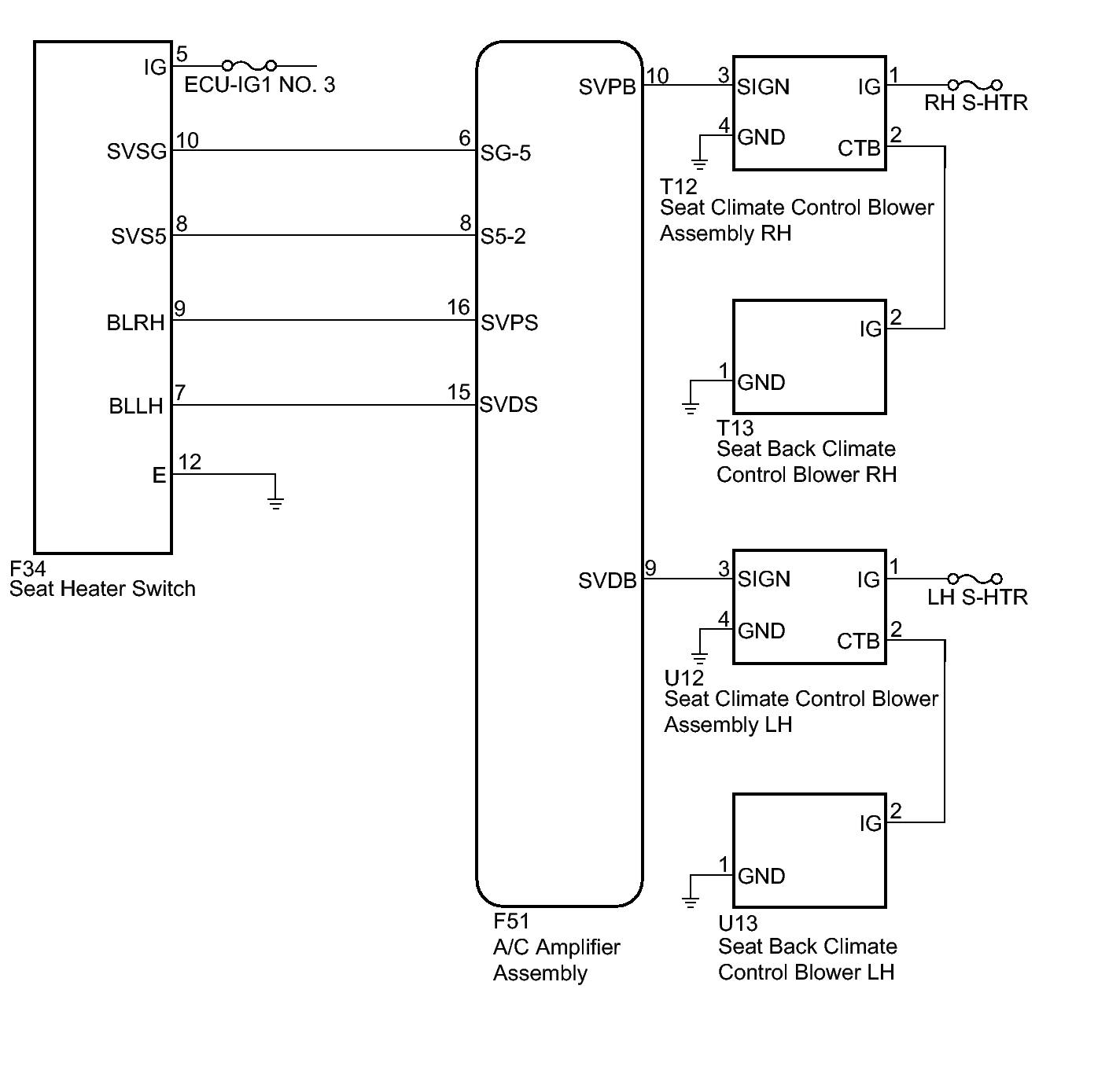

Fig 1: Climate Control Seat Wiring Diagram

GTY136532

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
