Parts Location: Illustration

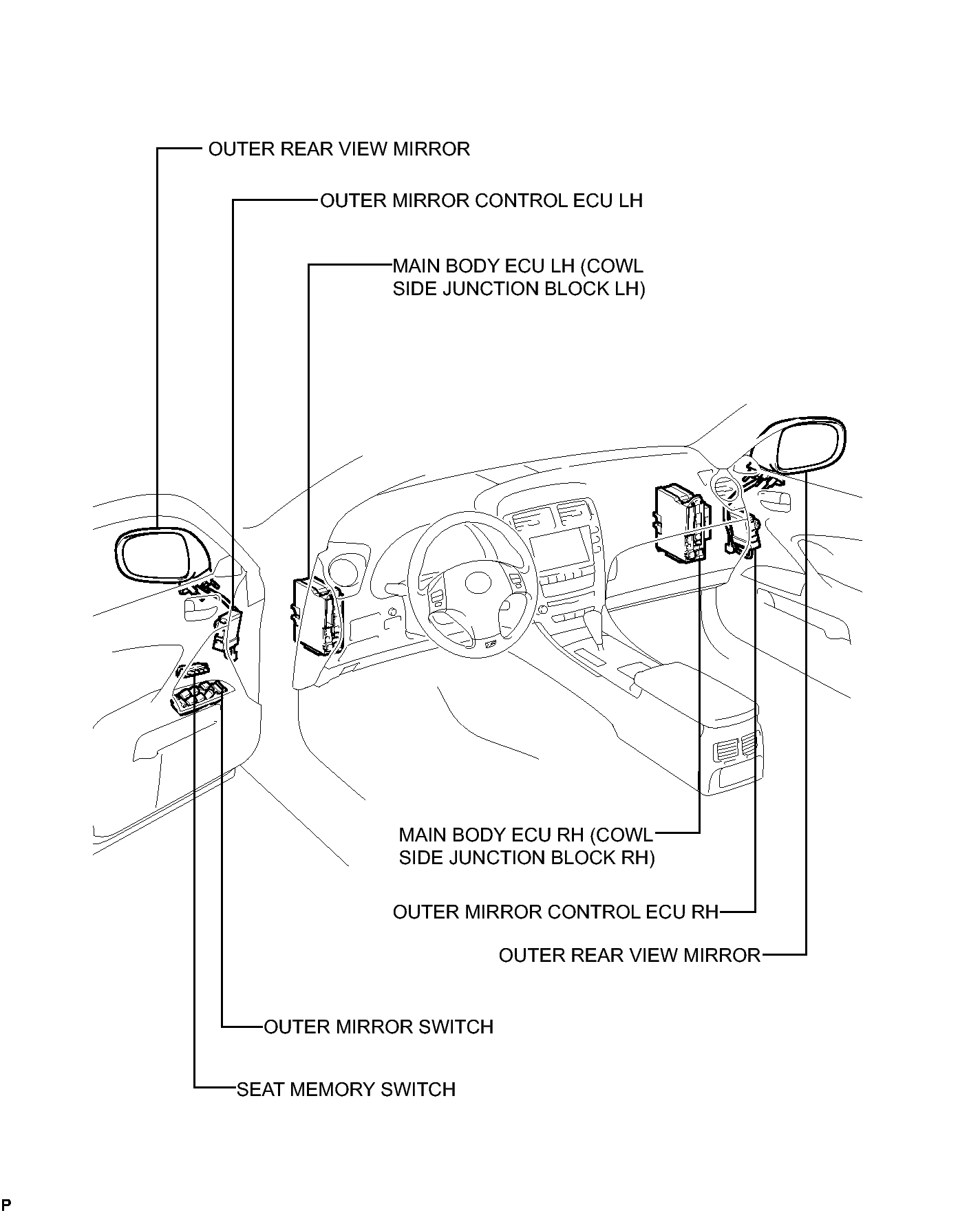

Fig 1: Locating Power Mirror Control System Parts (1 Of 2)
GTY114668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

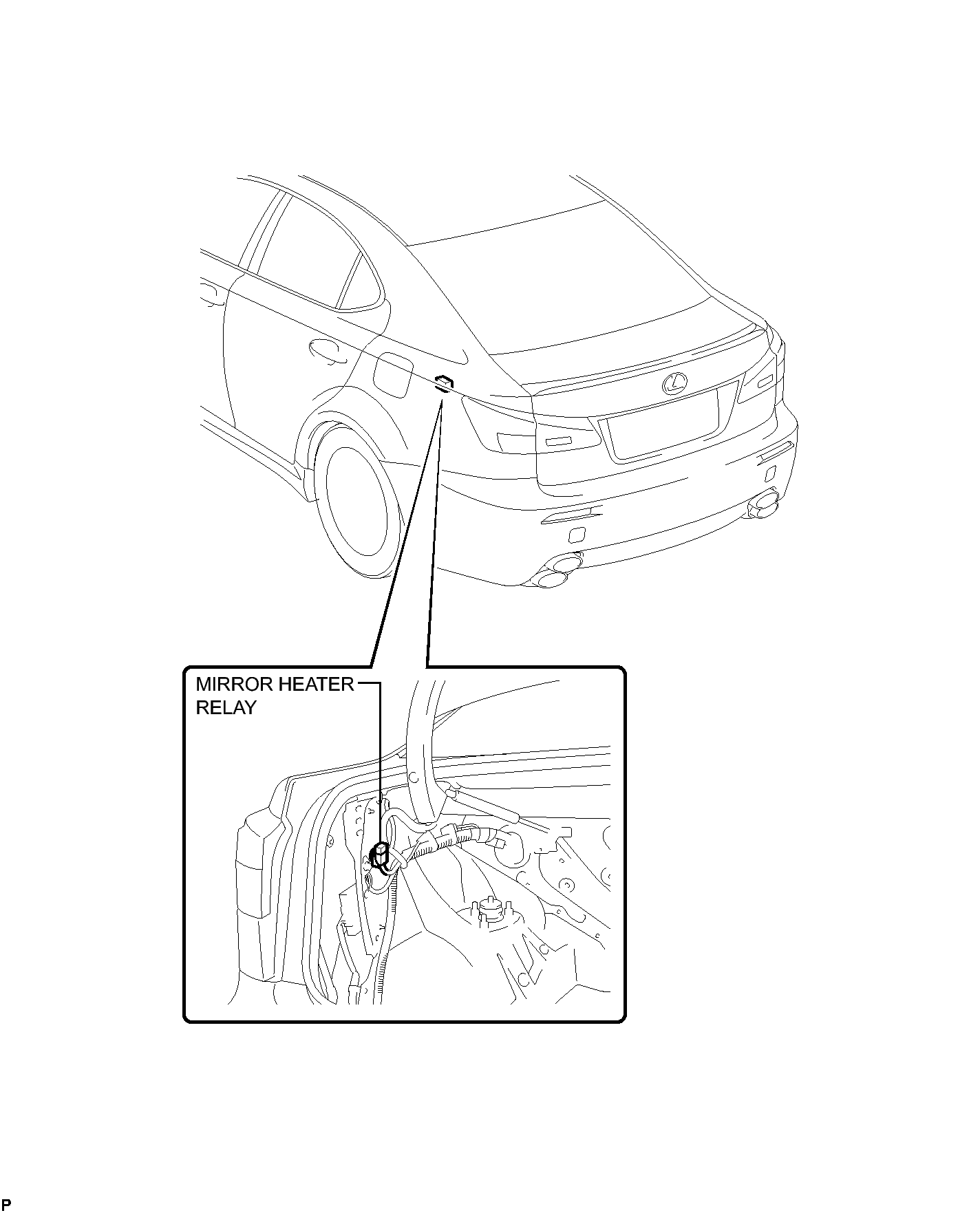

Fig 1: Locating Power Mirror Control System Parts (2 Of 2)
GTY141407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
