Parts Location: Illustration

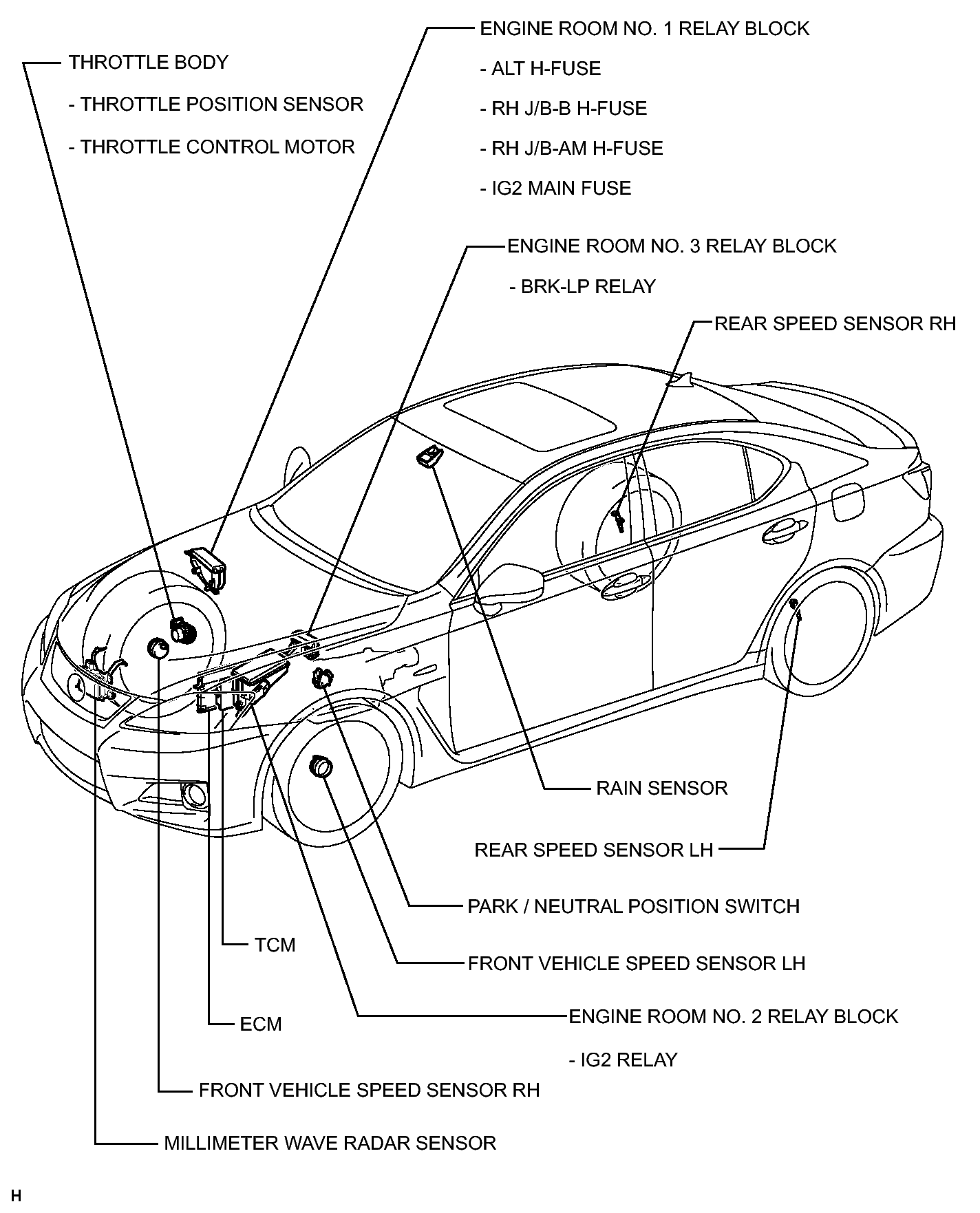

Fig 1: Locating Dynamic Radar Cruise Control System Parts (1 Of 3)
GTY140569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

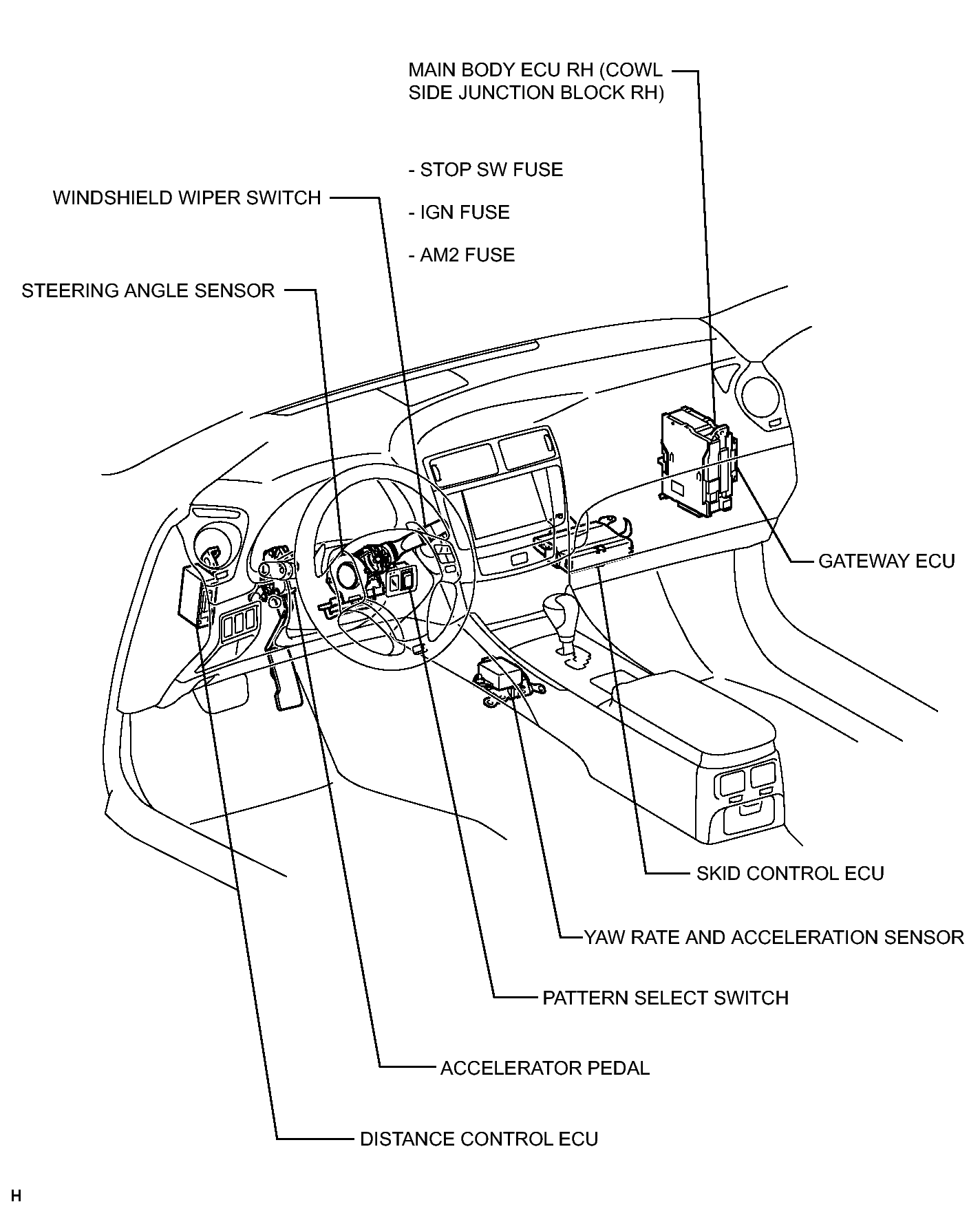

Fig 1: Locating Dynamic Radar Cruise Control System Parts (2 Of 3)
GTY134537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

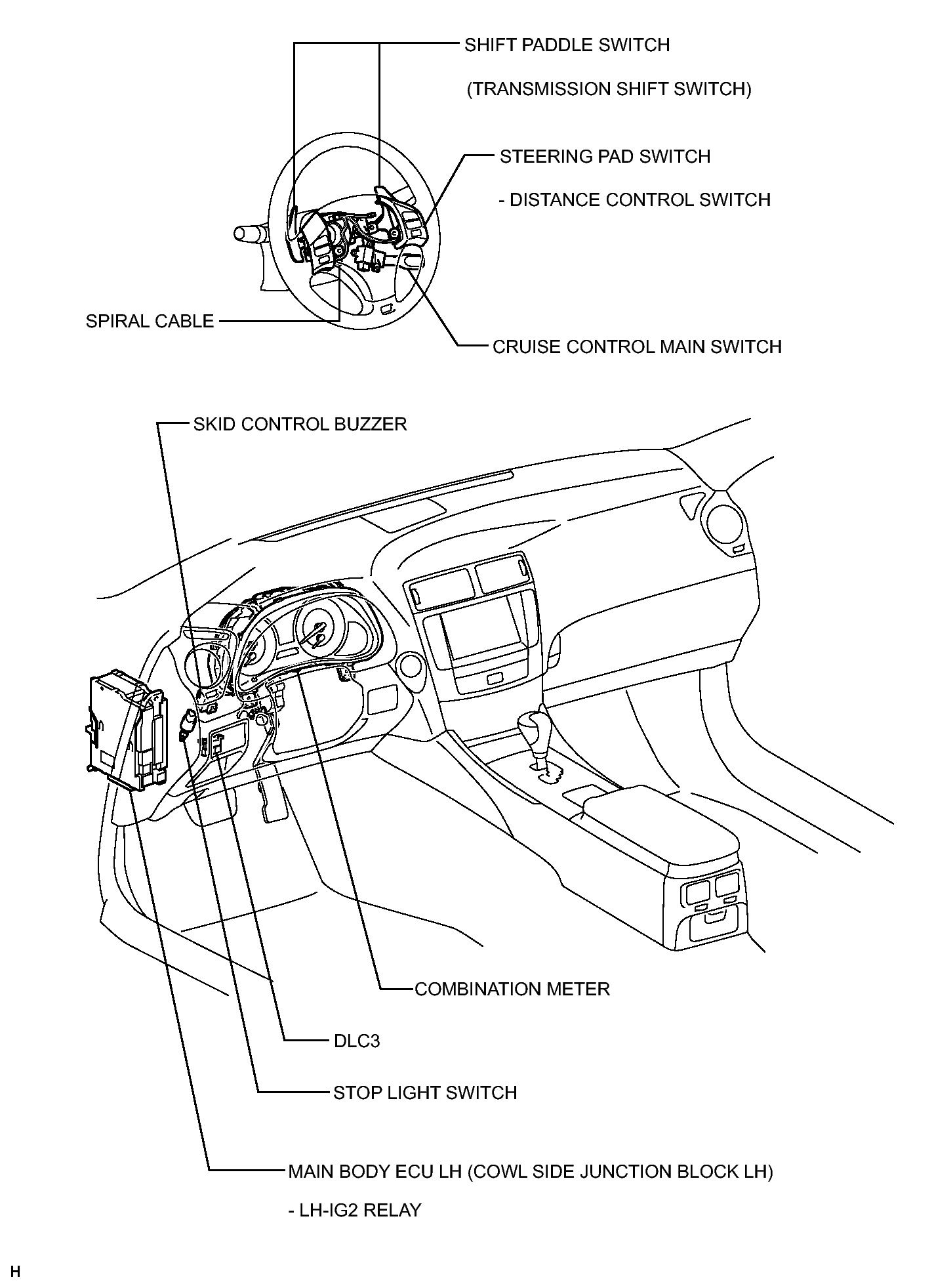

Fig 1: Locating Dynamic Radar Cruise Control System Parts (3 Of 3)
GTY153567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
