Distance Control Switch Circuit: Wiring Diagram

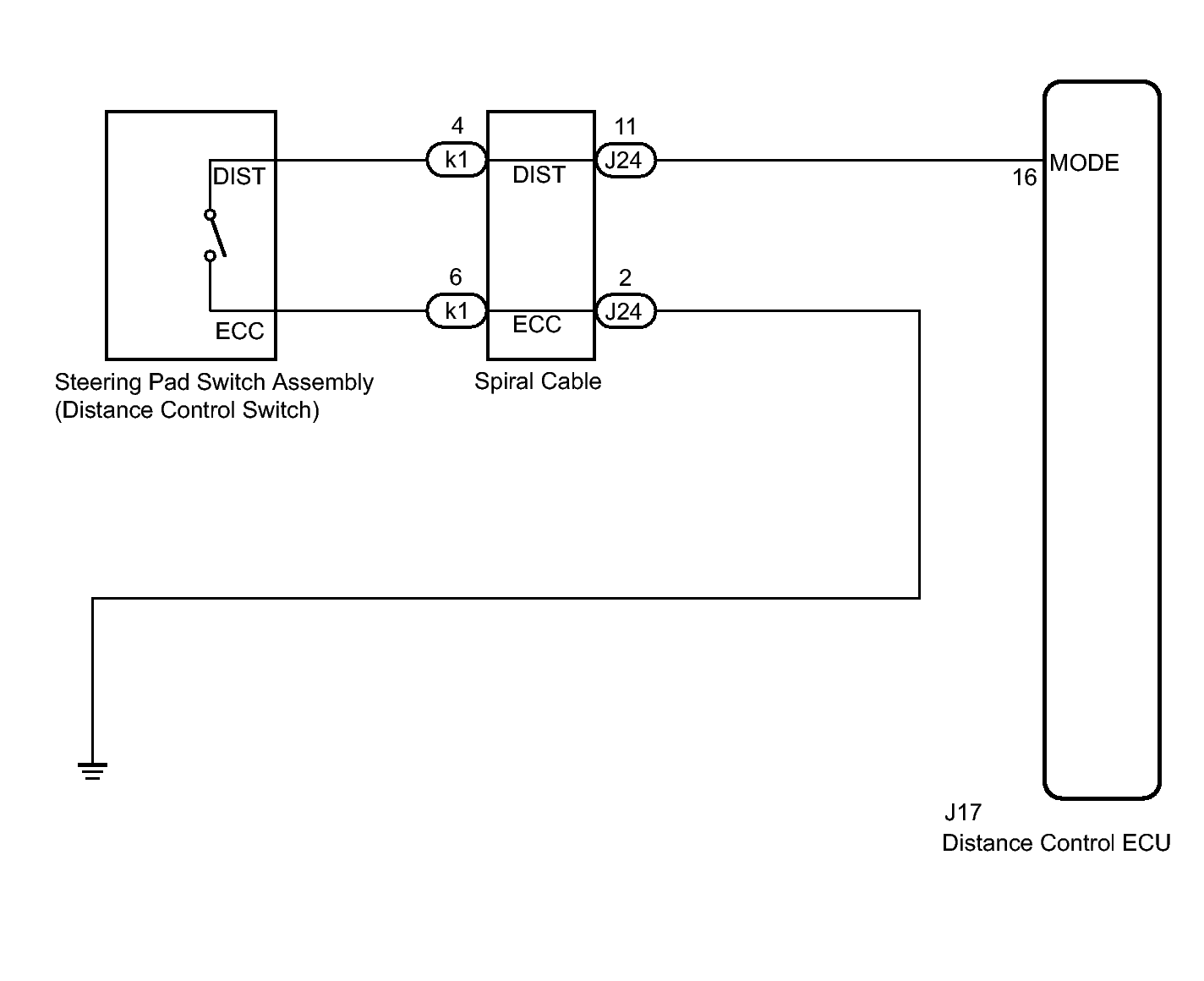

Fig 1: Distance Control Switch -- Wiring Diagram

GTY125837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
