System Diagram

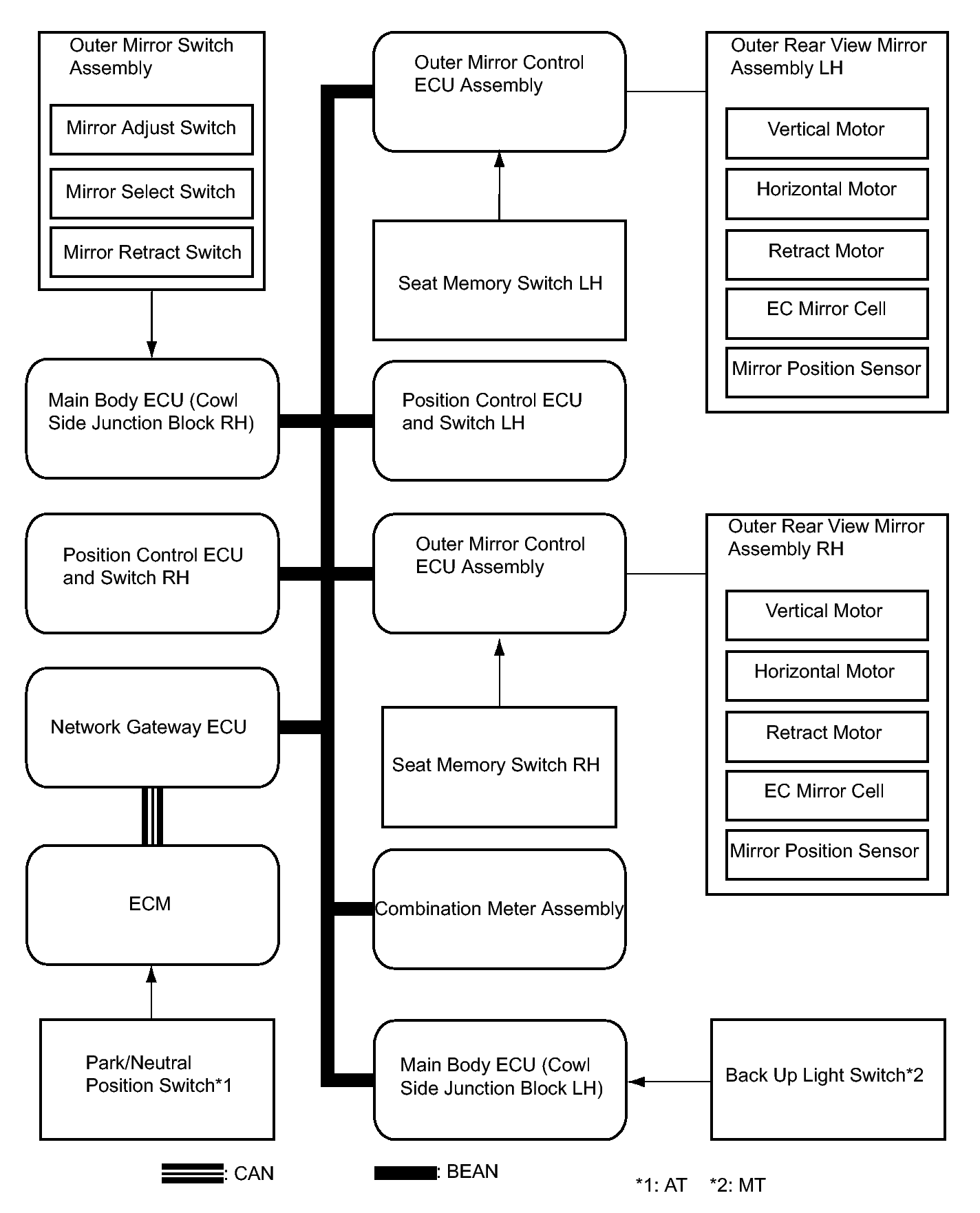

Fig 1: Identifying Power Mirror Control System Diagram (1 Of 2)
GTY141680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

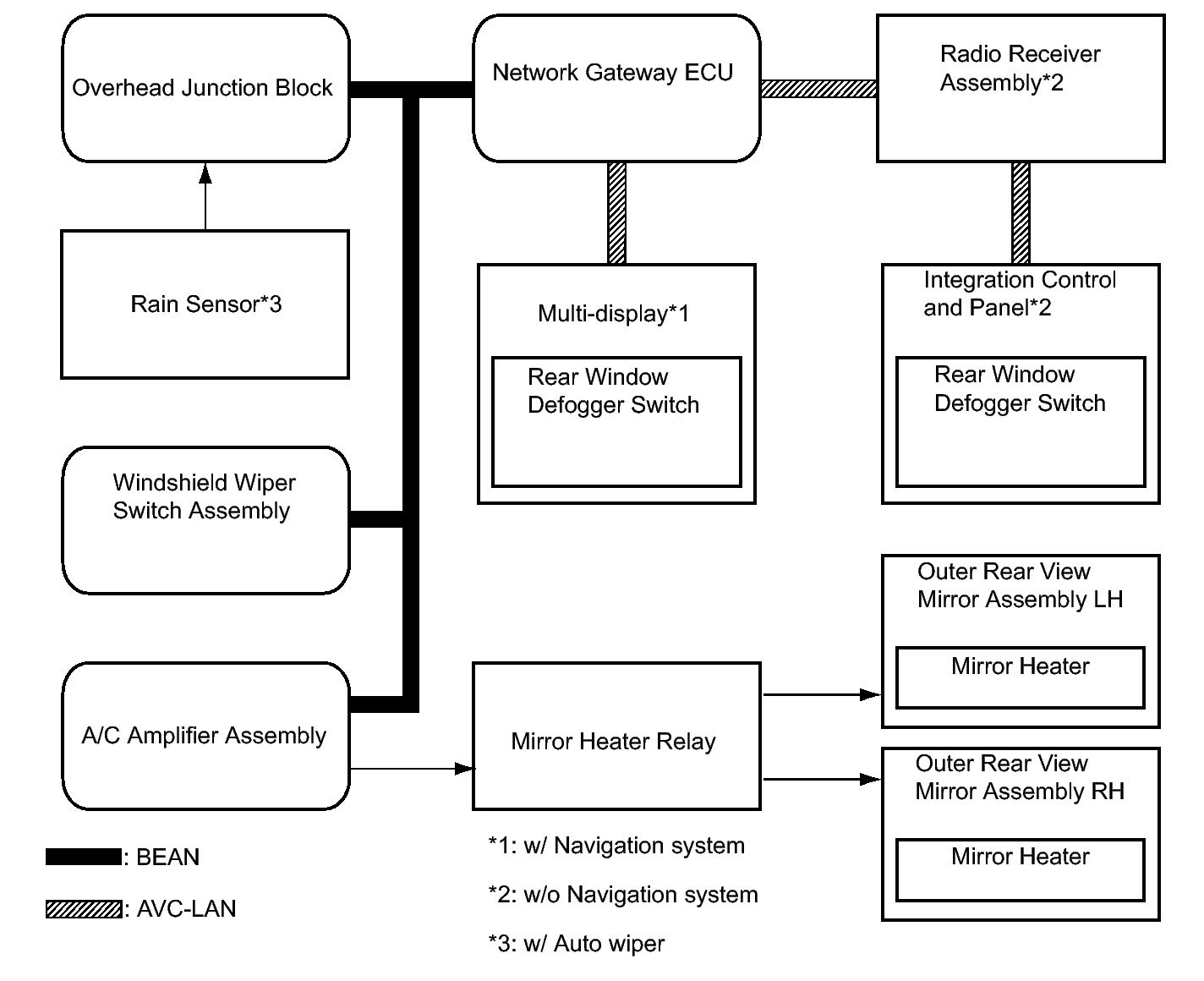

Fig 2: Identifying Power Mirror Control System Diagram (2 Of 2)
GTY122218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Sender Receiver Signal Line
Combination meter Outer mirror control ECU assembly (driver side) Auto electric retract ON signal BEAN
Combination meter Outer mirror control ECU assembly (front passenger side) Auto electric retract ON signal BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Engine switch signal (IG) BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Engine switch signal (IG) BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Engine switch signal (ACC) BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Engine switch signal (ACC) BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror select switch in the RH position signal BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror select switch in the RH position signal BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror select switch in the LH position signal BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror select switch in the LH position signal BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror adjust switch in the right position BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror adjust switch in the right position BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror adjust switch in the left position BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror adjust switch in the left position BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror adjust switch in the up position BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror adjust switch in the up position BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (driver side) Mirror adjust switch in the down position BEAN
Main body ECU (cowl side junction block RH) Outer mirror control ECU assembly (front passenger side) Mirror adjust switch in the down position BEAN
Position control ECU and switch Outer mirror control ECU assembly (driver side) M1 memory store command BEAN
Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M1 memory store command BEAN
Position control ECU and switch Outer mirror control ECU assembly (driver side) M2 memory store command BEAN
Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M2 memory store command BEAN
Position control ECU and switch Outer mirror control ECU assembly (driver side) M3 memory store command BEAN
Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M3 memory store command BEAN
Position control ECU and switch Outer mirror control ECU assembly (driver side) M1 memory return command BEAN
Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M1 memory return command BEAN
Position control ECU and switch Outer mirror control ECU assembly (driver side) M2 memory return command BEAN
Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M2 memory return command BEAN
Position control ECU and switch Outer mirror control ECU assembly (driver side) M3 memory return command BEAN
Position control ECU and switch Outer mirror control ECU assembly (front passenger side) M3 memory return command BEAN
Outer mirror control ECU assembly (driver side) Position control ECU and switch LH SET switch on signal BEAN
Outer mirror control ECU assembly (driver side) Position control ECU and switch LH M1 switch on signal BEAN
Outer mirror control ECU assembly (driver side) Position control ECU and switch LH M2 switch on signal BEAN
Outer mirror control ECU assembly (driver side) Position control ECU and switch LH M3 switch on signal BEAN
Outer mirror control ECU assembly (front passenger side) Position control ECU and switch RH SET switch on signal BEAN
Outer mirror control ECU assembly (front passenger side) Position control ECU and switch RH M1 switch on signal BEAN
Outer mirror control ECU assembly (front passenger side) Position control ECU and switch RH M2 switch on signal BEAN
Outer mirror control ECU assembly (front passenger side) Position control ECU and switch RH M3 switch on signal BEAN
Main body ECU (cowl side junction block LH) Outer mirror control ECU Assembly LH Back up light switch signal BEAN
Main body ECU (cowl side junction block LH) Outer mirror control ECU Assembly RH Back up light switch signal BEAN
Wind shield wiper switch assembly Air conditioning amplifier assembly Wiper switch condition signal BEAN
Rain sensor Air conditioning amplifier assembly Rain sensor signal BEAN
ECM Outer mirror control ECU Assembly (driver side) Shift position R signal CAN / BEAN
ECM Outer mirror control ECU Assembly (driver side) Shift position R signal CAN / BEAN
