Cold Start Injector Circuit: Wiring Diagram

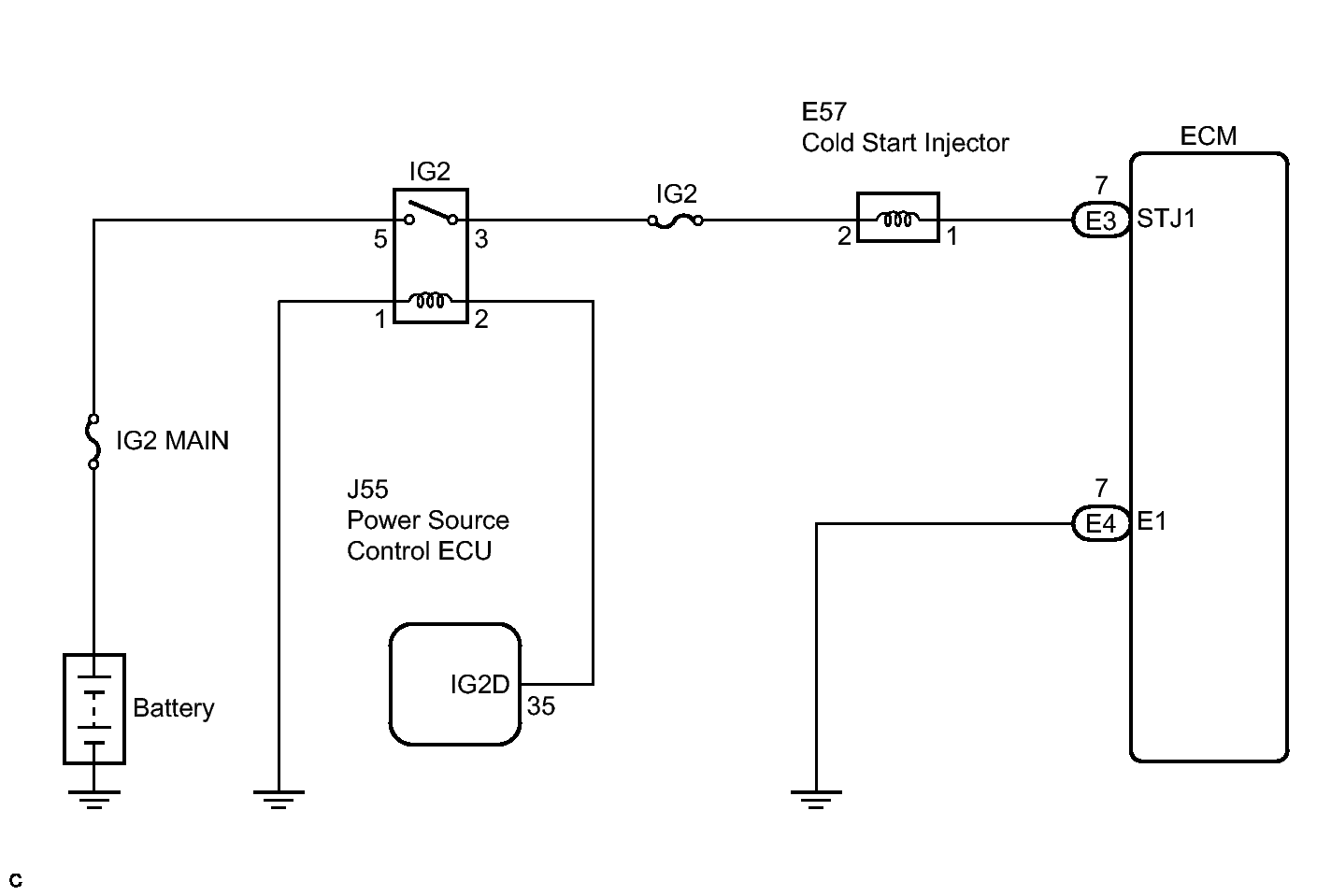

Fig 1: Cold Start Injector Circuit - Wiring Diagram

GTY140669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
