DTC B2312: Power Window Switch Malfunction: Wiring Diagram

for Driver Side

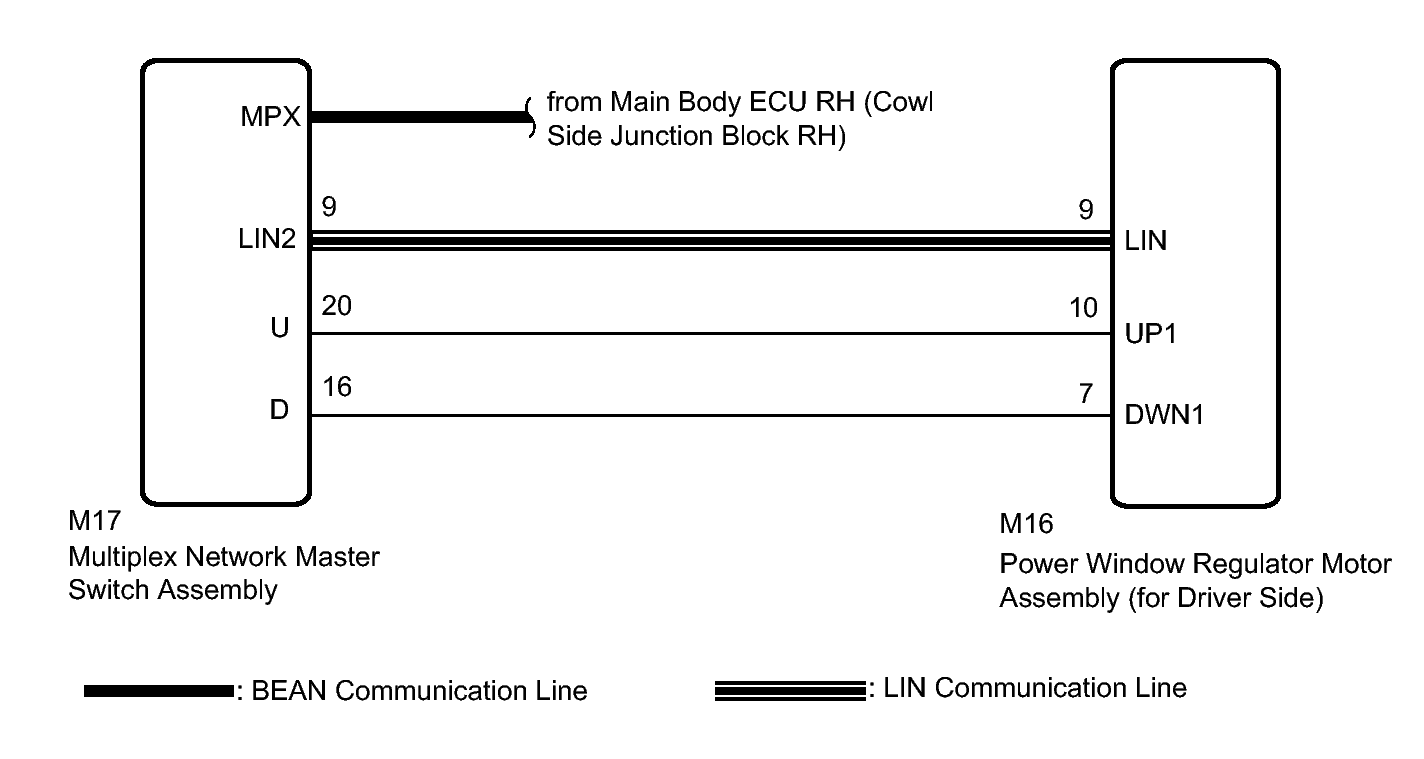

Fig 1: Identifying Power Window Regulator Motor Assembly (Driver Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Front Passenger Side

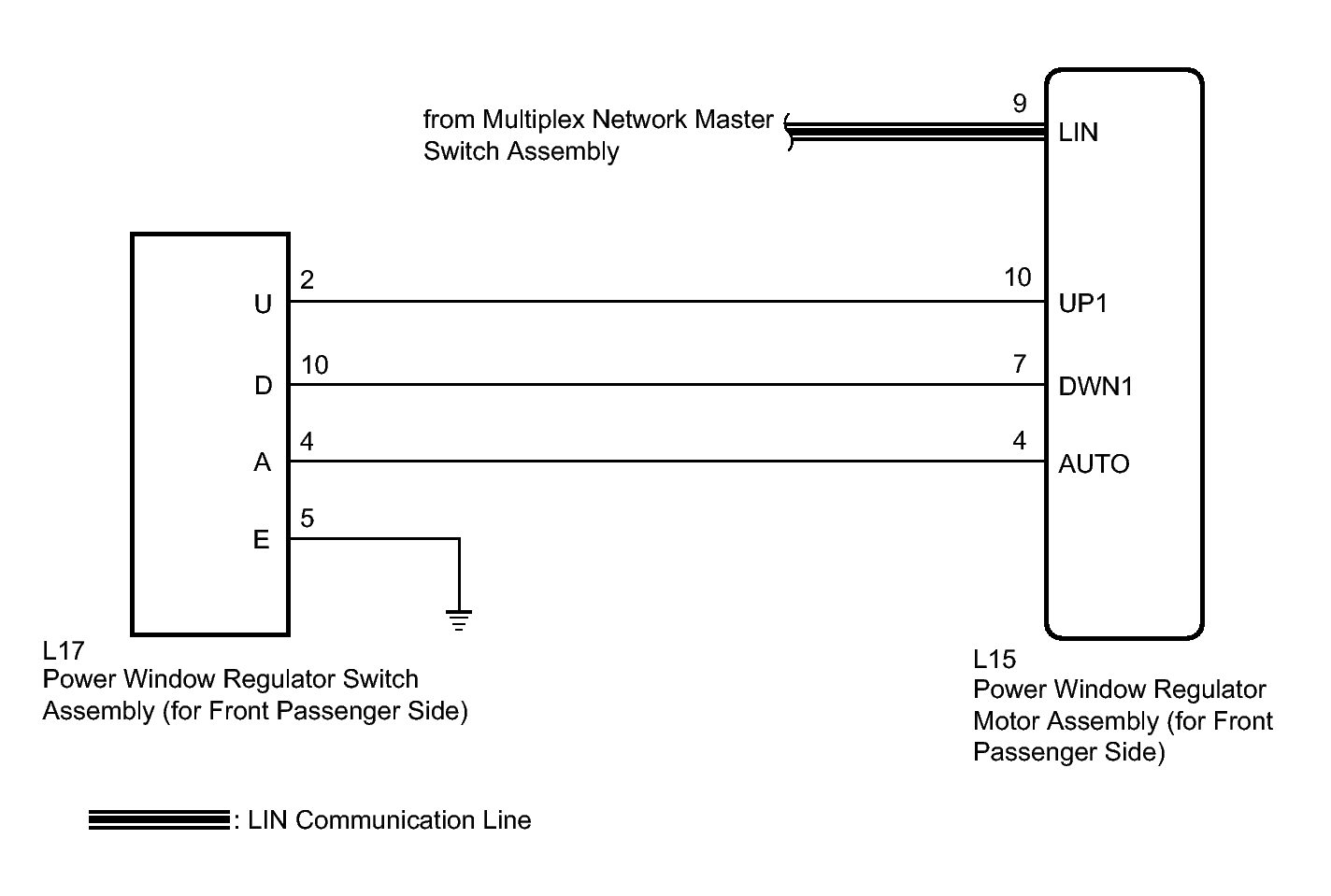

Fig 2: Identifying Power Window Regulator Motor Assembly (Front Passenger Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Rear LH Side

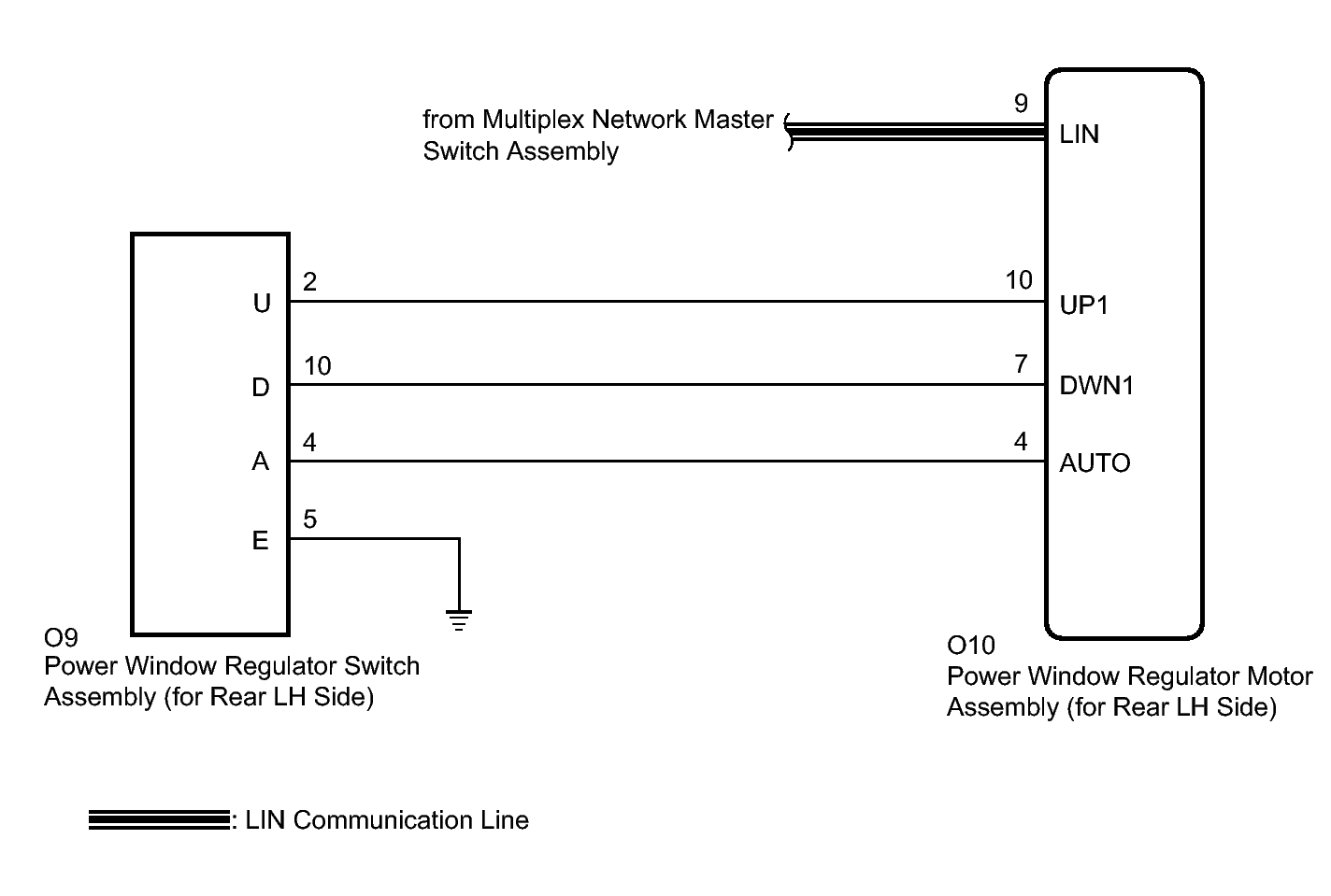

Fig 3: Identifying Power Window Regulator Motor Assembly (Rear LH Side)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for Rear RH Side

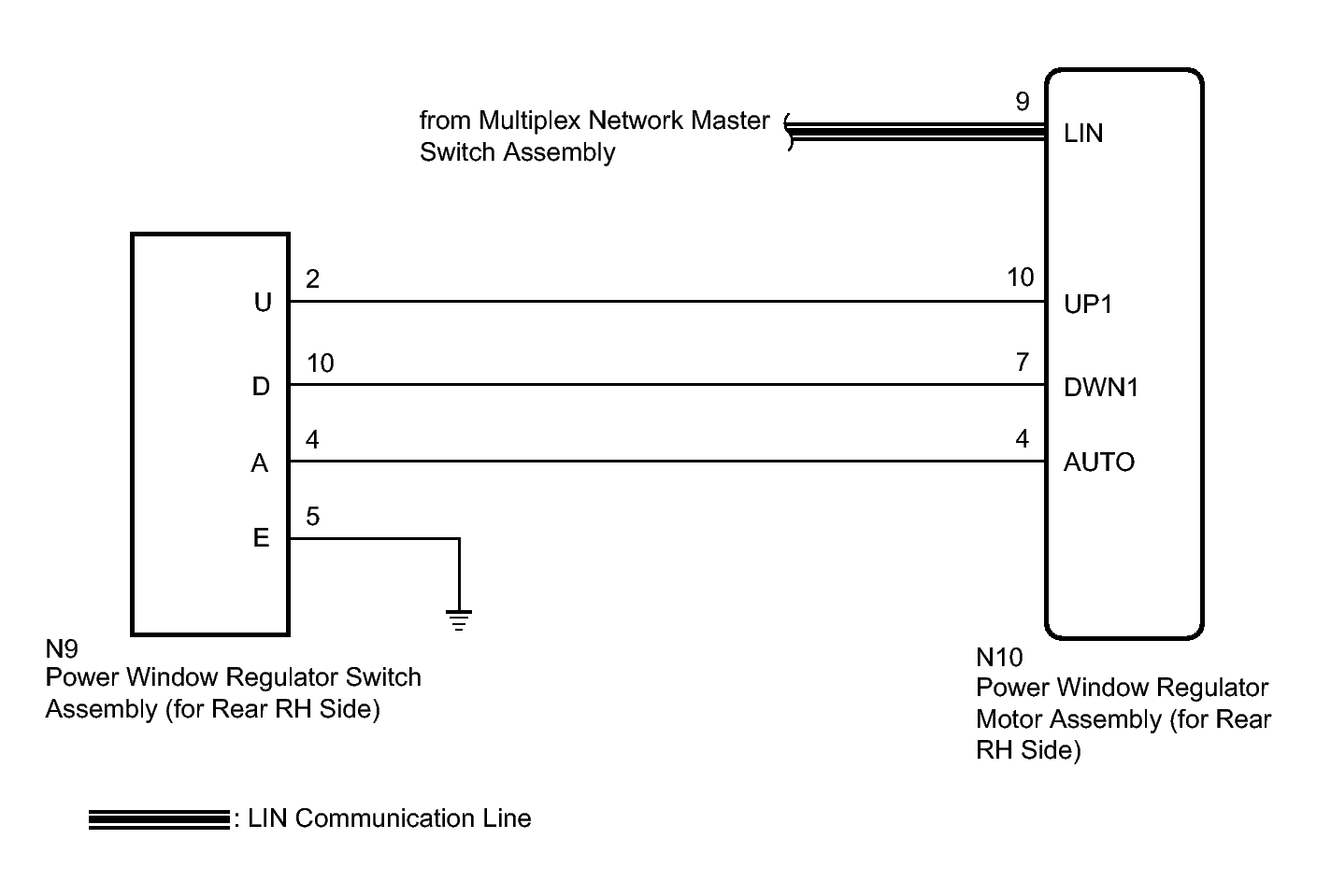

Fig 4: Identifying Power Window Regulator Motor Assembly (Rear RH Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
