Power Seat for Driver's Seat: Notes

WARNING: This page is about a different car, the 2008 Lexus GX 470. However, it is still accessible from the selected car via links, so may be relevant.

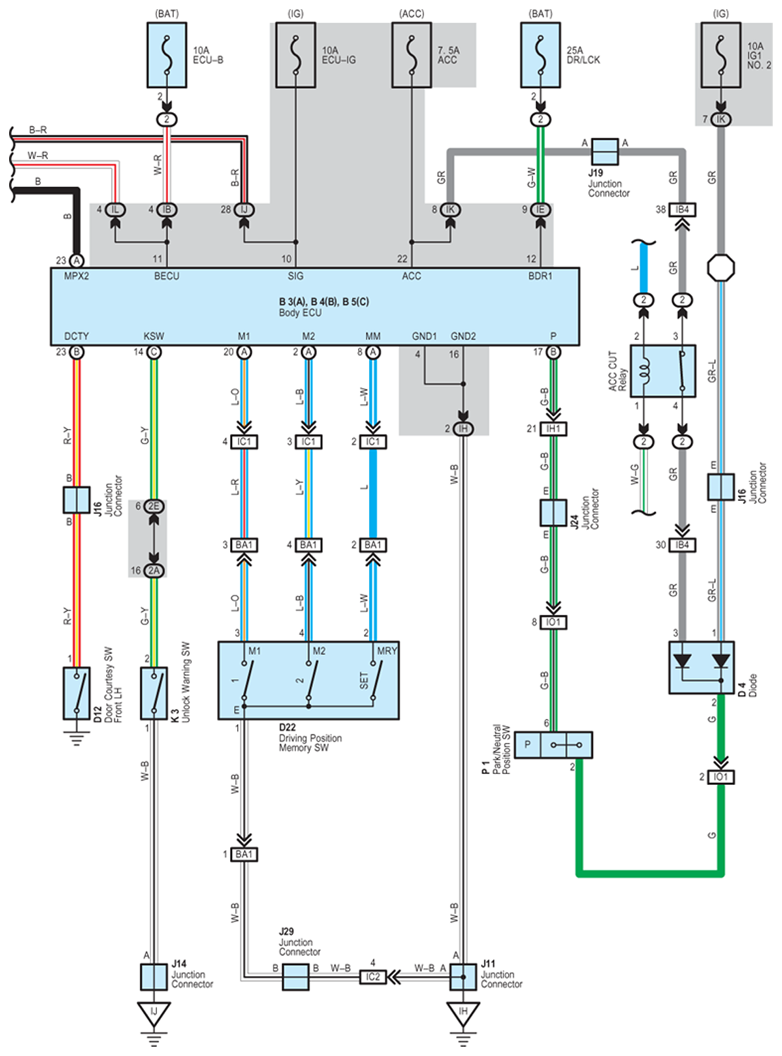

Fig 1: Power Seat For Drivers Seat - Circuit Diagram (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

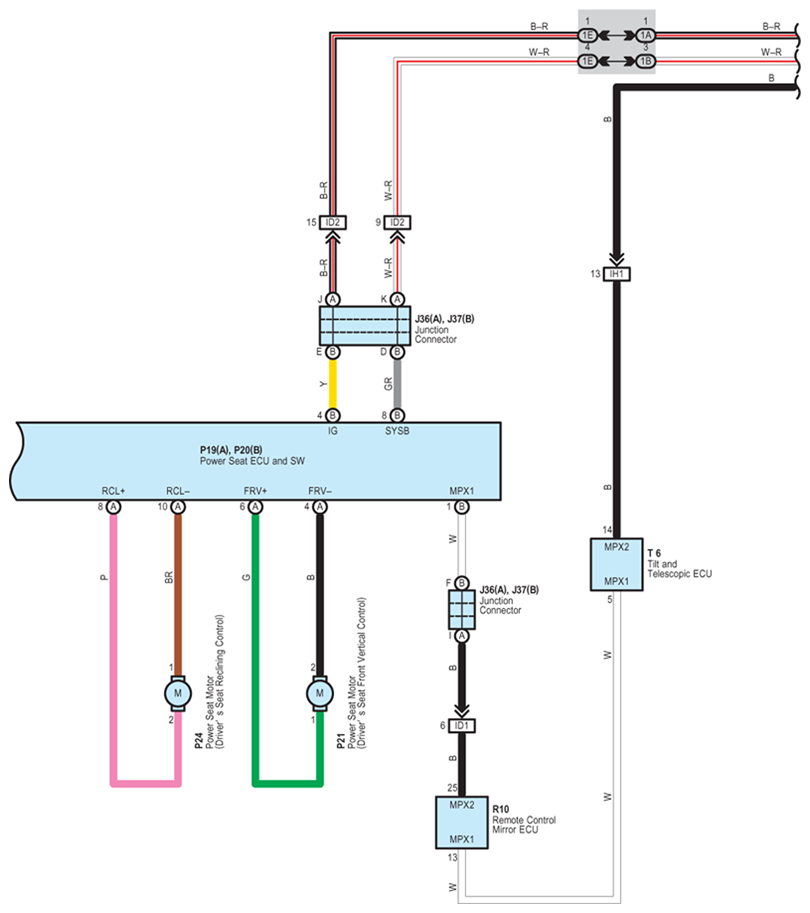

Fig 2: Power Seat For Drivers Seat - Circuit Diagram (2 Of 3)

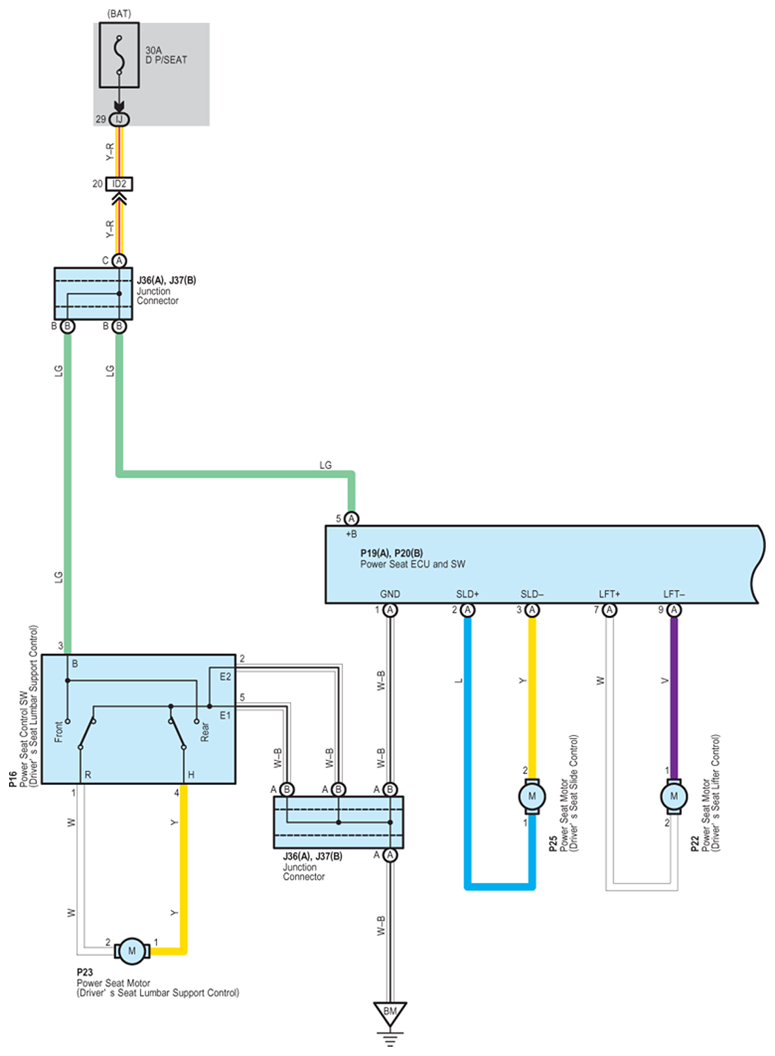

Fig 3: Power Seat For Drivers Seat - Circuit Diagram (3 Of 3)
